5.2 Program Change
Tg0869-PM-OM

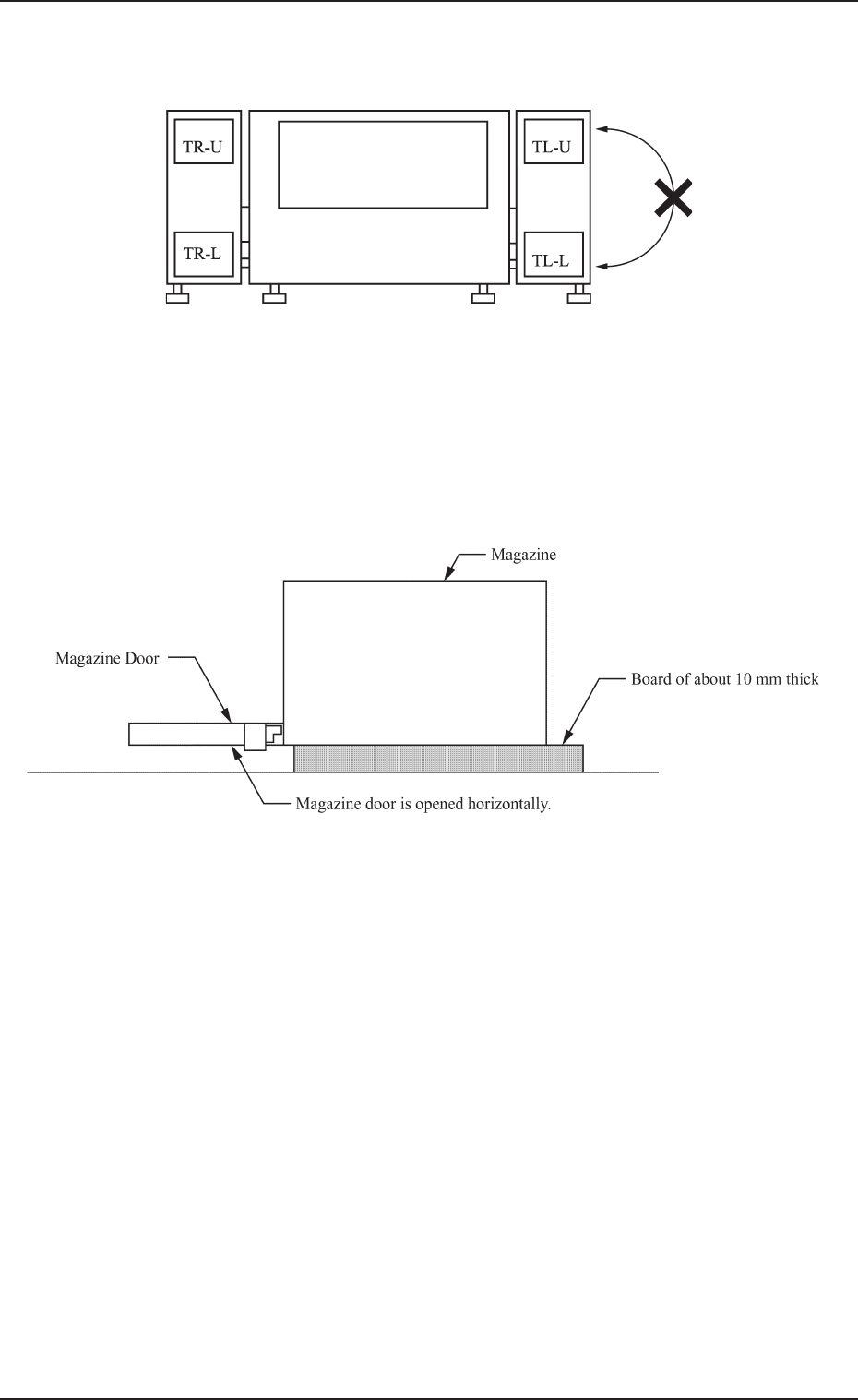

• Do not exchange the upper magazine with the lower magazine or be-
tween the units. It can cause breakdown.
Fig. A35
0305-001 Chapter 1 2-20
• When the magazine door is opened on the tool bench place a board
about 10 mm thick under the magazine so that the magazine door opens
horizontally, then open the magazine door. If the magazine door is
opened without placing such a board, the door can't be opened horizon-
tally.
Fig. A36
5.2 Program Change
Tg0869-PM-OM

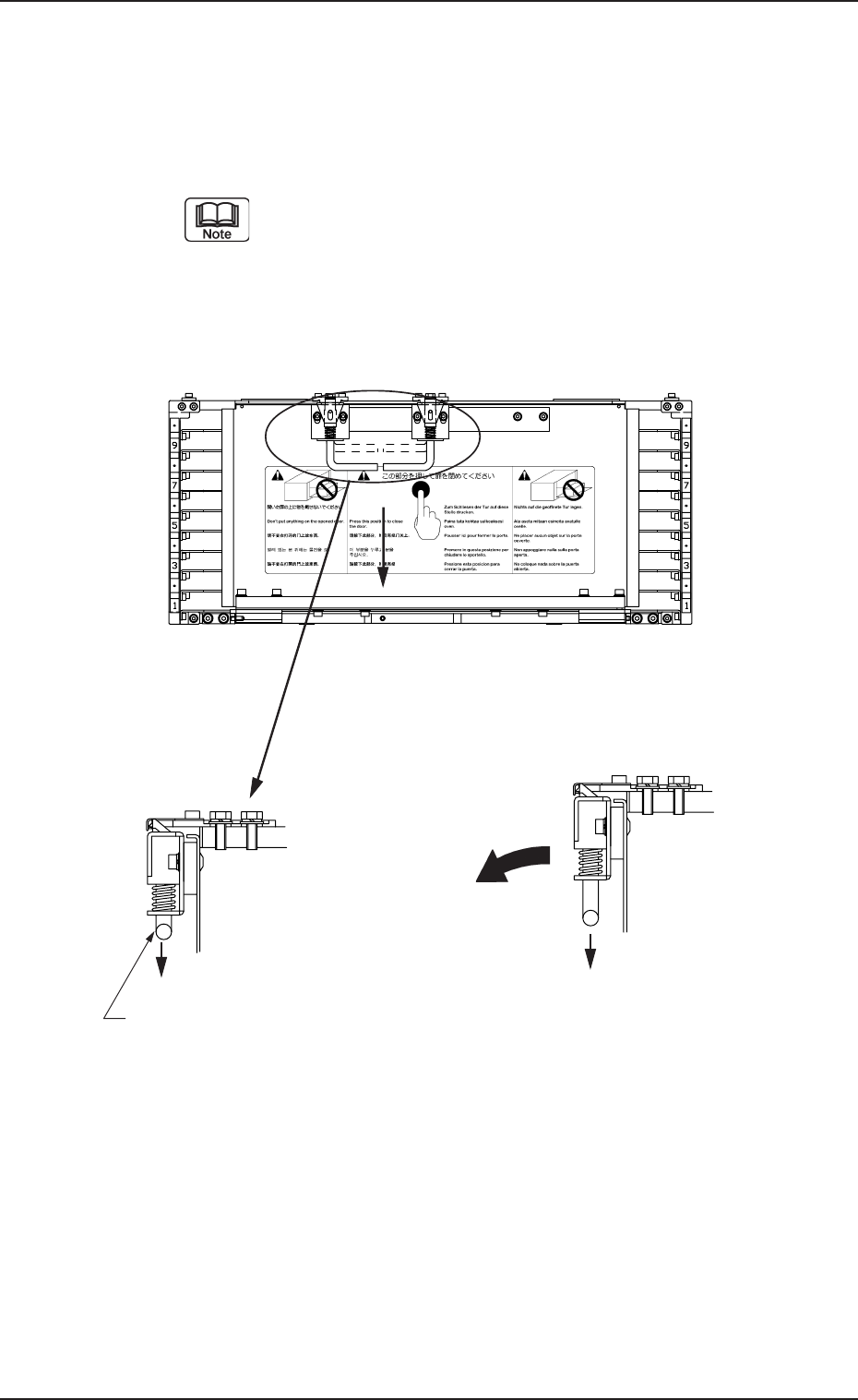

5.2.2.2 Pallet Attachment to Magazine
(1) Push both handles of the magazine door fixture down in direction shown
by an arrow A and release the lock of the magazine door. (Fig. A37 and
Fig. A38, Arrow A)
(2) Open the magazine door. (Fig. A39 Arrow B)
(a) Because the magazine door might become deformed by
impact, open it gently, holding the grip. If operation is
started with a deformed magazine door, it might cause
machine breakdown.
(b) Do not place any thing on the open door or put any pres-
sure on it.
0305-001 Chapter 1 2-21
Fig. A37 How to open the magazine door
A
Fig. A38 Latched Magazine Door Fixture
Fig. A39 Unlatched Magazine Door Fixture
Grip
A
A
B
5.2 Program Change
Tg0869-PM-OM
0305-001 Chapter 1 2-22
When a pallet is set in the magazine, note the direction of the cutout
and do not set the pallet upside down.
(See Figs. A40 and A41.)
When the [U READY] or the [L READY] button is pressed with the pallet
not oriented correctly, the error is detected. However, when the pallet is
inserted upside down, the error is not detected, causing a failure.
The contents of the error are displayed on the operation monitor.
Fig. A41 MG-5050L (For FP-5022L)Fig. A40 MG-5050R (For FP-5022R)
Coutout of Pallet
Side without
Side Plate
Side without
Side Plate
Cutout of Pallet
Side Plate Side
Side Plate Side
Pallet Drawing
Direction
Pallet Drawing
Direction
(3) Set the pallet equipped with a tray in the magazine.
Put the pallet on the partition plate and push it inside.
(4) Press the black circle point shown in the label in Fig. A43 to close the
magazine door.
Fig. A42
Fig. A43
CAUTION
