Tg0869-PM-OM
0305-001 Chapter 1 4-4
When the [ELEVATOR ZEROING] or the [TRAVERSE ZEROING]
key is selected, the elevator shaft or the traverses may not be zeroed,
depending on where the traverses are located.
Fig. A98 shows a “CHECK” display (example) which appears when
the elevator shaft is not zeroed.
In this case, follow the instructions (GUIDANCE TO CAUSE AND
REMEDY) and zero the elevator shaft.
Fig. A98 “CHECK” Display (Example)
2. Zeroing Operation
Tg0869-PM-OM
0305-001 Chapter 1 4-5

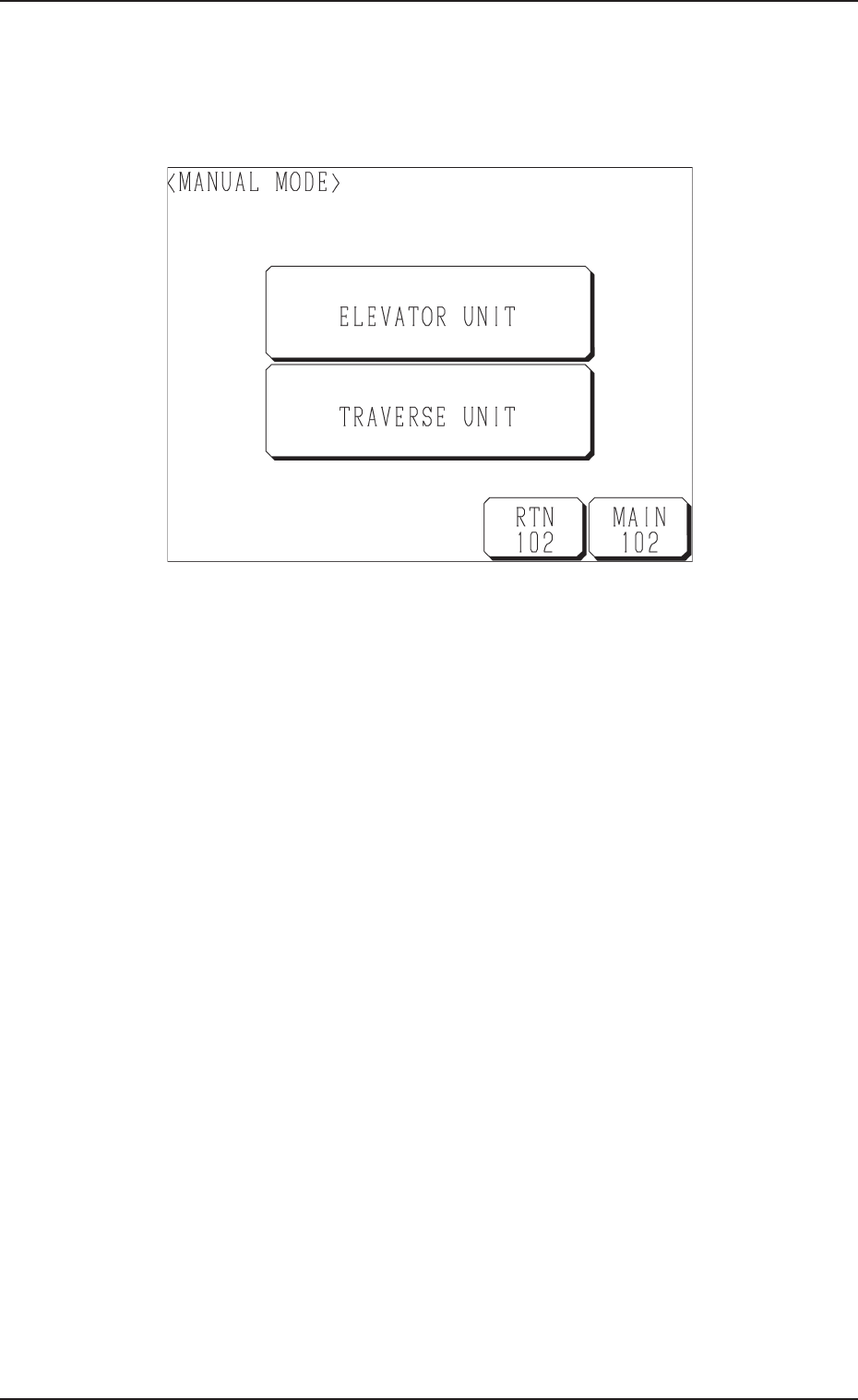

3. MANUAL MODE Display
When the [MANUAL OPERATION] key is pressed at the “LOCAL MODE”
display, the following display appears on the screen.
Fig. A99
• [ELEVATOR UNIT] Key
When this key is pressed, the “ELEVATOR UNIT” display appears on the
screen, enabling the manual operation of the elevator.
• [TRAVERSE UNIT] Key
When this key is pressed, the “TRAVERSE UNIT” display appears on the
screen, enabling the pullout or the storage operation of a pallet from or into
the magazine.
3. MANUAL MODE Display
Tg0869-PM-OM
0305-001 Chapter 1 4-6

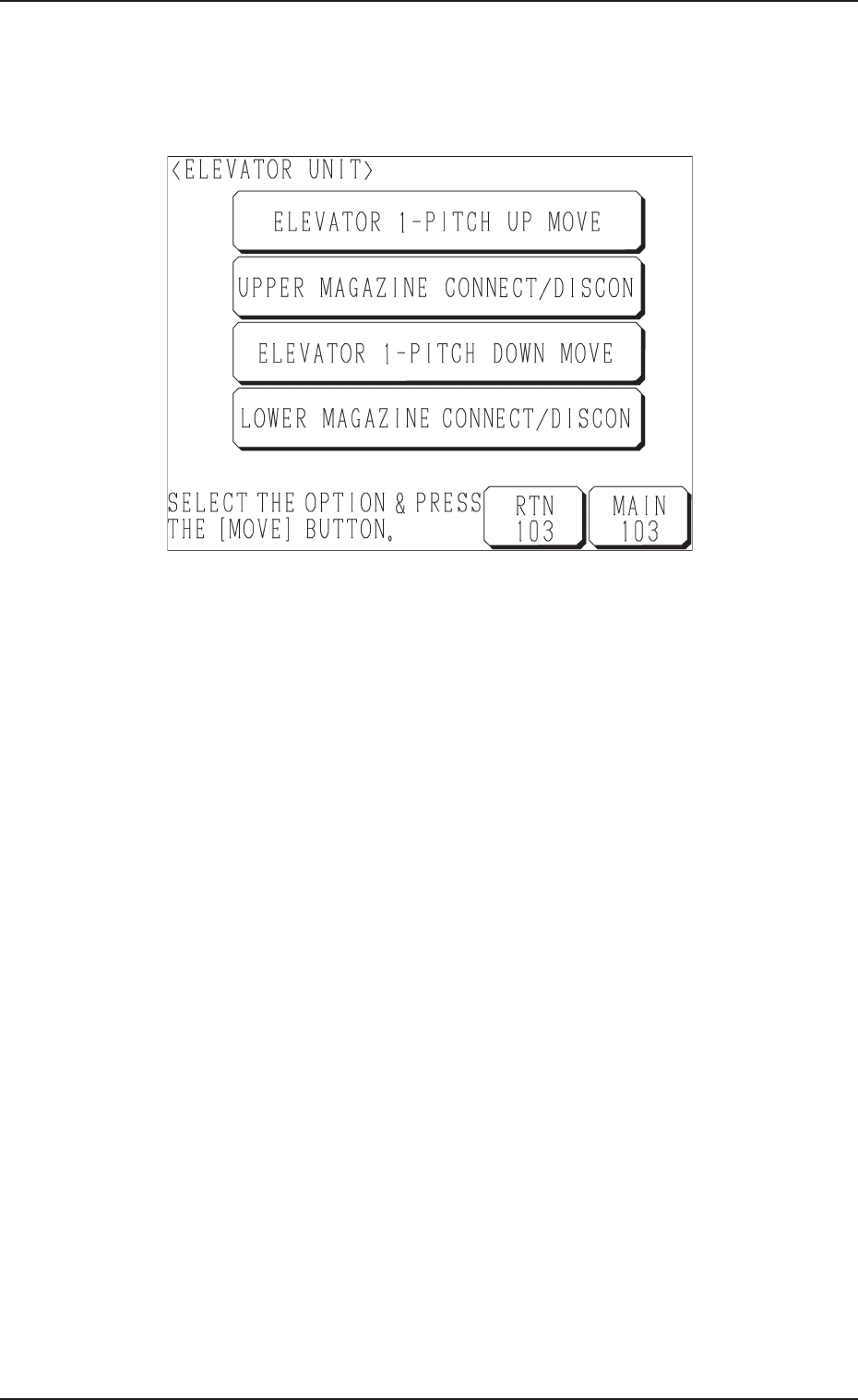

3.1 ELEVATOR UNIT Display
When the [ELEVATOR UNIT] key is pressed at the “MANUAL MODE” dis-
play (Fig. A99), the following display appears on the screen.
Fig. A100
(2) Select the desired key and press the [MOVE] button.
• When the [ELEVATOR 1-PITCH UP MOVE] key is selected, the el-
evator shaft moves up as far as 1 pitch of the pallet.
• When the [UPPER MAGAZINE CONNECT/DISCON] key is selected
with the upper magazine connected to the elevator shaft, the machine
works to separate the magazine from the shaft. When the upper maga-
zine is not connected, the machine works to connect the magazine to
the shaft.
• When the [ELEVATOR 1-PITCH DOWN MOVE] key is selected, the
elevator shaft moves down as far as 1 pitch of the pallet.
• When the [LOWER MAGAZINE CONNECT/DISCON] key is selected
with the lower magazine connected to the elevator shaft, the machine
works to separate the magazine from the shaft. When the lower maga-
zine is not connected, the machine works to connect the magazine to
the shaft.
3.1 ELEVATOR UNIT Display
