Tg0869-PM-OM0305-001 60
8. Safety Switches
When an error is detected in the machine, the safety features are
designed to stop the dangerous moving mechanisms of the
machine. Everything is processed on the machine side (hardware)
without using any software application on the computer side.
8.1 [EMERGENCY STOP] Buttons
The multi-layer tray feeders are not provided with any emergency
stop button.
The emergency stop buttons of the main machine are commonly
used for these feeders. Press any one of the [EMERGENCY STOP]
buttons of the main machine to stop the machine immediately in an
emergency.
The power is turned off and the machine stops immediately.
(Front View) (Side B) (Rear View) (Side A)
[EMERGENCY STOP]
Button (2) SPB52
[EMERGENCY STOP] Button (4) SPB54[EMERGENCY STOP] Button (1) SPB51
[EMERGENCY STOP]
Button (3) SPB53
8. Safety Switches
Tg0869-PM-OM0305-001 61
Switch Name
Symbol Countermeasures
[EMERGENCY STOP]
Button (1) (Front Side)
[EMERGENCY STOP]
Button (2) (Front Side)
[EMERGENCY STOP]
Button (3) (Rear Side)
[EMERGENCY STOP]
Button (4) (Rear Side)
Pressing one of the [EMERGENCY STOP] buttons cuts
power to the following modules.
• The load power is shut off.
• Power to the motors excluding those for the vacuum
pump, the cooling fan, and the nozzle rotational shaft
(power to the motors for tape feed in the feeder base,
the traverse shaft, and the tray feeder elevator shaft is
shut off in 1 second after the [EMERGENCY STOP]
button is pressed.)
• 24 V Load Power in Solenoid Valve System of Main
Machine
(Excluding the solenoid valve for component picks, the
solenoid for the supply cover electromagnetic lock, the
solenoid for the safety bar electromagnetic lock, the
solenoid valve for tape feed, and the control power
sources such as those for the sensors, etc.)
SPB51
SPB52
SPB53
SPB54
8.1 [EMERGENCY STOP] Buttons
Tg0869-PM-OM

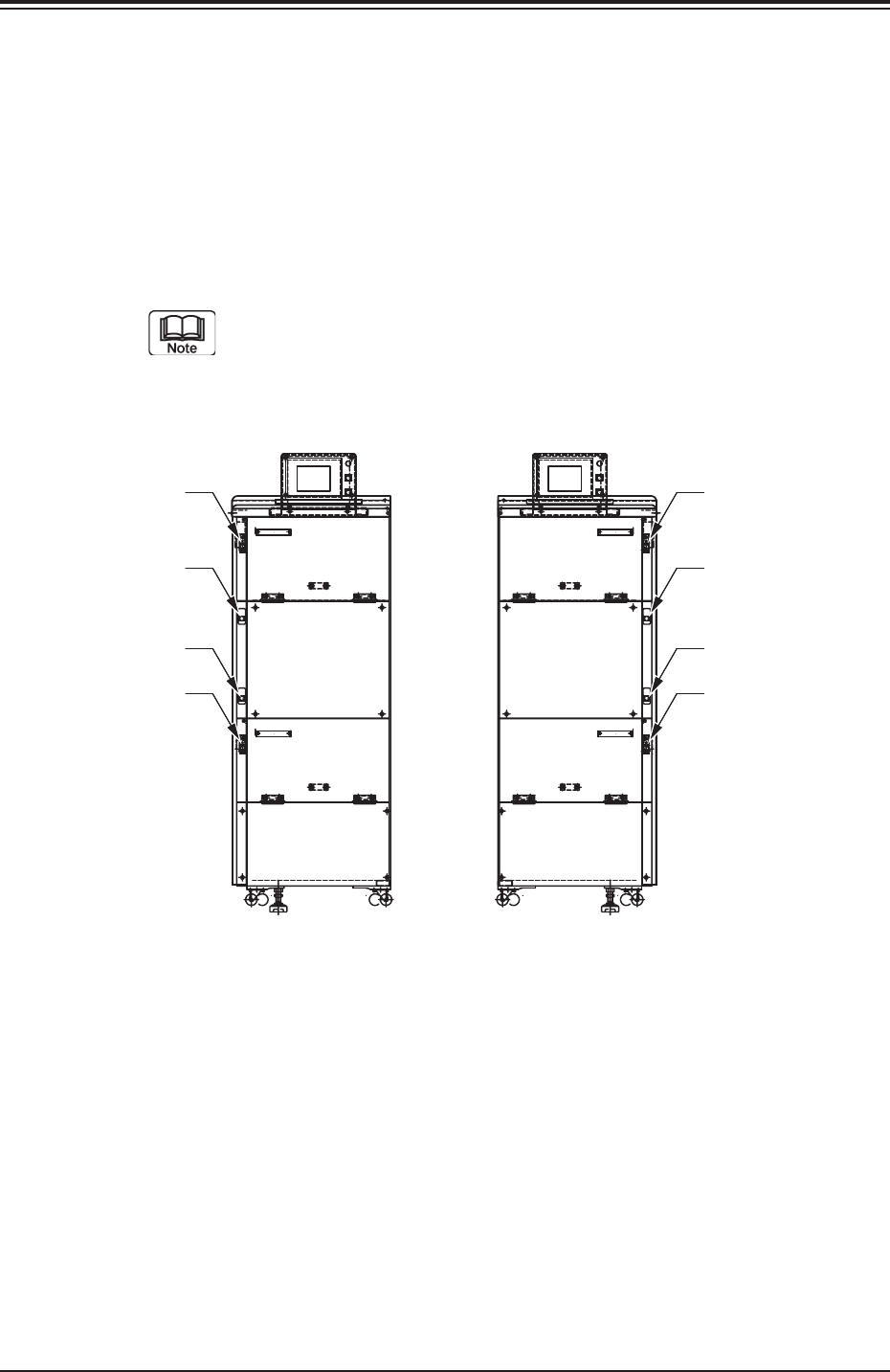

8.2 Door Check Switches
When the LED of the [U READY] or the [L READY] button is ON, the
door on the pertinent side is electromagnetically locked, making it
impossible to open.
When the LED of the [U READY] or the [L READY] button is OFF,
the electromagnetic lock of the door on the pertinent side is un-
locked.
When a magazine is separated from the elevator shaft, the
power to the elevator shaft is kept supplied because danger
decreases.
FP-5022R FP-5022L
0305-001 62
8.2 Door Check Switches
[UPPER DOOR ELEC-
TROMAGNETIC LOCK]
Switch-SQ501
[LOWER DOOR ELEC-
TROMAGNETIC LOCK]
Switch-SQ502
[U READY] Button
[L READY] Button
[UPPER DOOR ELEC-
TROMAGNETIC LOCK]
Switch-SQ501
[LOWER DOOR ELEC-
TROMAGNETIC LOCK]
Switch-SQ502
[U READY] Button
[L READY] Button
