DANGER

5. Detachment and Attachment of Center Cover

• When the center cover of multi-layer tray

feeder is detached, the load power is shut

off.

• Do not supply power to the machine or per-

form any operations with the center cover be-

ing detached.

5.1 Detachment

(1) Zero the multi-layer tray feeder.

Refer to “2. Zeroing Operation of Section 4 in Chapter 1” for details.

(2) Separate the upper and lower magazines from the elevator shaft.

Refer to “3.1 ELEVATOR UNIT Display of Section 4 in Chapter 1” for

details.

(3) Remove the setscrews (4 locations) fastening the center cover with a

Phillips-type screwdriver. (See Fig. D3.)

The center cover can be detached.

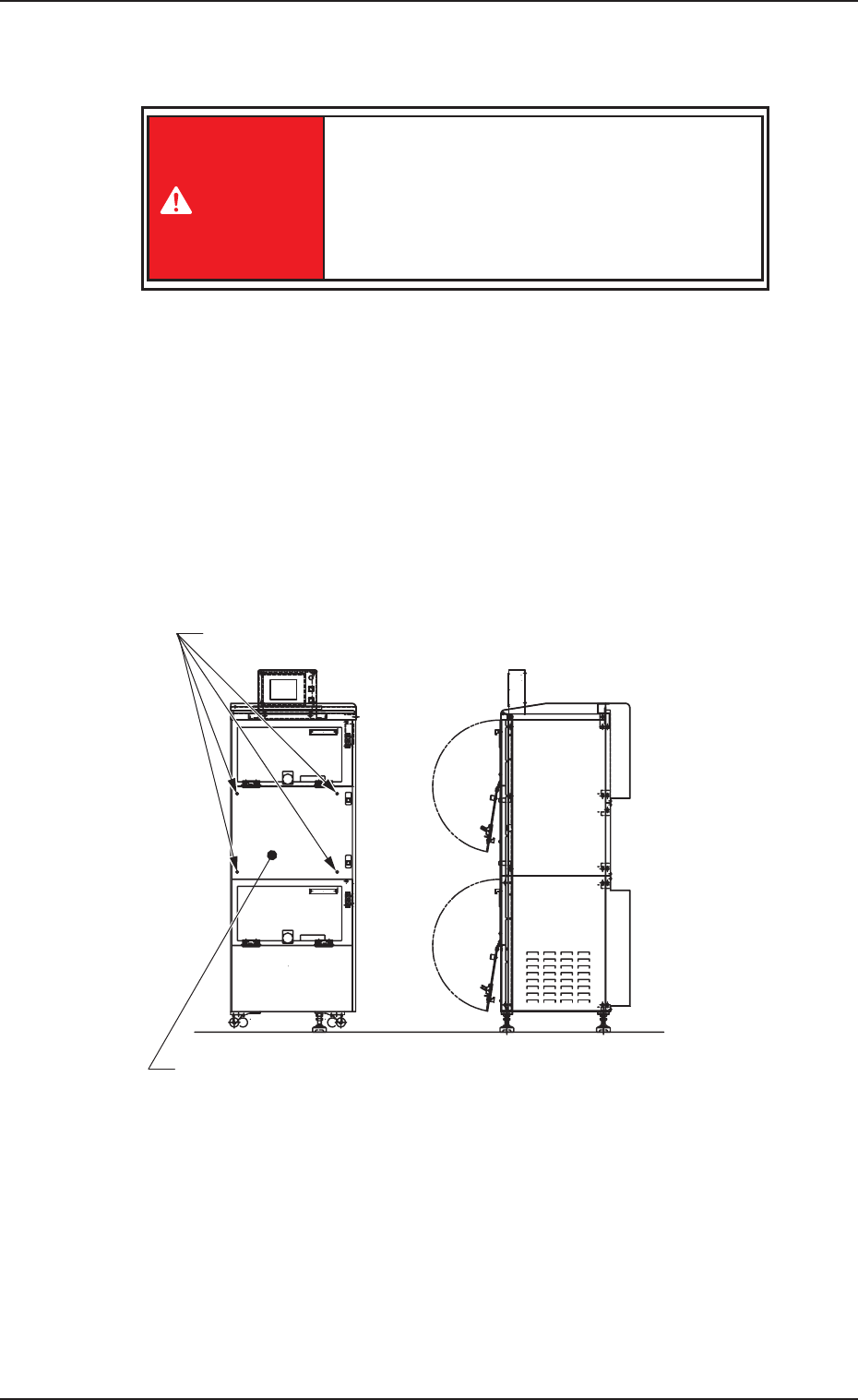

Fig. D3 FP-5022L (Same to “FP-5022R”)

5.2 Attachment

(1) Align the screw holes of the center cover with the screw holes of the

multi-layer tray feeder.

(2) Hold the center cover in position and fasten it securely with setscrews

(4 locations), using a Phillips-type screwdriver.

5. Detachment and Attachment of Center Cover

Setscrews fastening the center cover (4 locations)

Center Cover

0305-001

Chapter 4 1-6 Tg0869-PM-OM0305-001

Chapter 5

This chapter covers the air piping and electrical circuit dia-

grams, etc.
