1. Precautionary Items

1.1 Touch Screen

• The touch screen is constructed of a liquid crystal display (resolution: 320 ×

240 dots) and a touch screen.

The touch screen senses the placement of a user’s finger. To enter data or

select various data, press your finger slightly against the touch-sensitive re-

gions of the touch screen.

• The touch screen is made of glass.

Do not apply strong pressure to the touch screen. Try not to touch the screen

except for input operations.

The touch screen reacts to the force of 0.98 N (100 gf) or less.

Do not press the screen with an excessive force.

The surface of the touch screen is fragile. Do

not rub the surface not touch it with a pen, a

screwdriver, etc.

The device is not a water-proof and encapsu-

lated type.

Avoid dust, water droplet, oil droplet, and metal

pieces.

Especially, when metal pieces or combustible

material are mixed into the machine, it may

lead to fire ignition.

• A high-voltage current is flowing in some internal sections.

Do not detach nor disassemble the touch

screen to avoid any electric shock.

• Cleaning of Touch Screen

Turn off the operation power before the touch

screen is cleaned.

Cleaning the screen while it is active may cause

adverse reaction of the screen, resulting in data cor-

ruption.

When the surface of the touch screen is stained, wipe off dust and dirt with a

dry cloth.

If the surface still remains dirty, soak the cloth in diluted neutral detergent

(2%), wring it hard, then wipe off the dust and dirt.

Do not use alcohol or benzene to clean the

touch screen.

Otherwise, the surface of the touch screen may melt

or get cloudy.

1. Precautionary Items

0305-001 Chapter 1 2-2 Tg0869-PM-OM

CAUTION

2. INITIALIZATION Display

When the main machine is powered up, power is also supplied to the multi-

layer tray feeders.

Then, the display (Fig. A11) appears on the touch screen of the multi-layer

tray feeder.

Fig. A11 “INITIALIZATION” Display

2. INITIALIZATION Display

0305-001 Chapter 1 2-3 Tg0869-PM-OM

2. INITIALIZATION Display

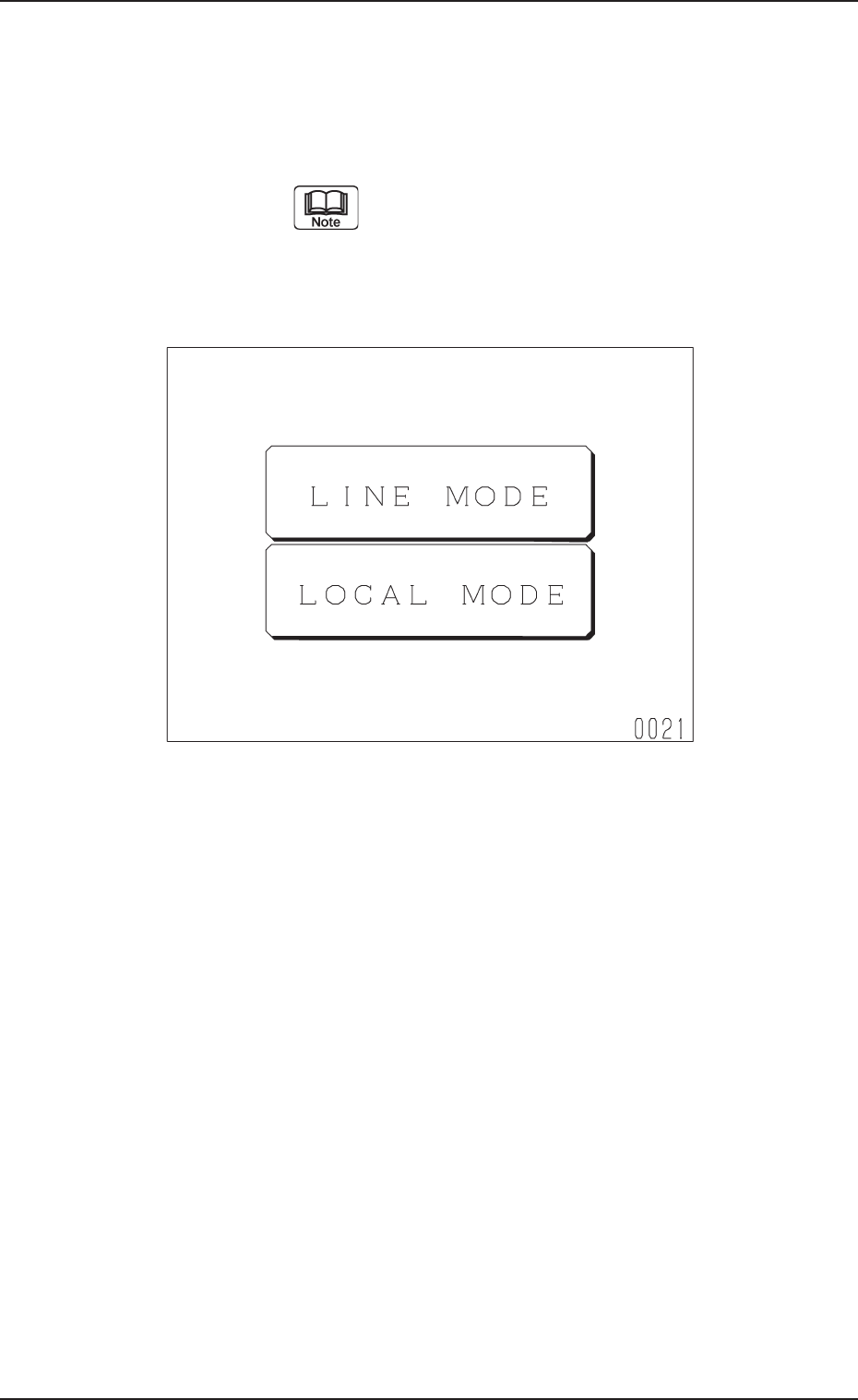

Fig. A12 Neutral Mode (Display for Mode Selection)

0305-001 Chapter 1 2-4

Tg0869-PM-OM

When the initialization is completed, the display (Fig. A12) appears on the screen.

Shown in Fig. A12 is the condition called “Neutral Mode”.

When “LINE MODE” or “LOCAL MODE” is selected at this display, the corre-

sponding display appears on the screen.

[LINE MODE] Key : When this key is selected, the main machine issues a com-

mand to set the feeder in the “LINE” mode.

Automatic operation cannot be performed unless

the feeder is set in the “LINE” mode.

[LOCAL MODE] Key : Only the multi-layer tray feeder can be operated.

This mode is provided for performance check, etc., of the

multi-layer tray feeder.
