Pallet (MP-5050) can be used for two types of magazines (MG-5050L and MG-5050R) by changing the right and left direction. 4.2 Rough V iew 4.2 Rough View Fig. A2 Multi-Layer T ray Feeder (FP-5022L) Fig. A3 Magazine (MG-50…
P.C.B.
4. Structure and Names

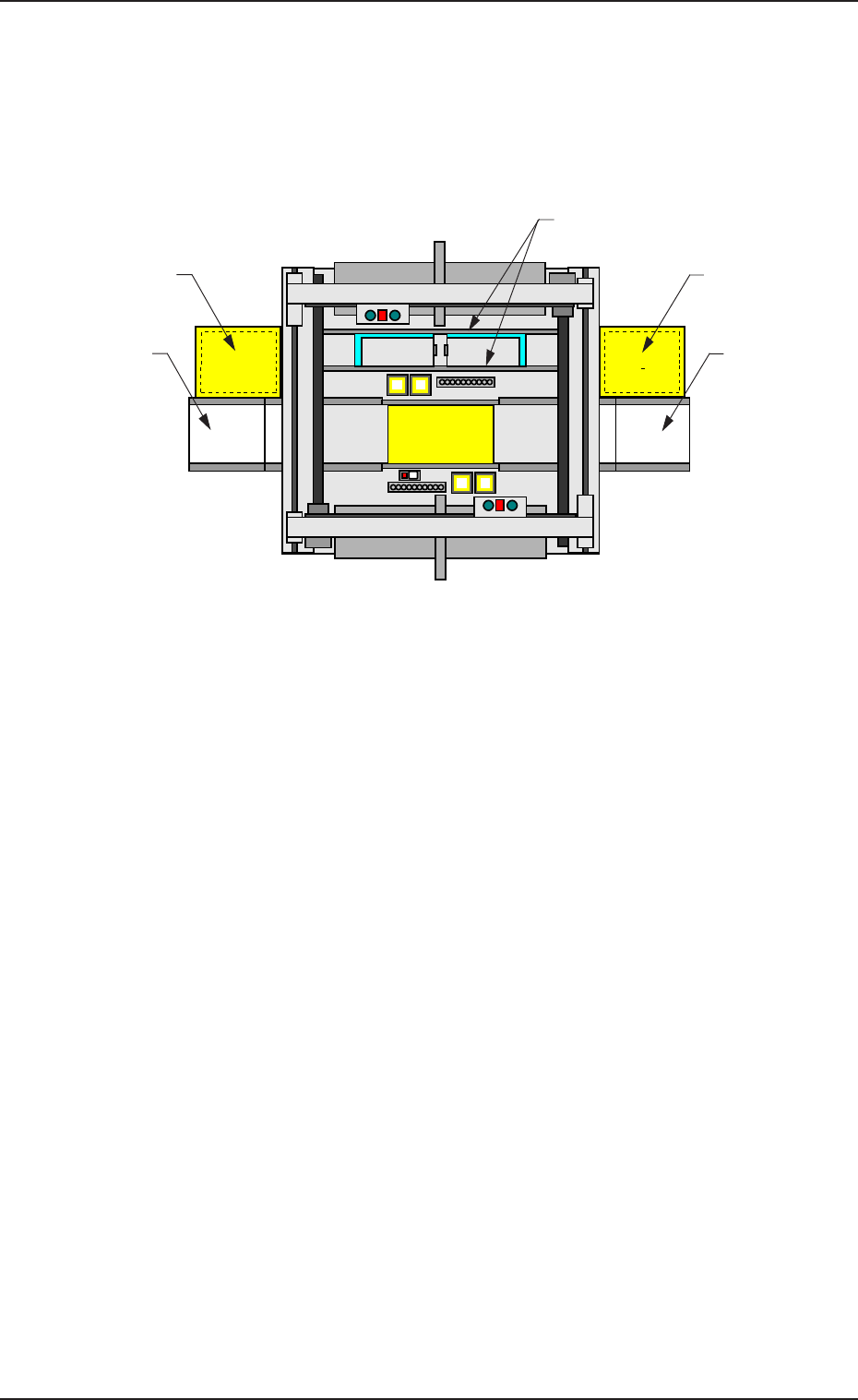

4.1 Place for Multi-Layer Tray Feeder Installation
4. Structure and Names
Beam B Side
(Front Side of Machine)
Fig. A1
Beam A Side
ER Conveyor
(Option)
Multi-Layer Tray Feeder
FP-5022L
EL Conveyor
(Option)
Multi-Layer Tray
Feeder
FP-5022R
Traverse
0305-001 Chapter 1 1-7 Tg0869-PM-OM
Pallet (MP-5050) can be used for two types of magazines (MG-5050L and
MG-5050R) by changing the right and left direction.
4.2 Rough View
4.2 Rough View

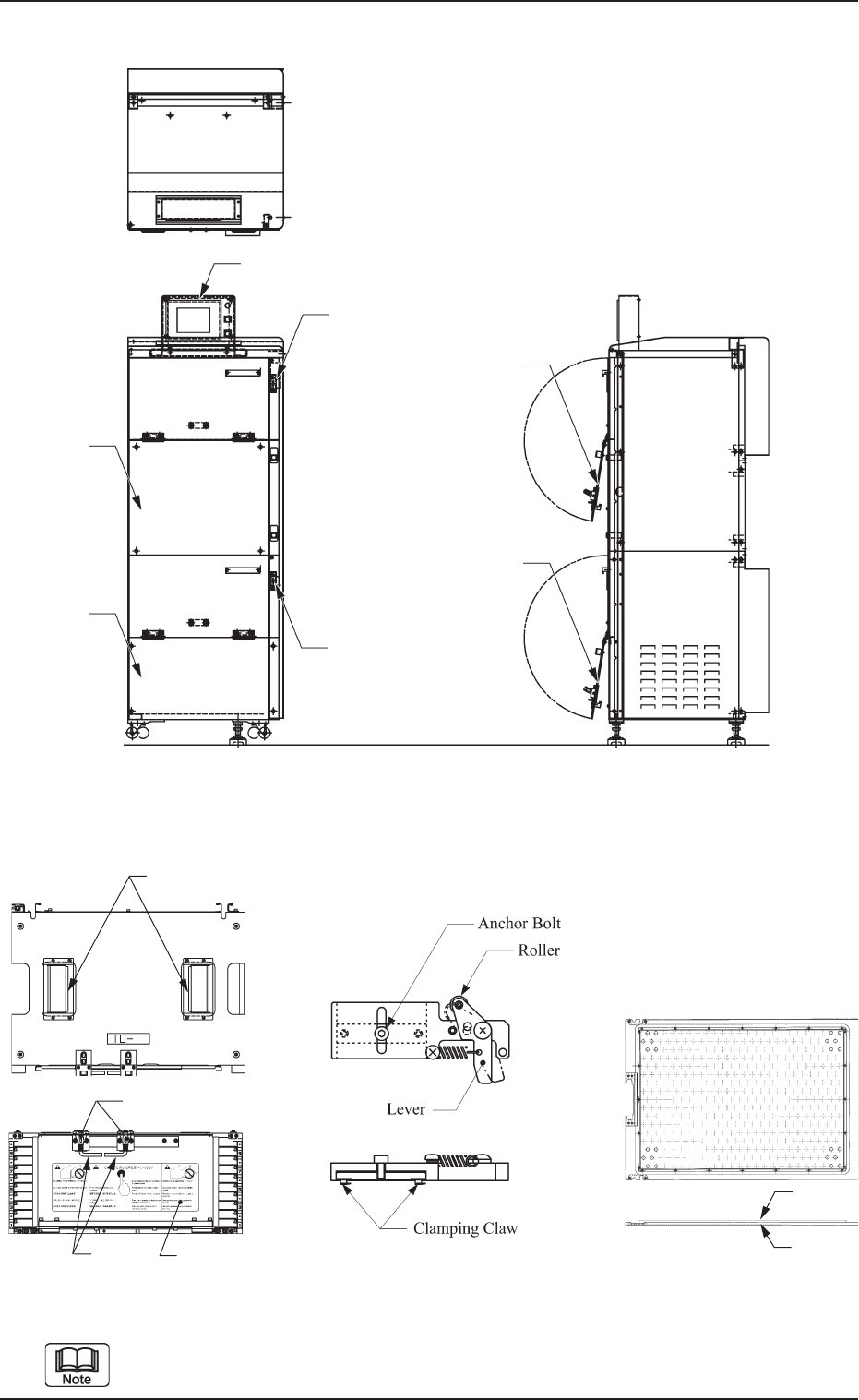

Fig. A2 Multi-Layer Tray Feeder (FP-5022L)
Fig. A3 Magazine
(MG-5050L)
Fig. A4 Tray Fixing Metal
(MF-5050L)
Fig. A5 Pallet
(MP-5050)
Operation Monitor
(Touch Screen)
[UPPER DOOR
ELECTROMAGNETIC
LOCK] Switch
Upper
Door
Lower
Door
Center Cover
Lower Cover
[LOWER DOOR
ELECTROMAGNETIC
LOCK] Switch
Front
Back
Grips of Magazine
Magazine Door Fixture
Grip
0305-001 Chapter 1 1-8 Tg0869-PM-OM
Magazine Door
Fig. A8 Tray Fixing Metal (MF-5050R)
4.2 Rough View

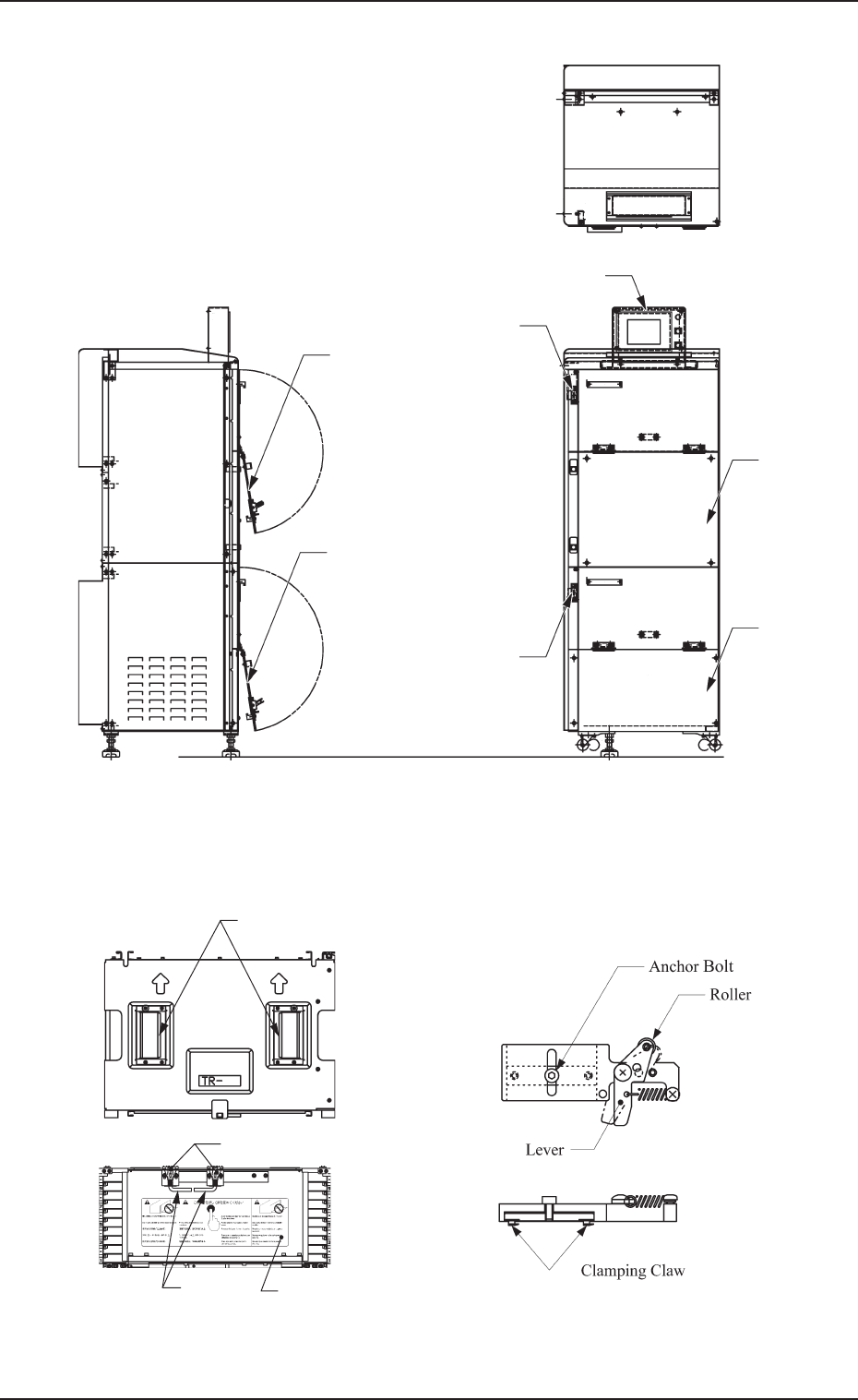

Fig. A6 Multi-Layer Tray Feeder (FP-5022R)
Fig. A7 Magazine (MG-5050R)
Grips of Magazine
Magazine Door Fixture
Grip
0305-001 Chapter 1 1-9 Tg0869-PM-OM
Magazine Door
Operation Monitor (Touch Screen)
[UPPER DOOR
ELECTROMAG-
NETIC LOCK]
Switch
Center Cover
Lower Cover
Upper
Door
Lower Door
[LOWER DOOR
ELECTROMAGNETIC
LOCK] Switch
