Fig. A22 5.1 Preparation (Outline) for Pattern Program 5.1.2.4 Automatic Offset X Setting Refer to “2.5.6 OFFSET X AUTO SETTING Display (Option) of Section 2 in V olume 2” and “4.5.5 OFFSET X AUTO SETTING Display (Option…
5.1.2.3 Tray (L) Operation Data
Refer to “2.5.5 TRAY (L) OPERATION DATA Display (Option) of Section 2
in Volume 2” and “4.5.4 Editing of Tray (L) or (R) Operation Data (Option) of
Section 2 in Volume 2” in the main machine instruction manual for details.
(1) When the [TRAY (L) OPN DATA] key is pressed at the display (Fig.
A19), the display (Fig. A21) appears on the screen.
• Set an operation mode.
Fig. A21
5.1 Preparation (Outline) for Pattern Program
0305-001 Chapter 1 2-11 Tg0869-PM-OM
Fig. A22
5.1 Preparation (Outline) for Pattern Program
5.1.2.4 Automatic Offset X Setting
Refer to “2.5.6 OFFSET X AUTO SETTING Display (Option) of Section 2 in
Volume 2” and “4.5.5 OFFSET X AUTO SETTING Display (Option) of Sec-
tion 2 in Volume 2” in the main machine instruction manual for details.
(1) When the [OFFSET X AUTO SET] key is pressed at the display (Fig.
A19), the display (Fig. A22) appears on the screen.
• The offset values for the tray position offset “X (mm)” can be set for
each individual tray by selecting either the [AUTO (LEFT)] or the
[AUTO (RIGHT)] key.
• When the [SELECT ALL STEP] key is selected and either the [AUTO
(LEFT)] or the [AUTO (RIGHT)] key is pressed, the left or right offset
values X in all steps can be set automatically.
0305-001 Chapter 1 2-12
Tg0869-PM-OM
5.1.3 Magazine Alternate Function
Refer to “2.5.5 TRAY (L) OPERATION DATA Display of Section 2 in Vol-
ume 2” and “4.5.4 Editing of Tray (L) or (R) Operation Data of Section 2 in
Volume 2” in the main machine instruction manual for details.
• When this function is used, components can be supplied during automatic
operation without stopping the machine.
The magazine alternate function can be set on the main machine side.

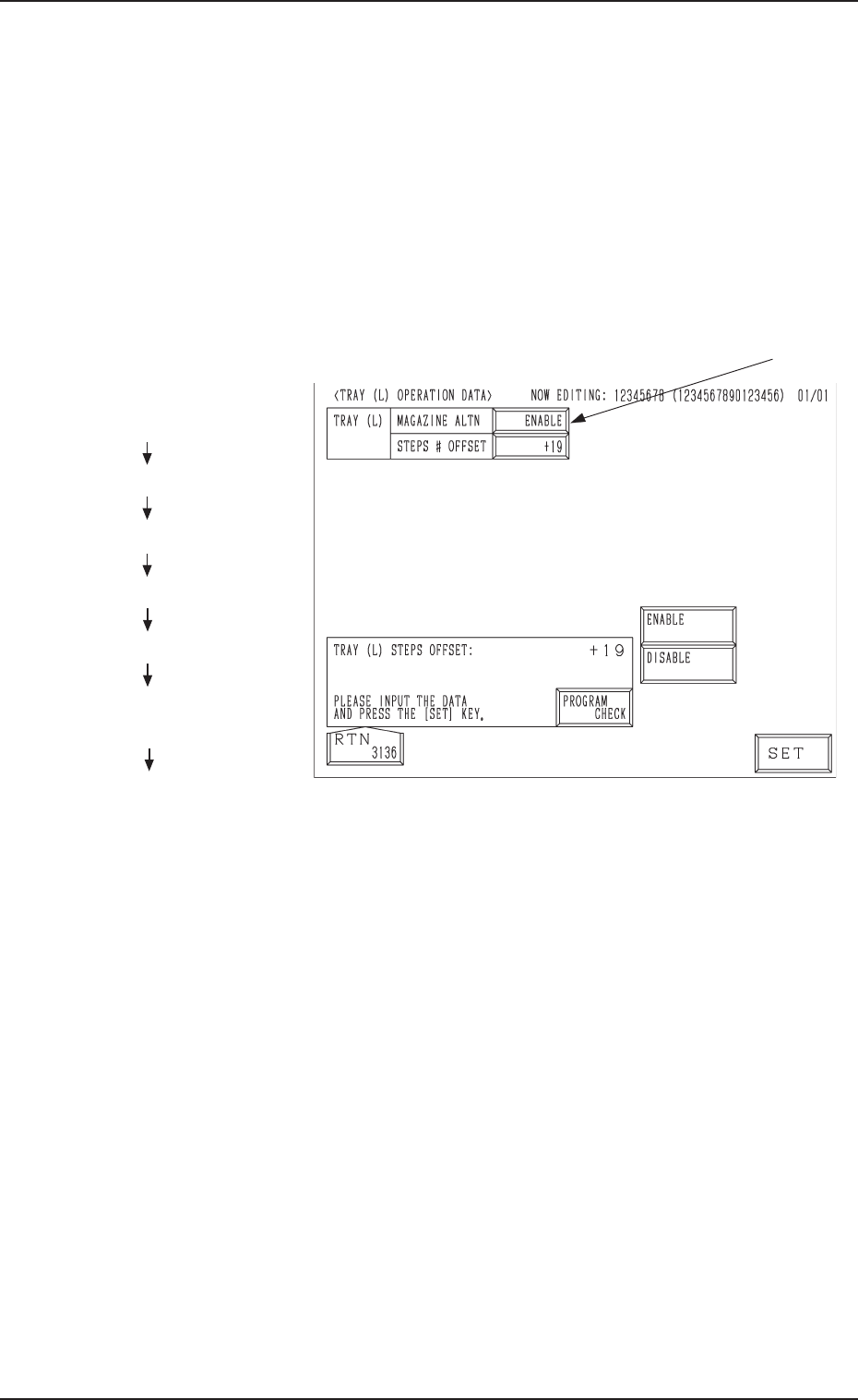

(1) When the [TRAY (L) OPN DATA] key is pressed at the “TRAY (L) STEPS
INFORMATION” or the “TRAY (R) STEPS INFORMATION” display,
the following display appears on the screen.
(2) Press the “MAGAZINE ALTN” data box (*1) to select “ENABLE” or
“DISABLE” to determine whether or not the magazine alternate function
should be used.
ENABLE : The magazine alternate function becomes valid.
DISABLE : The magazine alternate function does not work.
Hierarchical Sequence
(Display)
“MAIN MENU”
“DATA EDIT”
“PATTERN PROGRAM”
“PATTERN PROGRAM EDIT”
“COMPONENT DATA -TRAY-”
“TRAY (L) STEPS
INFORMATION”
“TRAY (L) OPERATION DATA”
5.1 Preparation (Outline) for Pattern Program
*1
Fig. A23
0305-001 Chapter 1 2-13
Tg0869-PM-OM
