0305-001 Chapter 1 3-1

Tg0869-PM-OM

Section 3

LINE Mode Menu

Tg0869-PM-OM

0305-001 Chapter 1 3-2

1. LINE Mode

(1) When the [LINE MODE] key is pressed at the “NEUTRAL MODE”

display (Fig. A82), either one of the displays (Figs. A83 and A84) ap-

pears on the screen.

Fig. A83 FP-5022R Fig. A84 FP-5022L

Fig. A82

1. LINE Mode

Tg0869-PM-OM

0305-001 Chapter 1 3-3

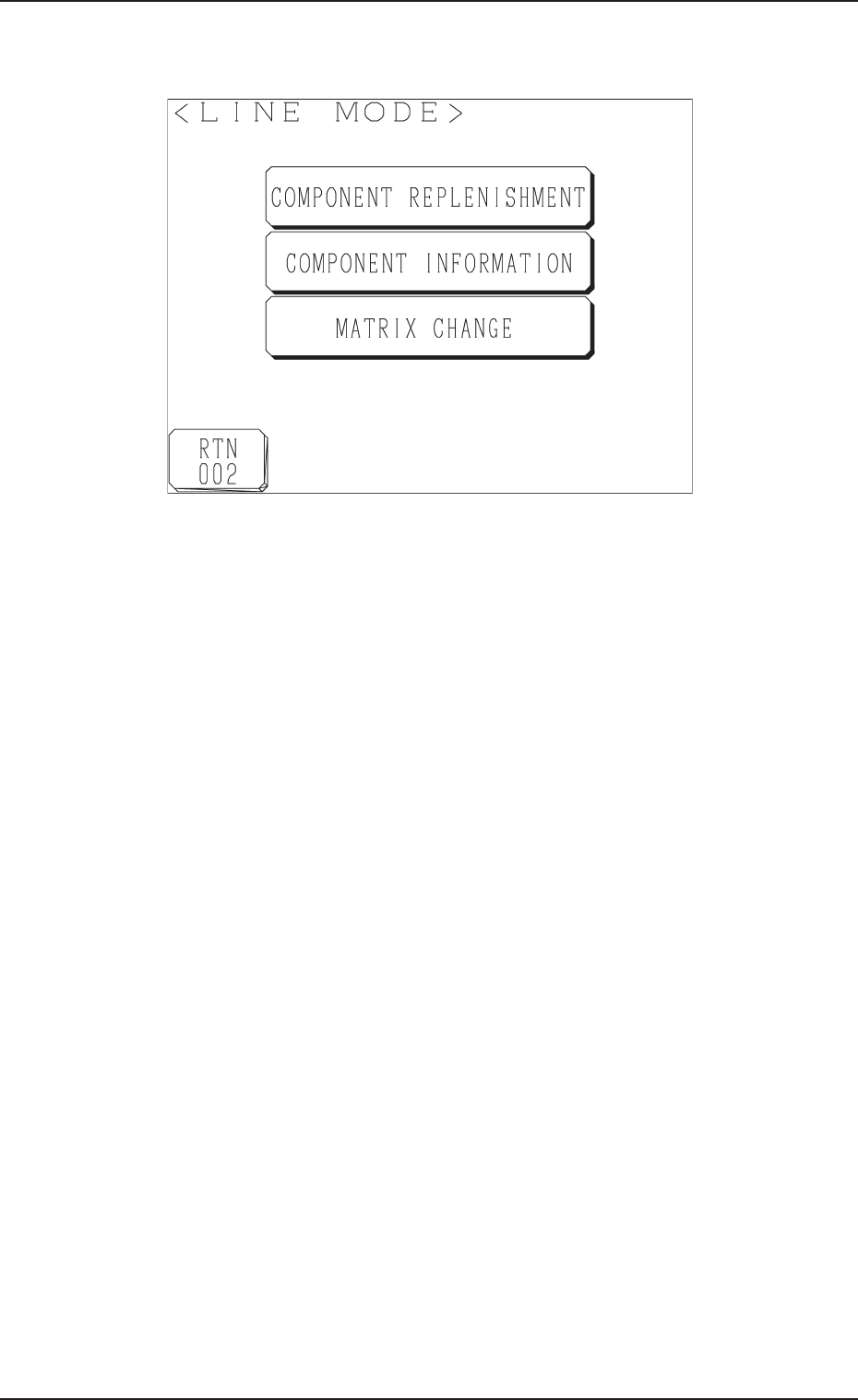

(2) Press the [NEXT] key.

The following display appears on the screen.

Fig. A85

• [COMPONENT REPLENISHMENT] Key

When this key is pressed, the “COMPONENT REPLENISHMENT” dis-

play appears on the screen, enabling you to check whether components

should be replenished or not.

• [COMPONENT INFORMATION] Key

When this key is pressed, the “COMPONENT INFORMATION” display

appears on the screen, enabling the checking of component information

on each stage or block.

• [MATRIX CHANGE] Key

When this key is pressed, the “MATRIX CHANGE” display appears on

the screen, enabling you to change the location (matrix) of a component to

be picked up subsequently.

1. LINE Mode
