Tg0869-PM-OM 0305-001 Chapter 1 3-8 3. Component Information • This display enables the checking of component information on each stage or block. When the [COMPONENT INFORMA TION] key is pressed at the “LINE MODE” displa…
Tg0869-PM-OM
0305-001 Chapter 1 3-7

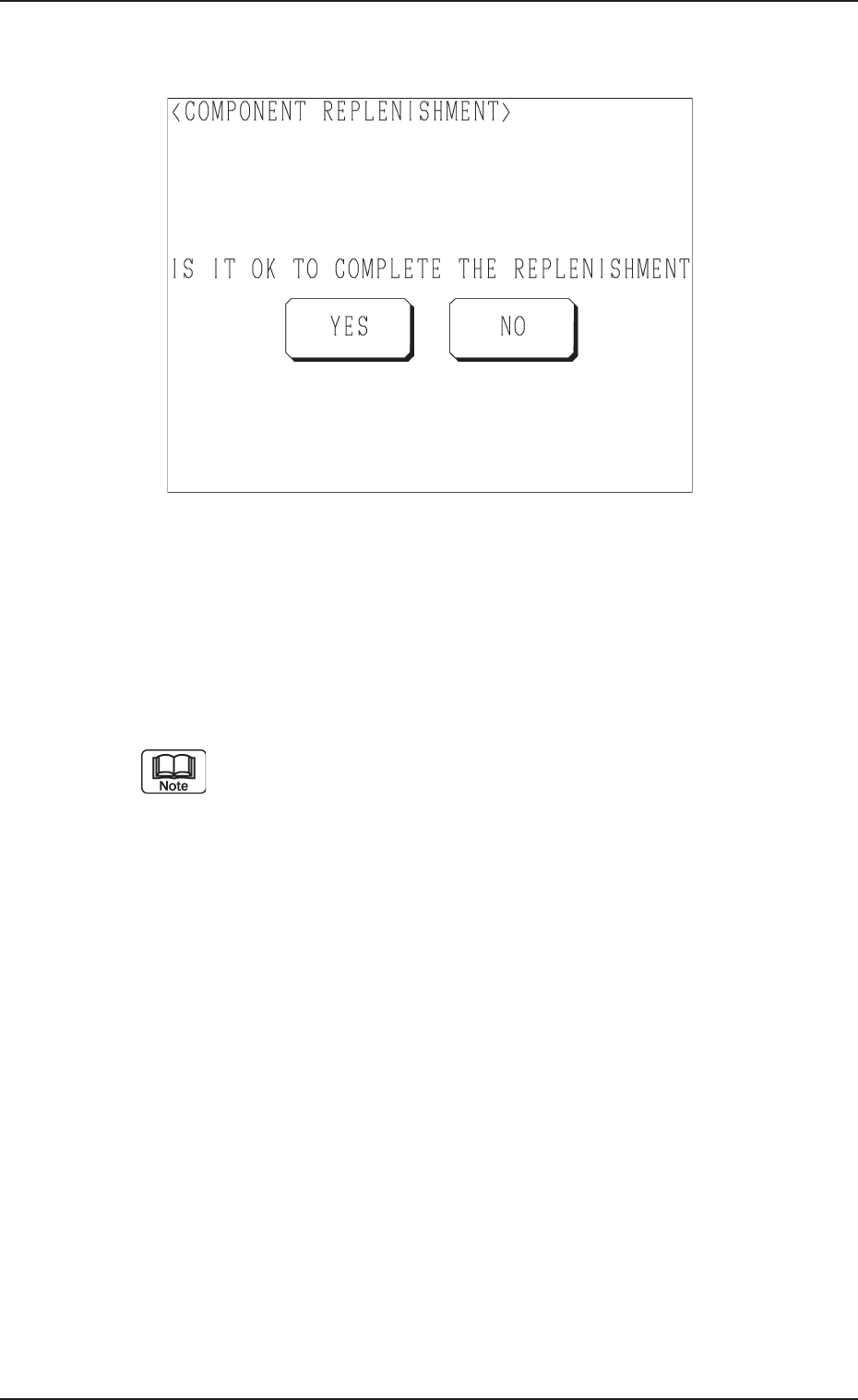

Fig. A88
(11) Confirm that components are supplied completely and press the [YES]
key to declare the completion of component replenishment.
Pressing the [NO] key resumes the display (Fig. A86).
(12) Press the [U Ready] or [L Ready] key.
The LED corresponding to the pressed key is turned on and the door
(upper or lower) is electromagnetically locked.
(a) When several pallets are short of components, follow Step (8)
every time components are supplied or another step (collective
operation) after all components are supplied.
(b) It is also possible to replenish the tray in the middle of process-
ing with components or replace it with another one. In this
case, it is required to update the tray matrix.
Refer to “4. Matrix Change Operations of Section 3 in
Chapter 1” in this booklet and “7. Tray Pick-Up Matrix
(Option) of Section 3 in Volume 1” in the main machine
instruction manual for details.
(10) Press the [SUPPLY] key at the display (Fig. A86).
The display (Fig. A88) appears on the screen.
2.2 Confirmation of “Component Replenishment Completed” Mode before Machine Operation
2.2 Confirmation of “Component Replenishment Completed”
Mode before Machine Operation
(1) Open the display (Fig. A86).
(2) Check whether or not all stage No. keys are green or black.
When a No. key turns red or flickers in red, it indicates that the stage is
short of components. Replenish the stage with components.
Tg0869-PM-OM
0305-001 Chapter 1 3-8
3. Component Information
• This display enables the checking of component information on each stage
or block.
When the [COMPONENT INFORMATION] key is pressed at the “LINE
MODE” display (Fig. A85), the following display appears on the screen.

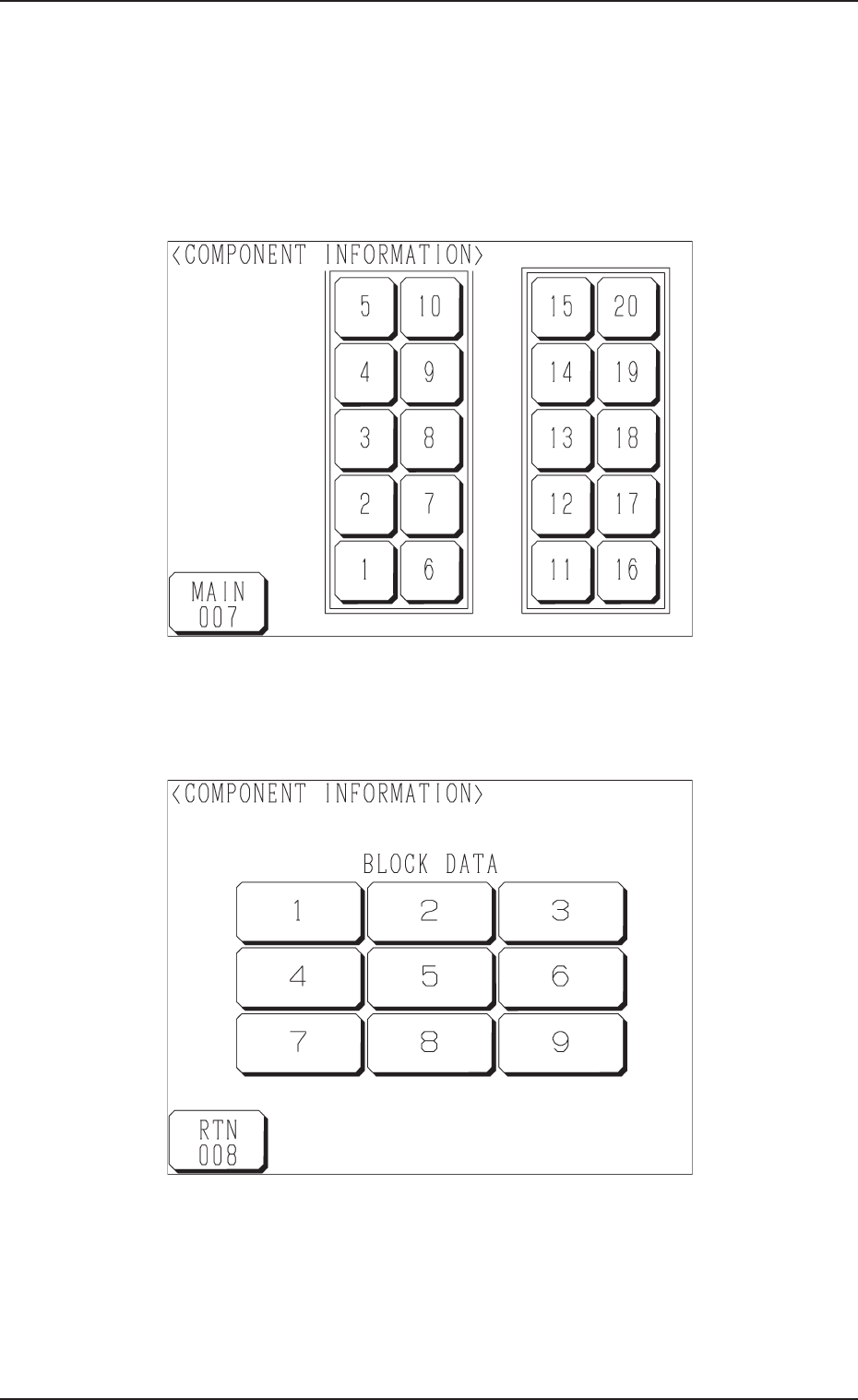

Fig. A90
Fig. A89
(1) Press the stage No. key desired to check the component information.
The following display appears on the screen.
3. Component Information
Tg0869-PM-OM
0305-001 Chapter 1 3-9
(2) Press the block No. key desired to check the component information.
The component information related to the selected No. is displayed as
shown below.

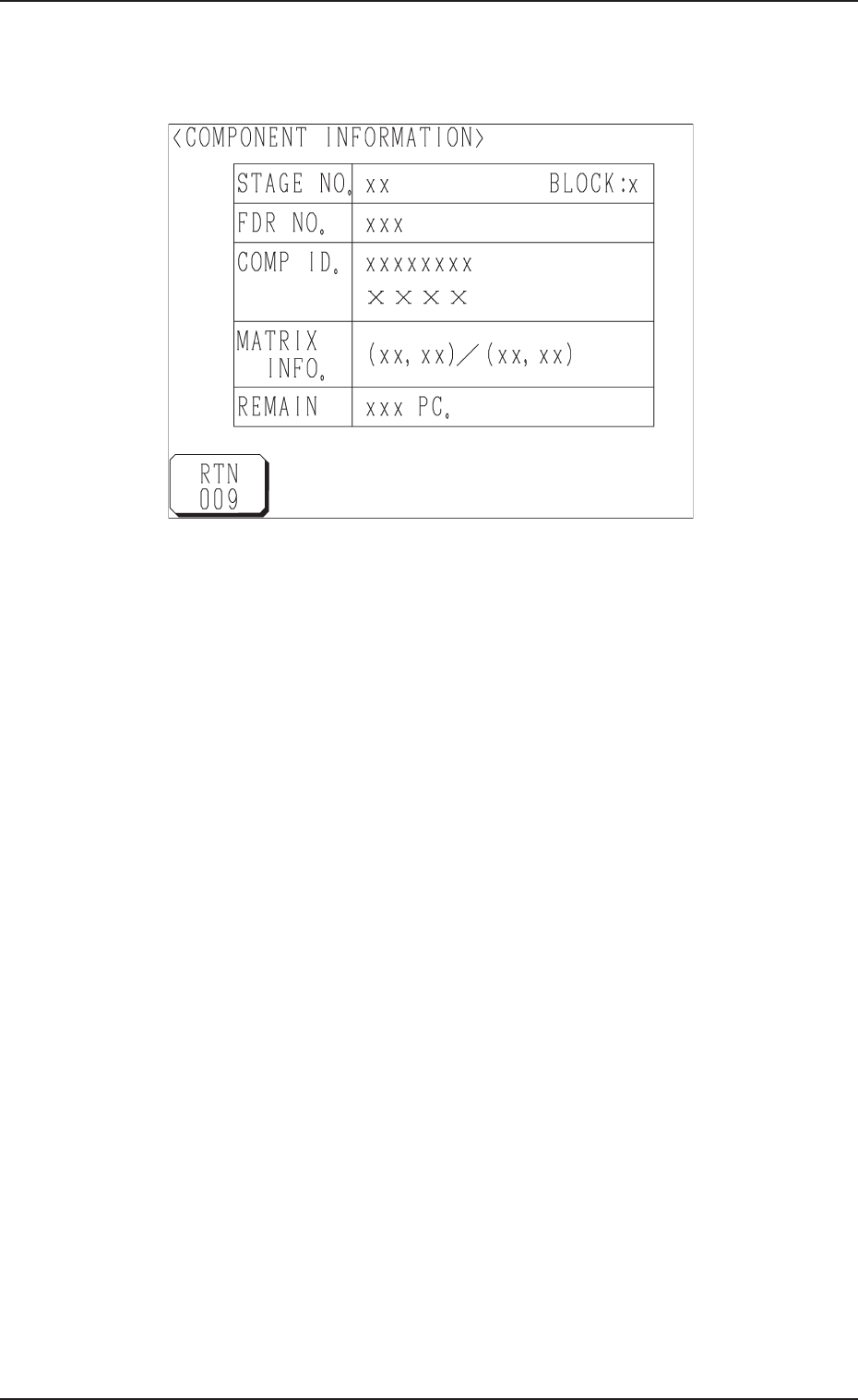

Fig. A91
STAGE NO. : This shows the selected stage No.
BLOCK : This shows the selected block No.
FDR NO. : This shows a feeder No. (type of components).
COMP ID. : This shows a component ID.
MATRIX INFO. : This shows “Location (Coordinates) of Subsequently
Picked Component/Matrix Size”.
REMAIN : This shows the quantity of remaining components
related to the currently indicated stage and block Nos.
3. Component Information
