5.2 Program Change
Tg0869-PM-OM
5.2.3.2 Detachment of Magazine
(1) Open the “ELEVATOR UNIT” display.
(2) Press the [UPPER MAGAZINE CONNECT/DISCON] or
the [LOWER MAGAZINE CONNECT/DISCON] key and
the [MOVE] button to take out the magazine on the de-
sired side.
The elevator unit and the magazine base on the selected
side start moving up or down.
The magazine base is separated from the elevator unit at
the magazine exchange position and the elevator unit is
zeroed and stops moving.
(3) Press the [U READY] or the [L READY] button on the
upper or the lower magazine side selected in Step (2).
The LED of the pressed button extinguishes.
(4) Hold the grip of the door selected in Step (3) and pull it
forward to open the door.
(5) Put the knob of the magazine stopper between fingers as
shown in Fig. A56 and turn it clockwise by approx. 90°
while pulling it forward.
(See Arrows *1 and *2 in Fig. A55.)
Pulling Force of Magazine Stopper
39.2 N to 49.0 N (4 to 5 kgf)
(6) Hold the handle of the magazine base and pull it forward
until it stops.
If the magazine base is pulled out too quickly, the
magazine may fall down to the front side by its
inertial force.
(7) Shift the desired magazine slightly toward you, hold the
handholds of the magazine, and take out the magazine.
Try to shift the magazine slightly toward you. Oth-
erwise, the rear side of the magazine will be caught
by the multi-layer tray feeder.
Hierarchical Sequence
(Display)
“Neutral Mode”
“LOCAL MODE”
“MANUAL MODE”
“ELEVATOR UNIT”
0305-001 Chapter 1 2-31
5.2 Program Change
Tg0869-PM-OM
5.2.4 FEEDER (B) OFFSET Display
Operation Procedure
Refer to “3. FEEDER (A) OFFSET and FEEDER (B) OFFSET Displays of
Section 5 in Volume 2” in the main machine instruction manual for details.
Set the offset data on the main machine side.

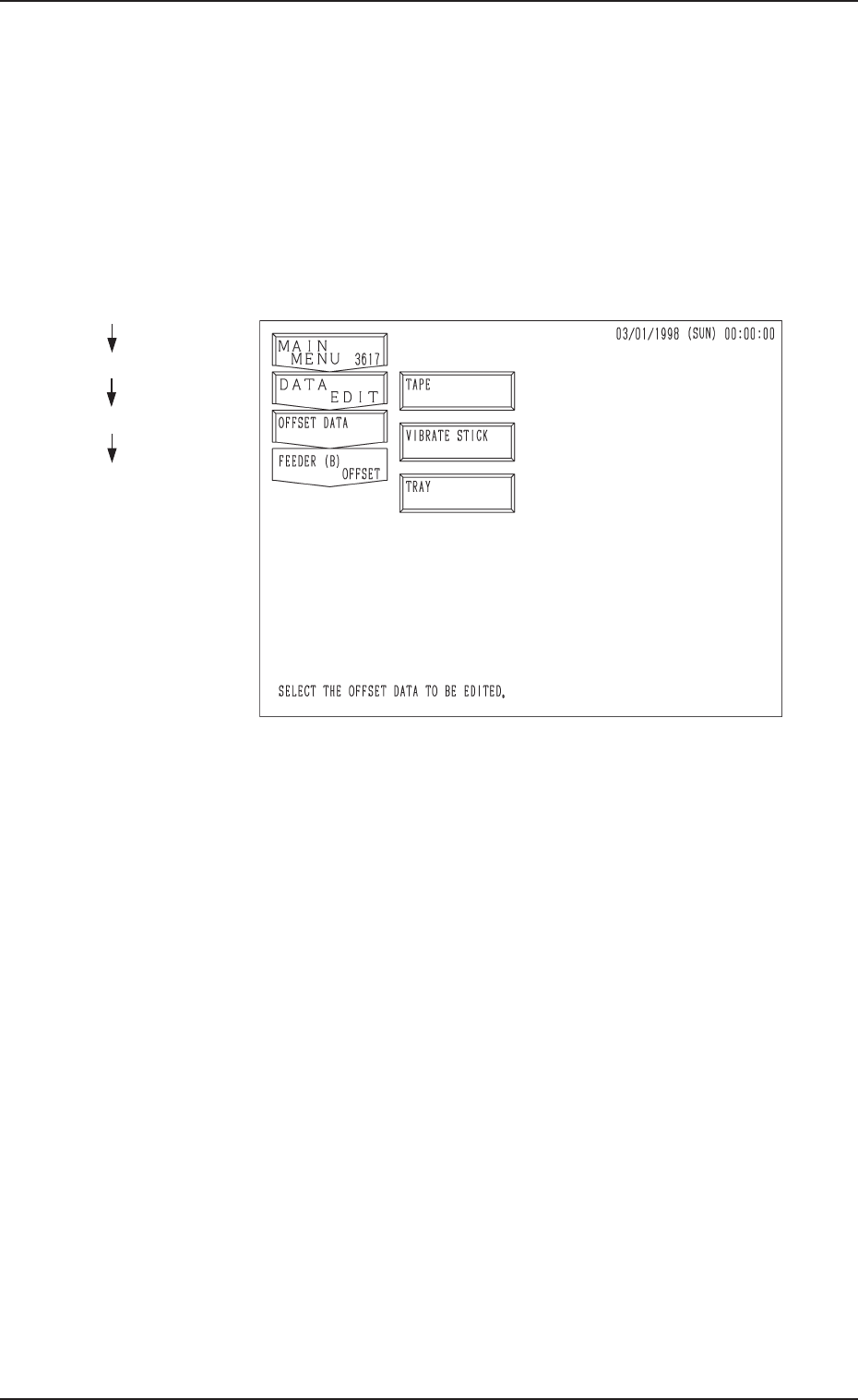

(1) When the [FEEDER (B) OFFSET] key is pressed at the
“OFFSET DATA” display, the following display appears
on the screen.
Fig. A62
Hierarchical Sequence
(Display)
“MAIN MENU”
“DATA EDIT”
“OFFSET DATA”
“FEEDER (B) OFFSET”
0305-001 Chapter 1 2-32
5.2 Program Change
Tg0869-PM-OM
(2) Press the [TRAY] key at the “FEEDER (B) OFFSET” display (Fig. A62).
The display (Fig. A63) appears on the screen.
Fig. A64
(3) Press the [STEP X] key. ([STEP 1] to [STEP 20])
The display (Fig. A64) appears on the screen.
(4) Enter various offset parameters.
Fig. A63
