Chapter 5 2-14 Tg0869-PM-OM 0305-001-(M807WTL--0006) 2.6 SDS OUT 1 2.6 SDS OUT 1 Note : It shows the diagram within dotted lines is within the relay PCB.
Chapter 5 2-13 Tg0869-PM-OM0305-001-(M807WTL--0005)

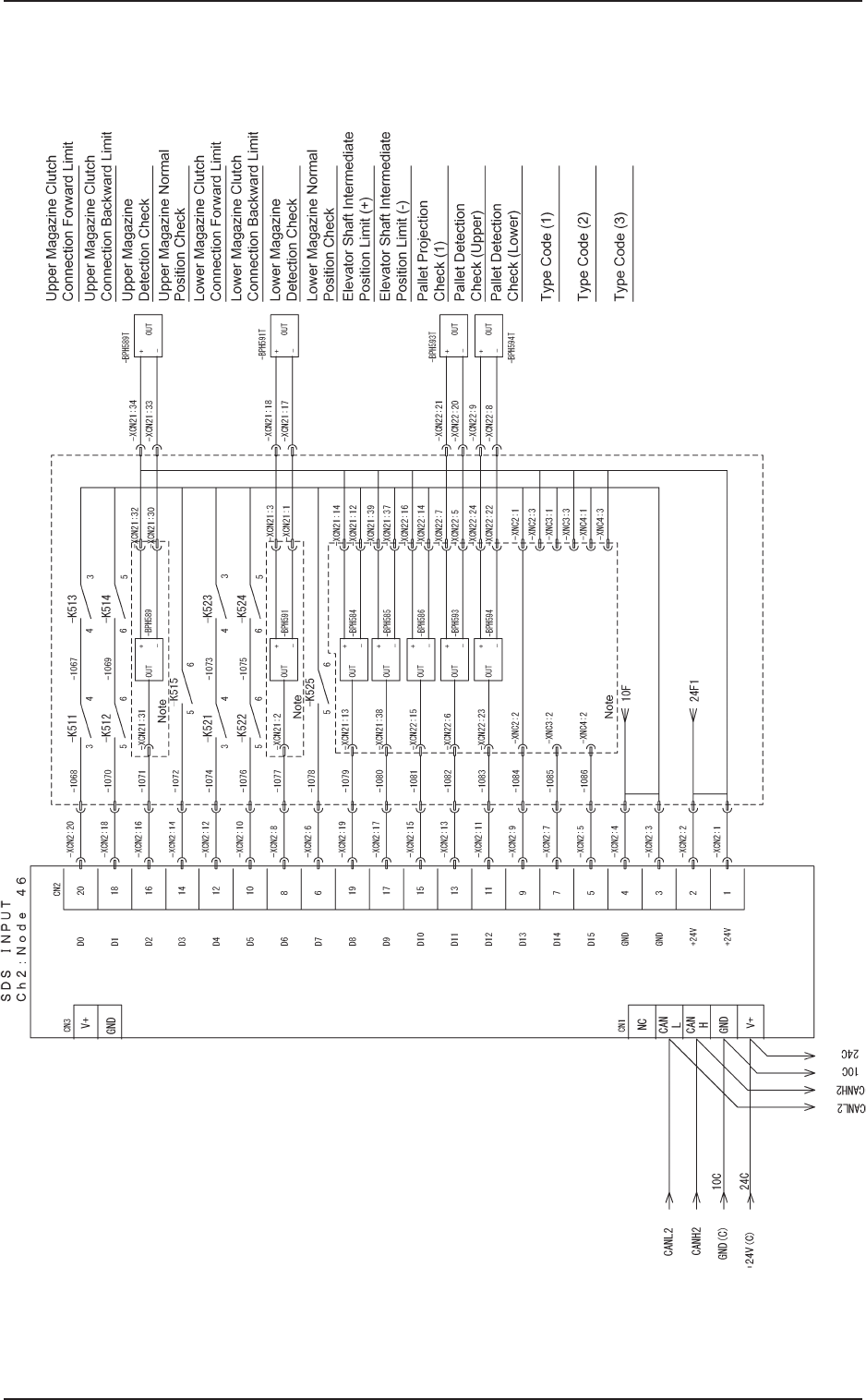

2.5 SDS IN 2
2.5 SDS IN 2
Note : It shows the diagram within dotted lines is within the
relay PCB.
Chapter 5 2-14 Tg0869-PM-OM0305-001-(M807WTL--0006)

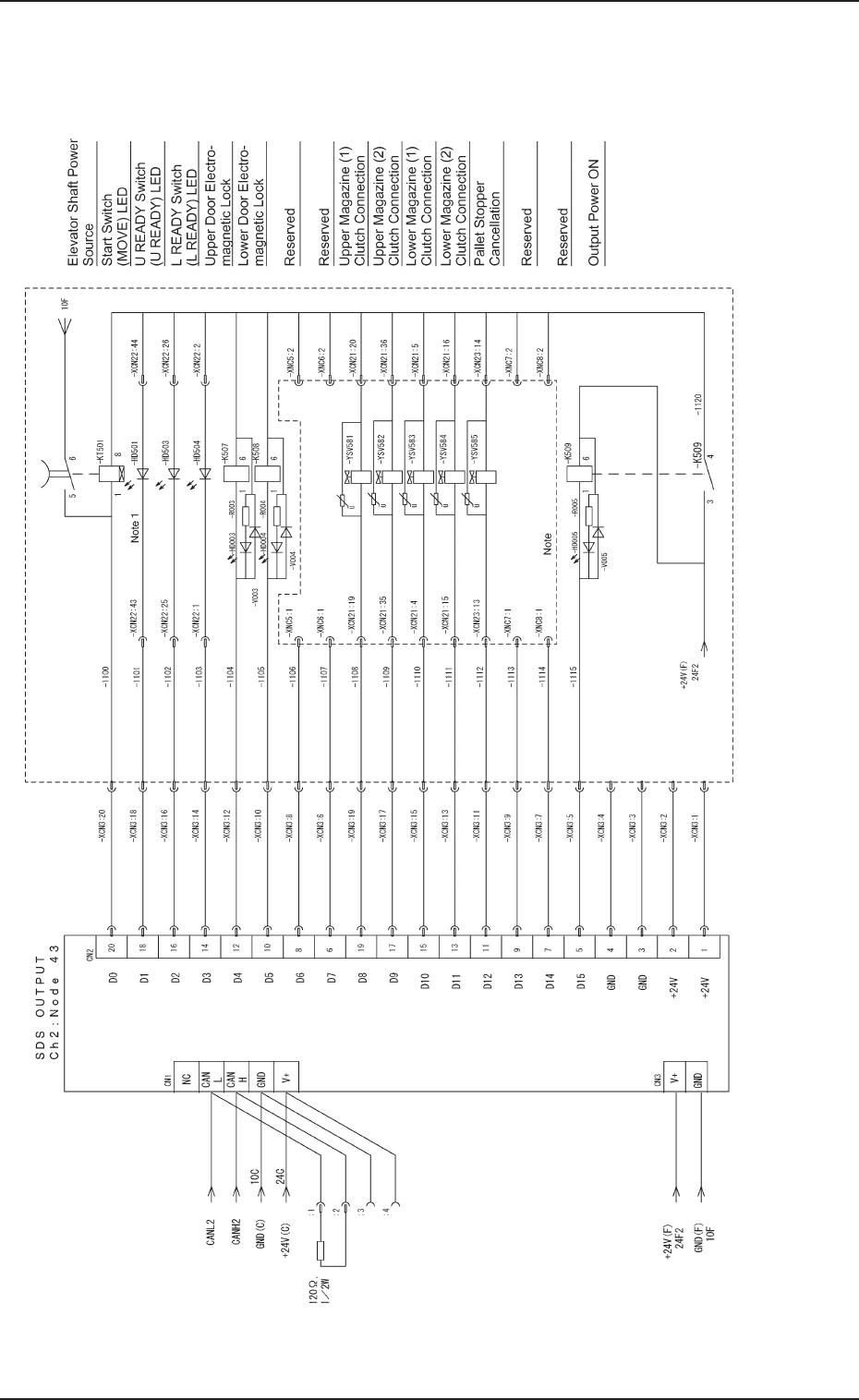

2.6 SDS OUT 1
2.6 SDS OUT 1
Note : It shows the diagram within dotted lines is within the
relay PCB.
Chapter 5 2-15 Tg0869-PM-OM0305-001-(M807WTL--0007)

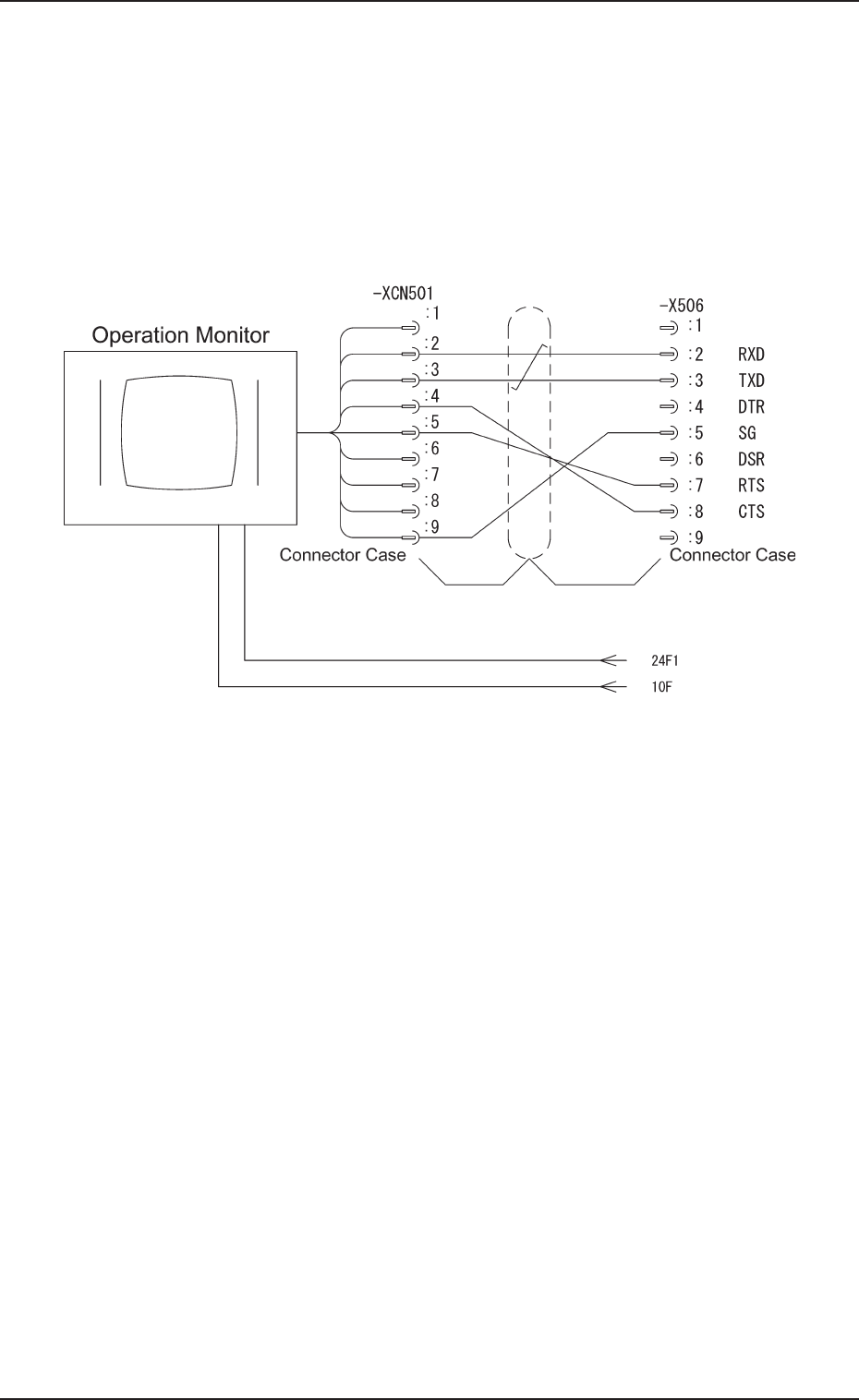

2.7 Operation Monitor Circuit Diagram
2.7 Operation Monitor Circuit Diagram
