0305-001 Chapter 1 2-1
Tg0869-PM-OM
Section 2
Before Automatic Operation
1. Precautionary Items
1.1 Touch Screen
• The touch screen is constructed of a liquid crystal display (resolution: 320 ×
240 dots) and a touch screen.
The touch screen senses the placement of a user’s finger. To enter data or
select various data, press your finger slightly against the touch-sensitive re-
gions of the touch screen.
• The touch screen is made of glass.
Do not apply strong pressure to the touch screen. Try not to touch the screen
except for input operations.
The touch screen reacts to the force of 0.98 N (100 gf) or less.
Do not press the screen with an excessive force.
The surface of the touch screen is fragile. Do
not rub the surface not touch it with a pen, a
screwdriver, etc.
The device is not a water-proof and encapsu-
lated type.
Avoid dust, water droplet, oil droplet, and metal
pieces.
Especially, when metal pieces or combustible
material are mixed into the machine, it may
lead to fire ignition.
• A high-voltage current is flowing in some internal sections.
Do not detach nor disassemble the touch
screen to avoid any electric shock.
• Cleaning of Touch Screen
Turn off the operation power before the touch
screen is cleaned.
Cleaning the screen while it is active may cause
adverse reaction of the screen, resulting in data cor-
ruption.
When the surface of the touch screen is stained, wipe off dust and dirt with a
dry cloth.
If the surface still remains dirty, soak the cloth in diluted neutral detergent
(2%), wring it hard, then wipe off the dust and dirt.
Do not use alcohol or benzene to clean the
touch screen.
Otherwise, the surface of the touch screen may melt
or get cloudy.
1. Precautionary Items
0305-001 Chapter 1 2-2 Tg0869-PM-OM
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
2. INITIALIZATION Display
When the main machine is powered up, power is also supplied to the multi-
layer tray feeders.
Then, the display (Fig. A11) appears on the touch screen of the multi-layer
tray feeder.

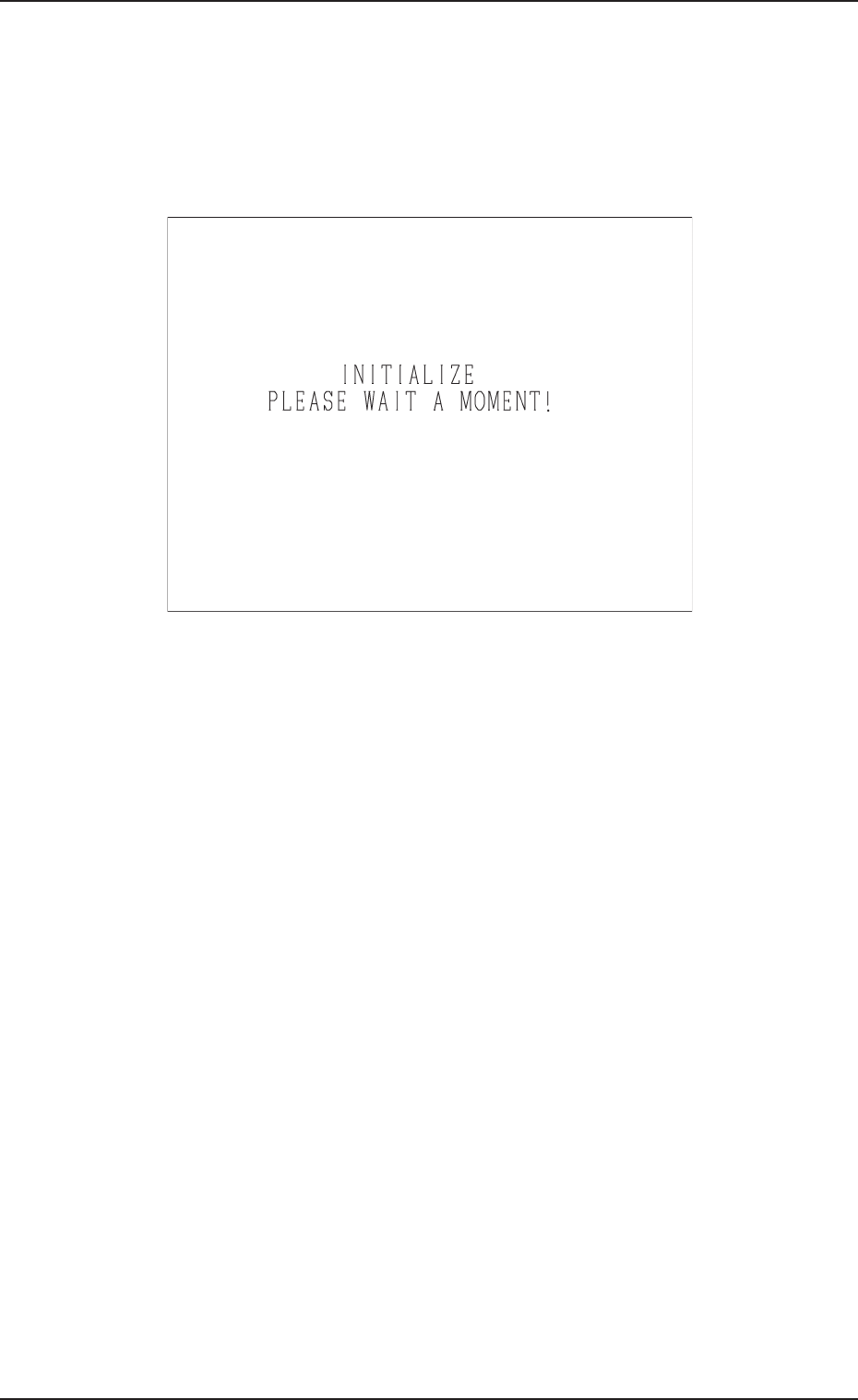

Fig. A11 “INITIALIZATION” Display
2. INITIALIZATION Display
0305-001 Chapter 1 2-3 Tg0869-PM-OM
