1. Precautionary Items
1. Precautionary Items
Described in this session are the items related to lubrication and inspections
work for better performance of the machine.
It is recommended that lubrication and inspections work be performed peri-
odically.
Lubrication, Inspections, and Cleaning Work
• Only qualified personnel should perform
lubrication, inspections, and cleaning work
carefully in compliance with the specified
procedures.
• Be sure to turn off the main power of the
machine, shut off the air source, and lock
the main switch with the padlock before
lubrication, inspections, and cleaning work.
• Refer to “1.4 Notes On Maintenance” for
details.
• Take ample care not to leave the waste threads after cleaning with an oiled
rag.
• Wipe off old grease before lubrication.
• Do not blow air, etc., unless necessary.
• When a pallet or a magazine is replaced with another one, check for dam-
ages, cracks, bends, etc., to avoid any machinery breakdown and perform
the cleaning.
0305-001
CAUTION
2. Same Types of Lubricants
Lubricants equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU
KOSAN)
Table D1
Grease Names Makers
Alvania Grease No. 1 SHELL OIL
Multinoc Grease No. 1 NIPPON OIL CORPORATION
Lisonix Grease No. 1 JAPAN ENERGY
Dynamax No. 1 COSMO OIL
Lithtan No. 1 ESSO OIL
MP Grease No. 1 KYGNUS OIL
Gemico MP No. 1 TonenGeneral Sekiyu k.k.
Multemp PS-1 KYODOH YUSHI
Chapter 4 1-3 Tg0869-PM-OM
3. Monthly Maintenance
Table D2
Fig. D1 MP-5050
(a) The component pick-up rate may deteriorate when the pallet has a
warpage.
(b) If the tape has partly peeled off on the pallet side surface or rear
side surface, apply an adhesive agent and affix it.
If the tape is worn or peeled off completely, contact our Sales De-
partment or our agent.
3. Monthly Maintenance
Pallet
Damage Check and Cleaning (Rag)
Tape
Pallet
Check the tape for peel-off on the side and rear side.
0305-001
Chapter 4 1-4 Tg0869-PM-OM

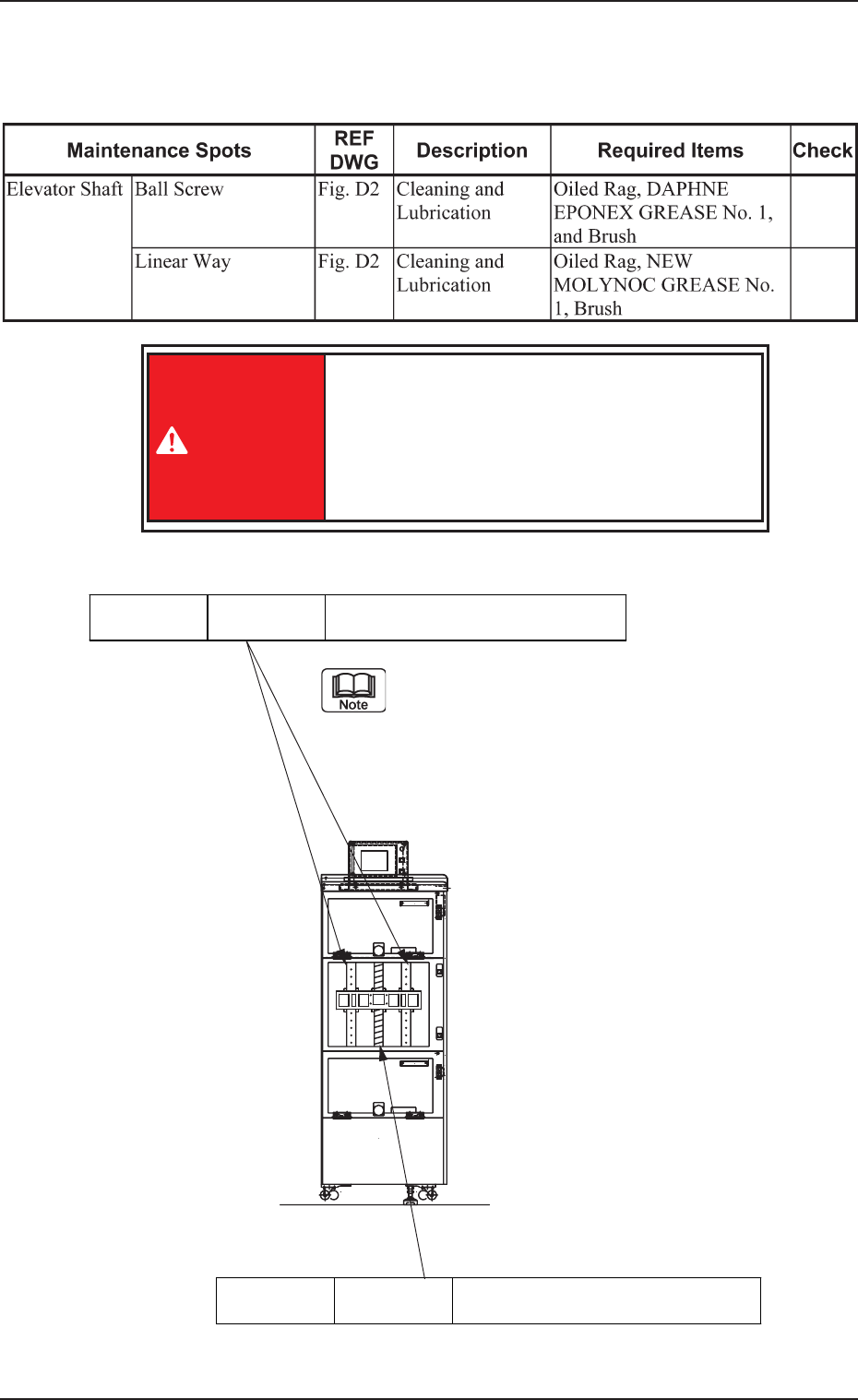

4. Maintenance (Every 3 Months after Initial Month)
Table D3
Fig. D2 Elevator Shaft of FP-5022L (Same to “FP-5022R”)
4. Maintenance (Every 3 Months after Initial Month)
• Be sure to shut off the power before detach-
ing the center cover of the multi-layer tray
feeder.
• Do not supply power to the machine or per-
form any operations with the center cover be-
ing detached.
Elevator
Shaft
Linear Way
Cleaning (Oiled Rag) and Lubrication
(DAPHNE EPONEX GREASE No. 1)
The center cover must be detached to apply
grease to the elevator shaft.
Refer to “5. Detachment and Attachment of
Center Cover of Section 1 in Chapter 4” for the
detailed information on how to detach the cen-
ter cover.
Elevator
Shaft
Ball Screw
Cleaning (Oiled Rag) and Lubrication
(DAPHNE EPONEX GREASE No. 1)
0305-001
DANGER
