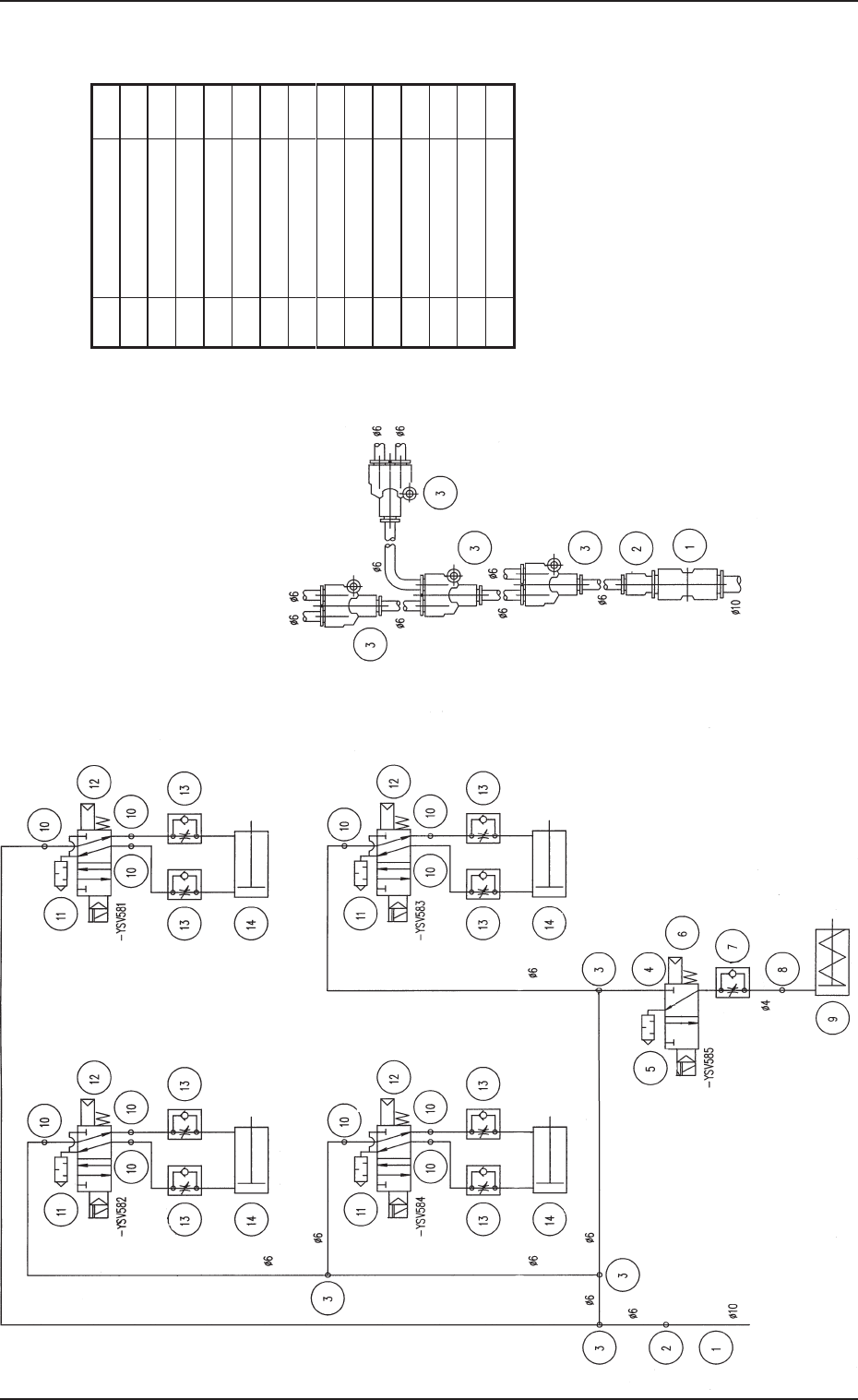

1. Air Piping Diagram (FP-5022L, FP-5022R)

Upper Magazine (2)

Clutch Connection Cylinder

Lower Magazine

(2)

Clutch Connection

Cylinder

Upper Magazine (1)

Clutch Connection Cylinder

Lower Magazine (1)

Clutch Connection

Cylinder

To Upper Magazine (2)

Clutch Connection

To Lower Magazine (2)

Clutch Connection

Pallet Stopper

OFF

To Lower Magazine (1)

Clutch Connection

From TIM-5200

main machine

Details of Joint Connection

Pallet Stopper OFF Cylinder

To Upper Magazine (1)

Clutch Connection

From TIM-5200 main machine

1. Air Piping Diagram (FP-5022L, FP-5022R)

No.

Name

Qt

y

1 Straight Union 1

2 Reducer 1

3 Union Y 4

4Half Union 1

5 Silencer 1

6 Solenoid Valve 1

7 Speed Controller 1

8 Elbow 1

9 Air Cylinder 1

10

Half Union 8

11

Silencer 4

12

Solenoid Valve 4

13

Speed Controller 8

14

Air Cylinder 4

Tg0869-PM-OM

Section 2

0305-001 Chapter 5 2-1

Electrical Circuit Diagrams

Tg0869-PM-OM

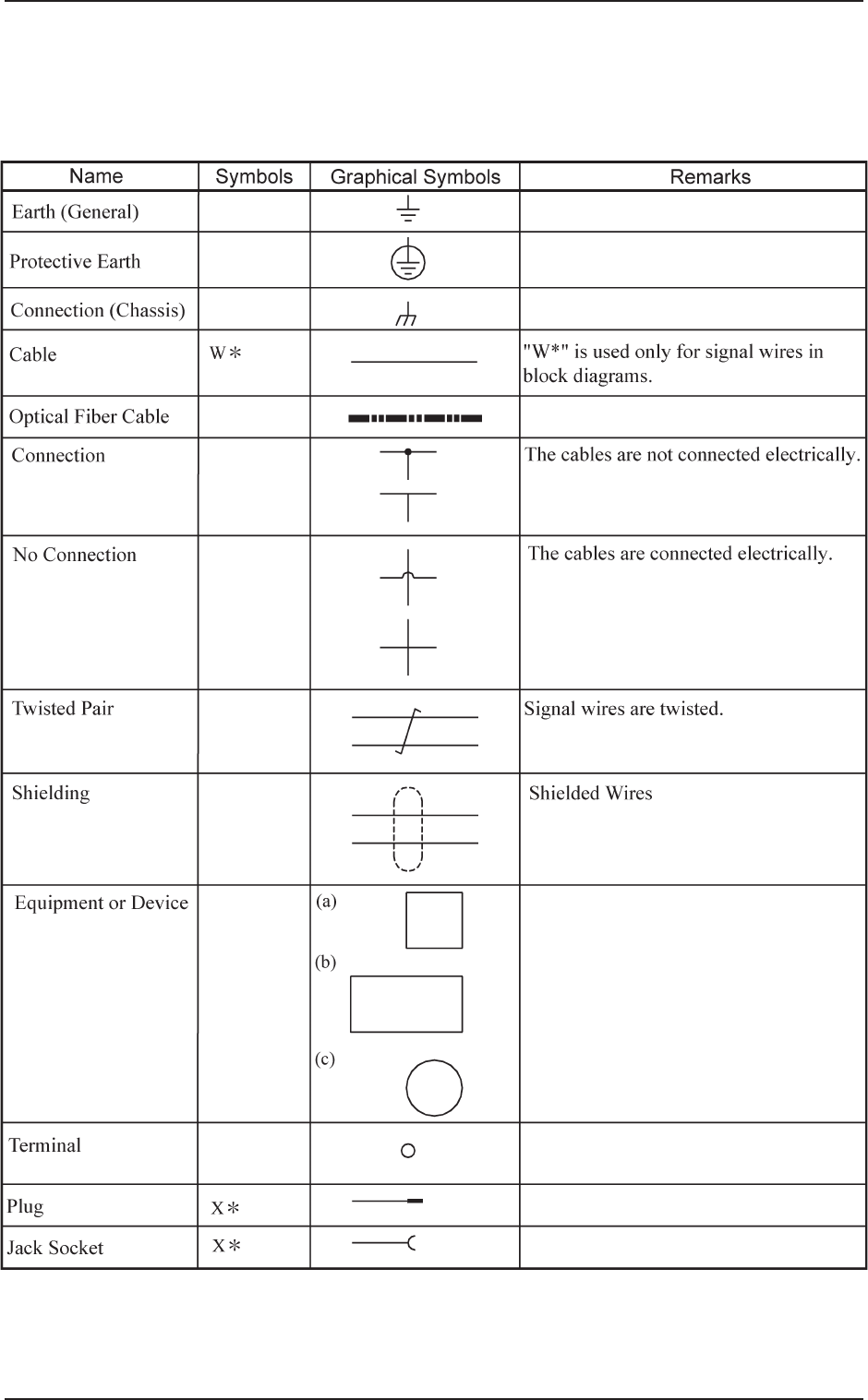

1. Electrical and Electronic Symbols

“*” represents a numeral.

0305-001 Chapter 5 2-2

1. Electrical and Electronic Symbols
