5.2 Program Change Tg0869-PM-OM • Do not press the pallet as shown in the figure. It might cause Pallet deforma- tion. • Do not pile up the pallet to store, as shown in the figure. It might cause Pallet deformation. How …
5.2 Program Change
0305-001 Chapter 1 2-14 Tg0869-PM-OM
5.2 Program Change
5.2.1 Pallet Set-up
5.2.1.1 Precautions in Pallet Handling

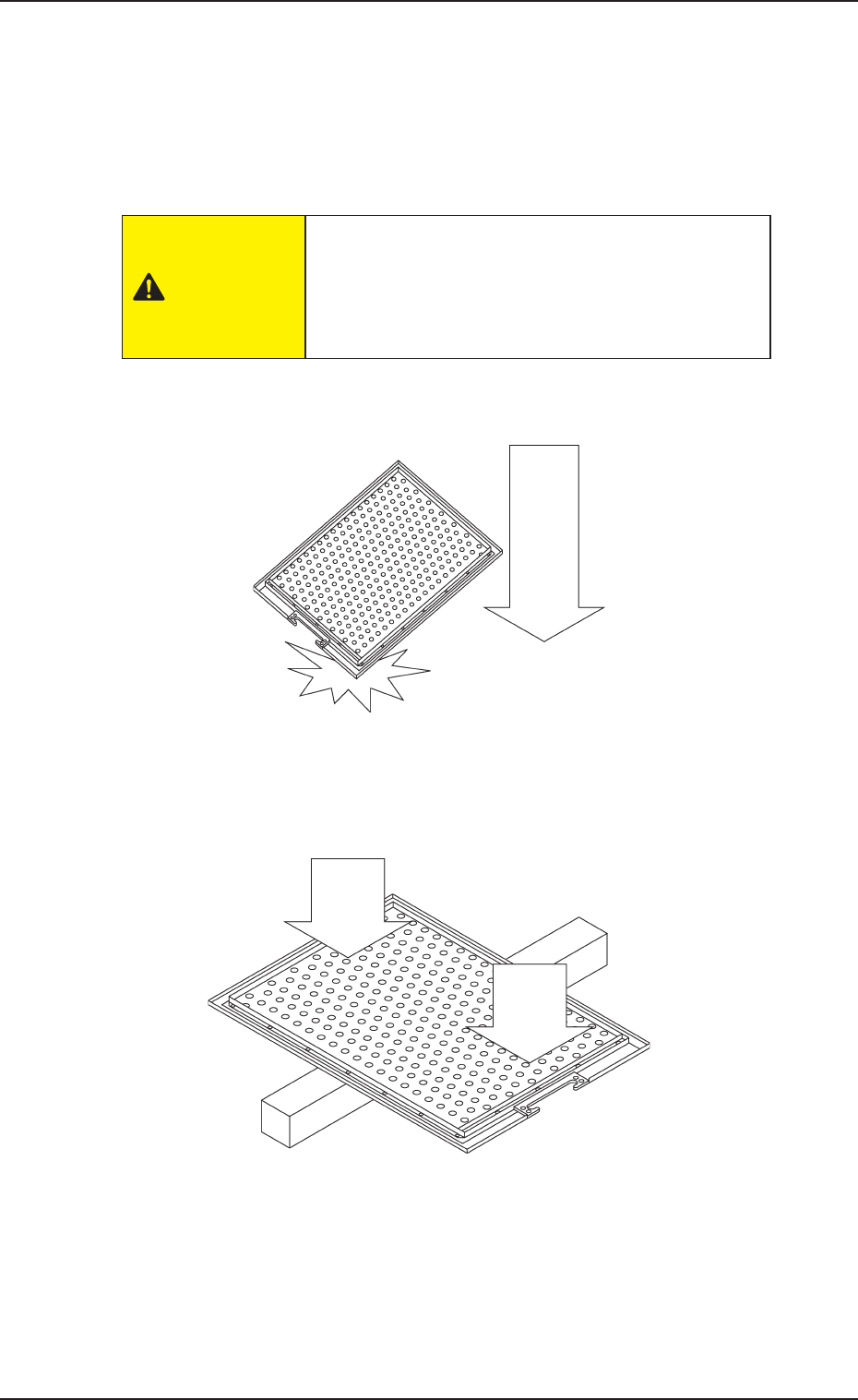

• Do not drop the pallet on the floor. It might cause pallet deformation.
• Do not press the pallet as shown in the figure. It might cause deformation.
Fig. A24
• Handle the pallet carefully.
• A deformed pallet may lead to a pick-up error. If pick-
up errors occur frequently, consult our marketing de-
partment or sales agency
Fig. A25
Pressure
Pressure
Drop
CAUTION
5.2 Program Change
Tg0869-PM-OM

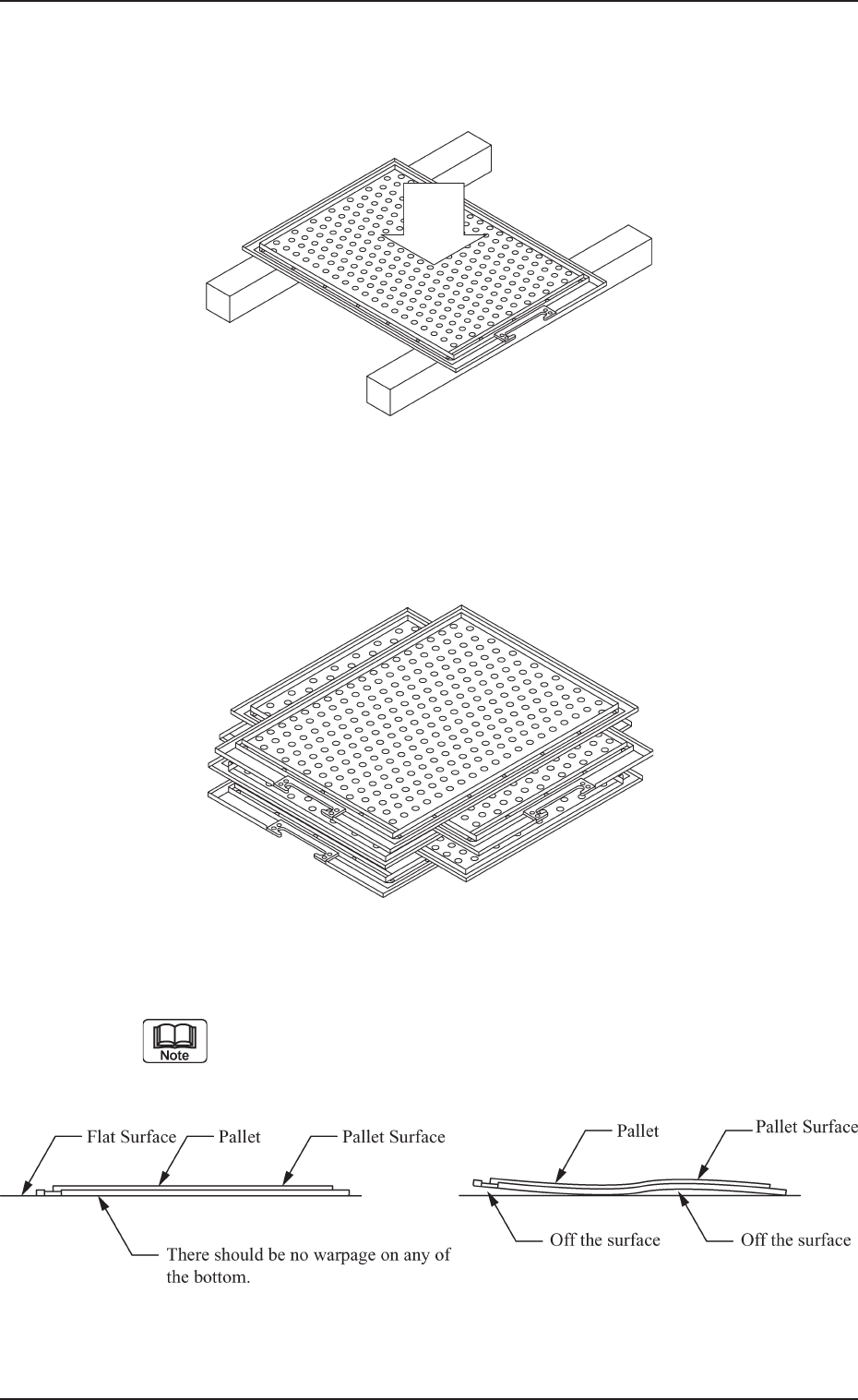

• Do not press the pallet as shown in the figure. It might cause Pallet deforma-
tion.
• Do not pile up the pallet to store, as shown in the figure. It might cause Pallet
deformation.
How to check for pallet deformation
(1) Place the pallet on a flat place.
(2) Check against warpage along the whole bottom of the pallet.
Fig. A26
Fig. A27
Fig. A28 Correct Pallet Fig. A29 Deformed Pallet
Pressure
0305-001 Chapter 1 2-15
5.2 Program Change
Tg0869-PM-OM

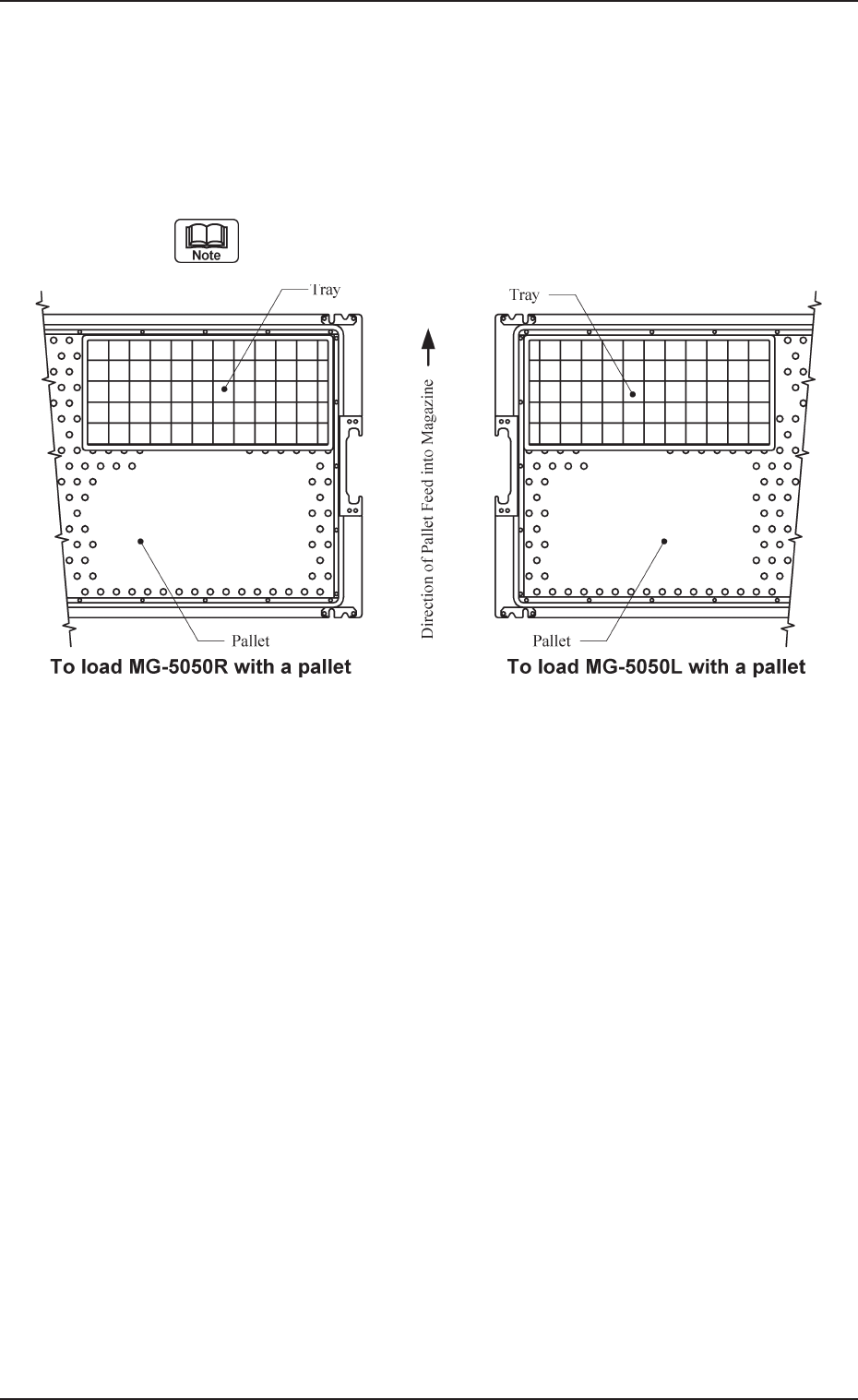

5.2.1.2 Tray Attachment to Pallet
(1) Put a tray on the pallet.
• To load MG-5050L with a pallet
Put a tray on the rear left side of the pallet.
• To load MG-5050R with a pallet
Put a tray on the rear right side of the pallet.
Don't make an error about the front and rear of the pallet.
Fig. A30 Position of Tray on Pallet (Top View)
0305-001 Chapter 1 2-16
