Machine System >> Editing Production Programs On the Machine
SYS-CP842-1.0E 4-67
Pickup Data Details Editing Screen
Detailed pickup data settings can be specified from this screen.
Screen Button Explanations
A. [Sequence No.]: Switches to the sequence search screen.
B. [Max. Nozzle Size]: Changes the maximum nozzle size (PENNMA) which is
specified in the production program’s part shape data
(ENVDT).
C. [Min. Nozzle Size]: Changes the minimum nozzle size (PENNMI) which is
specified in the production program’s part shape data
(ENVDT).
D. [Backlight Size]: Changes the nozzle minimum backlight size (PEN-
BLM) which is specified in the production program’s
part shape data (ENVDT).
E. [Enable] (Automatic pickup position correction): Changes the automatic pickup
point offset function setting (PTPCRAPO) which is
specified in the production program’s part shape data
(CARRING) to “0: Enable”
F. [Disable] (Automatic pickup position correction): Changes the automatic pickup
point offset function setting (PTPCRAPO) which is
specified in the production program’s part shape data
(CARRING) to “1: Disable”
Push the START button.
FUJI
ErrorOperator
JOG:X Y CAM
Servo CountGEM
CCD Monitor
Pickup Data EditorFUJI_CP7_2001
Front
Close
170
123
Pickup Position Auto Calibration
Enable
Set
Pickup Check
Maximum
Nozzle Diameter
Minimum
Nozzle Daimeter
1.2000
1.2000
Backlight Diameter
8.0
[mm]
[mm]
[mm]
Sequence Number
0 : Non
Disable
Pickup Nozzle
Set Switch
CP7S2017E
A
B
C
D
HF GE
Machine System >> Editing Production Programs On the Machine
4-68
SYS-CP842-1.0E
G. [Set] (Part pickup check): Changes the part pickup check mode (PTPCRPCK)
which is specified in the production program’s part
shape data (CARRING).
H. [Close]: Returns to the production program editing screen.
Editing Operations
The following editing operations can be performed at this screen.
Desired Action
Change the placement nozzle.
Editing Operation
Edit the maximum and minimum nozzle size
values.
Change the placement nozzle.
Edit the backlight size.
Change the "automatic pickup position
correction" function setting.
Edit the "automatic pickup position correction"
function setting.
Change the "part pickup check" setting.
Edit the "part pickup check" setting.
T005E
Machine System >> Editing Production Programs On the Machine
SYS-CP842-1.0E 4-69

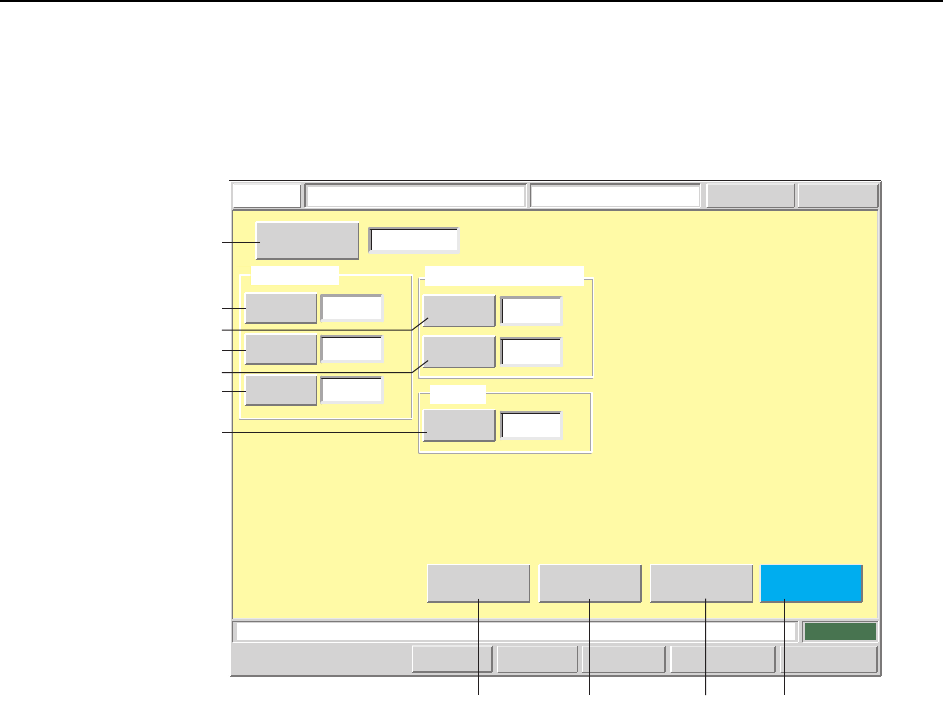

Body Data Editing Screen
Body data can be edited from this screen. For body data details, refer to the SMD
Operation Manual.
Screen Button Explanations
A. [Sequence No.]: Switches to the sequence search screen.
B. [Body Length X]: Changes the body’s X-direction length (PTPSZBX)
which is specified in the production program’s part
shape data (PRTFORM).
C. [Body Length Y]: Changes the Body’s Y-direction length (PTPSZBY)
which is specified in the production program’s part
shape data (PRTFORM).
D. [Part Height]: Changes the part height (including leads) (PTPMNH)
which is specified in the production program’s part
shape data (PRTFORM).
E. [Length X] (Check tolerance):Changes the body size’s X-direction tolerance
(PTPTLBX) which is specified in the production pro-
gram’s part shape data (TOLEINF).
F. [Length Y] (Check tolerance):Changes the body size’s Y-direction tolerance
(PTPTLBY) which is specified in the production pro-
gram’s part shape data (TOLEINF).
G. [Detection Count Tolerance]:Changes the lead detection count tolerance
(PTPTLCL) which is specified in the production pro-
gram’s part shape data (TOLEINF).
H. [Vision Type]: Switches to the vision type editing screen.
Push the START button.
FUJI
ErrorOperator
JOG:X Y CAM
Servo CountGEMCCD Monitor
Body Data Editor
FUJI_CP7_2001
Front
Close
Lead
Element
Vision Type
Sequence Number
Size Data
Parts
Height
0.9000
Body
Length Y
2.0000
[mm]
1.2500
Body
Length X
[mm]
[mm]
0.1000
Check Tolerance Values
Length X
Length Y
0.1000
[mm]
[mm]
Lead
0
Detection
Tolerance
[%]
Set Switch
123
CP7S2018E
A
B
C
D
KH I J
E
F
G
