I/O Map >> Servo Input Signals
SYS-CP842-1.0E 6-19
Servo input-10
Servo input-11
Servo input-12
Address Display Description
SX048 Not used
SX049 D2 AXIS +OT D2-axis overtravel in the +direction
SX04A D2 AXIS -OT D2-axis overtravel in the -direction
SX04B D2 AXIS AMP OK D2-axis servo amp normal
SX04C Not used
SX04D Not used
SX04E Not used
SX04F Not used
Address Display Description
SX050 Not used
SX051 Not used
SX052 Not used
SX053 NZ AXIS AMP OK NZ-axis servo amp normal
SX054 Not used
SX055 Not used
SX056 Not used
SX057 Not used
Address Display Description
SX058 Not used
SX059 Not used
SX05A Not used
SX05B NY AXIS AMP OK NY-axis servo amp normal
SX05C Not used
SX05D Not used
SX05E Not used
SX05F Not used
I/O Map >> Servo Input Signals
6-20
SYS-CP842-1.0E
MEMO:
System Installation
and Upgrade >> System Installation
SYS-CP842-1.0E 7-1
7. System Installation and Upgrade
System installation and upgrade procedures are described in this part.
7.1 System Installation
The following procedure should be followed when installing both the system and appli-
cation software.
Note: Always transmit Proper data to the host computer before installing the system software. All
data is cleared from the machine during installation.
7.1.1 BIOS Settings
Verify the BIOS settings as described below before reinstalling Windows NT and the
system applications.
1 Connect the keyboard to the connector at the front of the machine.
2 Turn the machine power on. When the message Press <F2> to enter SETUP
displays, press the [F2] key on the keyboard to display the BIOS setting screen.
•Use the left and right arrow keys to switch between menu screens.
•Use the up and down arrow keys to select the desired item.
•Press [ENTER] to display submenus. (At the System Date and System Time
settings, the [ENTER] key is used to switch between the Hour, Minute,
and Second settings.)
•Use the [-]/[+] keys or the SPACE key to change setting values shown in brack-
ets.
•To return to the [Main] menu, press the ESC key.
An explanation of the necessary settings follows.

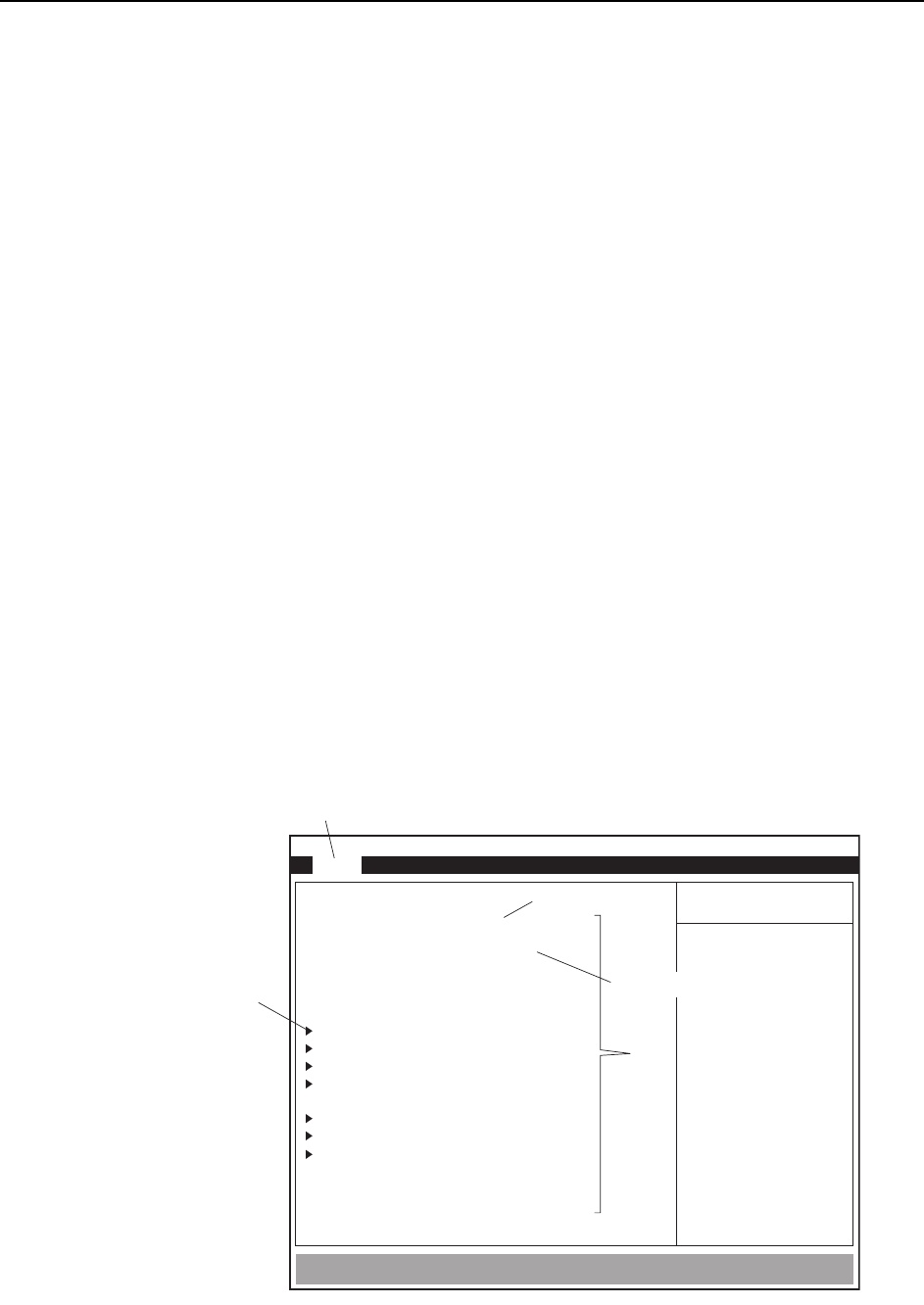

PhoenixBIOS Setup Utility
Main
System Time:
System Date:
Legacy Diskette A:
Primary Master
Primary Slave
Secondary Master
Secondary Slave
Cache Memory
Boot Options
System Memory:
Extended Memory:
[16 : 17 : 18]
[04 / 12 / 2000]
[Disabled]
[6007Mb]
[None]
[CD-ROM]
[None]
640 KB
261120 KB
Advanced Power BIOS Boot Exit
UBE Shadow Control
Menu
Submenu item
CP7S5001
Item
Time, minute, second
Month, day, year
