Machine System >> Editing Production Programs On t he Machine SYS-CP842-1.0E 4-73 Element Dat a Editing Screen Element data can be edited from this screen . For element data details, refer to the SMD3 Operation Man…
Machine System >> Editing Production Programs On the Machine
4-72
SYS-CP842-1.0E
F. [Element]: Switches to the element data editing screen.
G. [Lead]: Switches to the lead data editing screen.
H. [Close]: Returns to the production program editing screen.
Editing Operations
The following editing operations can be performed at this screen.
Problem Editing Operation
A vision processing error occurs during test
placement.
Error code: 0x1CA18005
No part line was found.
Error code: 0x1CA18006
No part line was found.
If the vision type is incorrect, edit the vision
type setting.
A vision processing error occurs during test
placement.
If the lighting is incorrect, edit the lighting
setting.
A vision processing error occurs during test
placement.
Error code: 0x1CB01101
Incorrect camera type setting.
If the camera type is incorrect, edit the
camera type setting.
T007E
Machine System >> Editing Production Programs On the Machine
SYS-CP842-1.0E 4-73

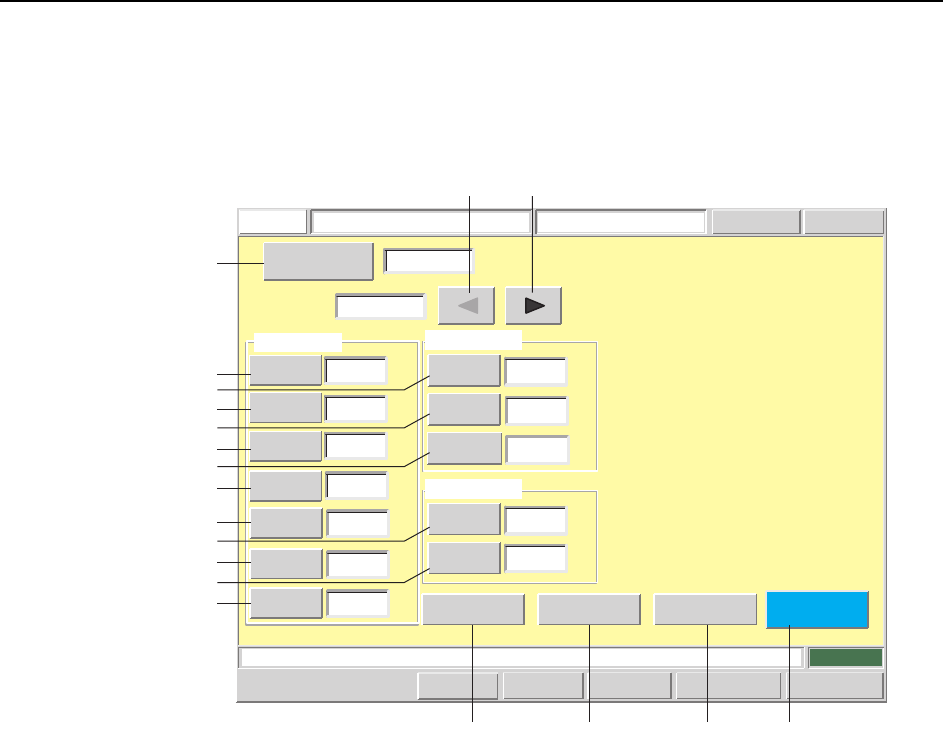

Element Data Editing Screen
Element data can be edited from this screen. For element data details, refer to the
SMD3 Operation Manual.
Screen Button Explanations
A. [Sequence No.]: Switches to the sequence search screen.
B. []: Changes the element data item which is being edited. If ele-
ment number 1 is being edited, the item is disabled (grayed
out) when this button is clicked.
C. []: Changes the element data item which is being edited. If final
element number is being edited, the item is disabled (grayed
out) when this button is clicked.
D. [Length]: Changes the lead element length (PGDELL) which is speci-
fied in the production program’s part shape data (ELDT).
E. [Width]: Changes the lead element width (PGDELW) which is speci-
fied in the production program’s part shape data (ELDT).
F. [Pitch]: Changes the lead element pitch (PGDELP) which is specified
in the production program’s part shape data (ELDT).
G. [Number of Leads]: Changes the number of lead element leads (PGDELQ) which
is specified in the production program’s part shape data
(ELDT).
H. [Side No.]: Changes the lead element position (direction) (PGDELSN)
which is specified in the production program’s part shape
data (ELDT).
Push the START button.
FUJI
Error
Operator
JOG:X Y CAM
Servo Count
GEMCCD Monitor
Element Data Editor
FUJI_CP7_2001
Front
Close
-0.6200
Position
X
Y
0.0000
[mm]
[mm]
0.1000
Lead Tolerance Values
Length
Width
0.1000
[mm]
[mm]
0.1000
Deviation
[mm]
Lead Data
Side
Number
0
P Pattern
3
Result 1
Pitch
0.0000
Width
0.3000
[mm]
0.5000
Length
[mm]
Count
1
[mm]
Lead
Body
Vision
Type
123
Sequence Number
1
Element
Set Switch
CP7S2020E
A
D
E
F
G
H
I
J
SRQP
B C
K
L
M
N
O
Machine System >> Editing Production Programs On the Machine
4-74
SYS-CP842-1.0E
I. [P-Pattern]: Changes the lead element’s lead display pattern (PGDELPP)
which is specified in the production program’s part shape
data (ELDT).
J. [Result]: Changes the lead element’s check content (PGDELR) which is
specified in the production program’s part shape data
(ELDT).
K. [Length] (Lead tolerance):Changes the lead element’s lead length tolerance
(PGDELLT) which is specified in the production program’s
part shape data (ELDT).
L. [Width] (Lead tolerance):Changes the lead element’s lead width tolerance
(PGDELWT) which is specified in the production program’s
part shape data (ELDT).
M. [Deviation] (Lead tolerance):Changes the lead element’s lead bend tolerance
(PGDELCT) which is specified in the production program’s
part shape data (ELDT).
N. [X] (Position): Changes the lead element position’s X-coordinate (PGDELX)
which is specified in the production program’s part shape
data (ELDT).
O. [Y] (Position): Changes the lead element position’s Y-coordinate (PGDELY)
which is specified in the production program’s part shape
data (ELDT).
P. [Vision Type]: Switches to the vision type editing screen.
Q. [Body]: Switches to the body data editing screen.
R. [Lead]: Switches to the lead data editing screen.
S. [Close]: Returns to the production program editing screen.
Editing Operations
The following editing operations can be performed at this screen.
Problem
The test placement part shape differs from
the wire frame shape. Or a vision processing
error occurs.
Editing Operation
If the element data is incorrect, edit the lead
data's length, width, pitch, number of leads,
side number, P-pattern, and result items.
A vision processing error occurs during test
placement.
Edit the lead tolerance length, width, and
deviation items.
The panel's part pattern differs from the wire
frame's lead positions. Or, a vision
processing error occurs.
If the element data is incorrect, edit the
position X and Y values.
T008E
