Safety >> The EMERGENCY STOP Buttons SYS-CP842-1.0E 2-11 2.5 The EMERGENCY ST OP Buttons In the event of an emergency , press any of the red EMERGENCY STOP buttons located on the mach ine at the positions indicated…

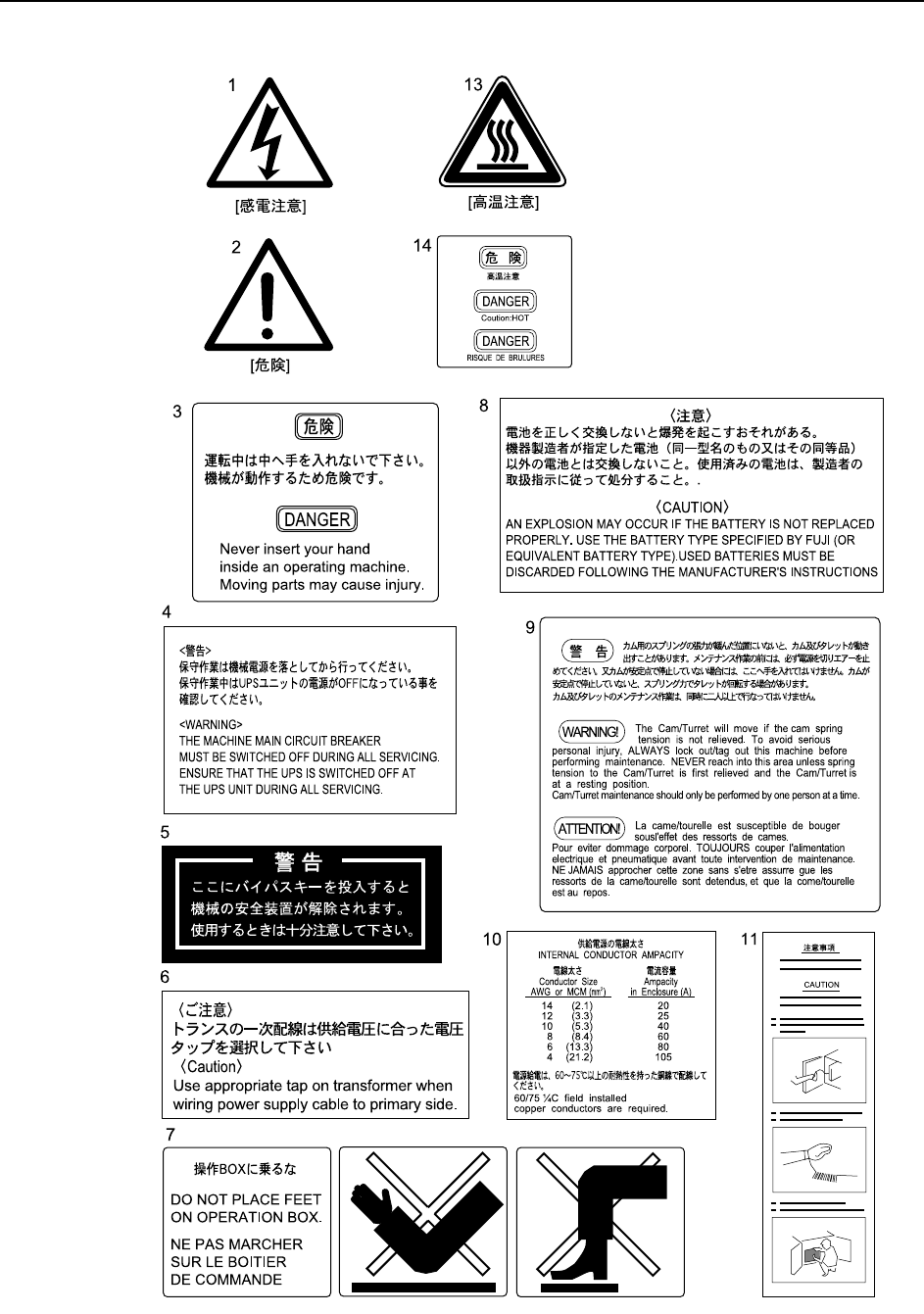

Safety >> Safety Labels
2-10
SYS-CP842-1.0E
C7SM0002
Safety >> The EMERGENCY STOP Buttons
SYS-CP842-1.0E 2-11
2.5 The EMERGENCY STOP Buttons
In the event of an emergency, press any of the red EMERGENCY STOP buttons
located on the machine at the positions indicated in the figure below.

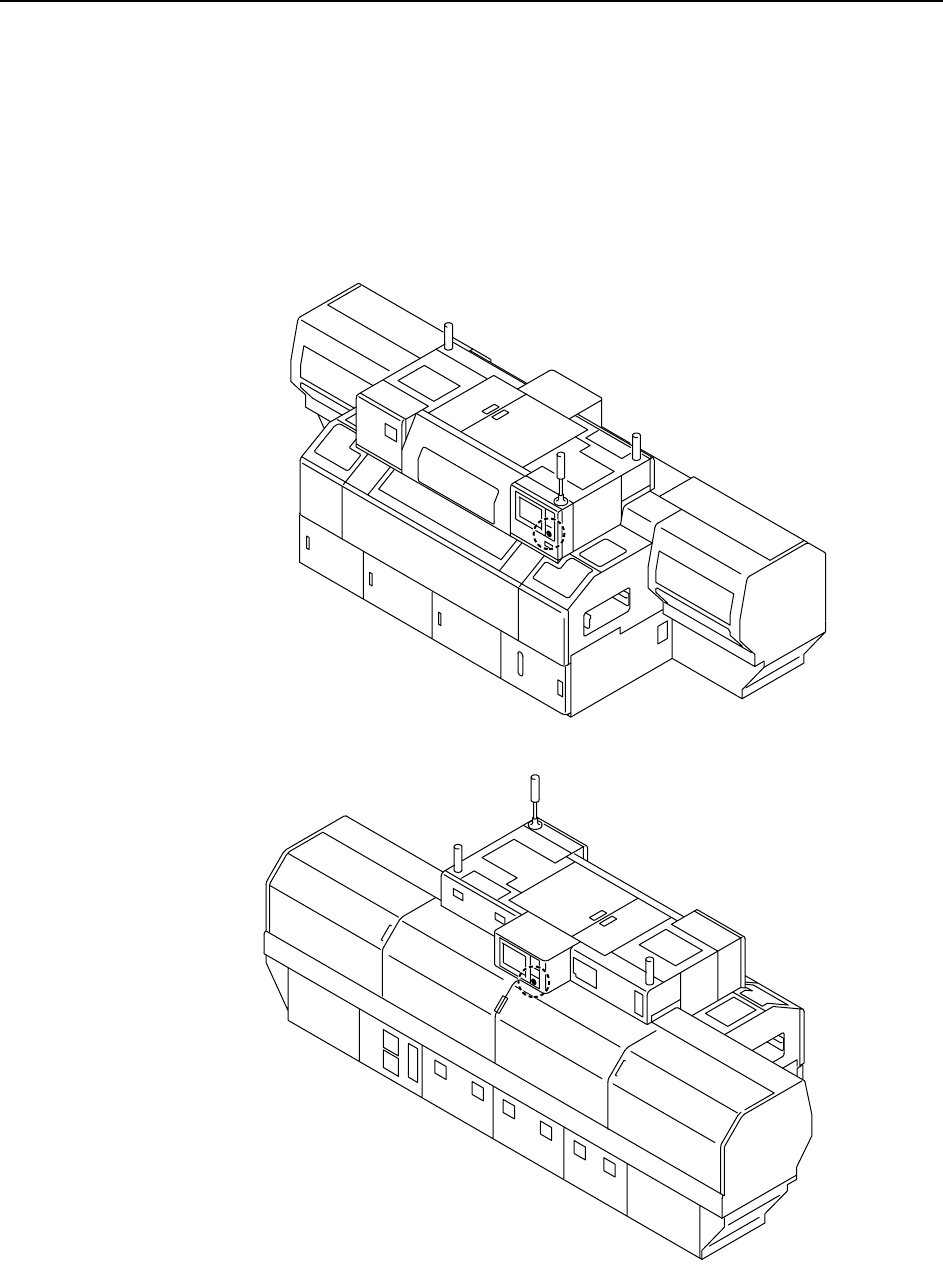

<CP-842E>
C74M0003
Front side
Rear side
Safety >> The EMERGENCY STOP Buttons
2-12
SYS-CP842-1.0E

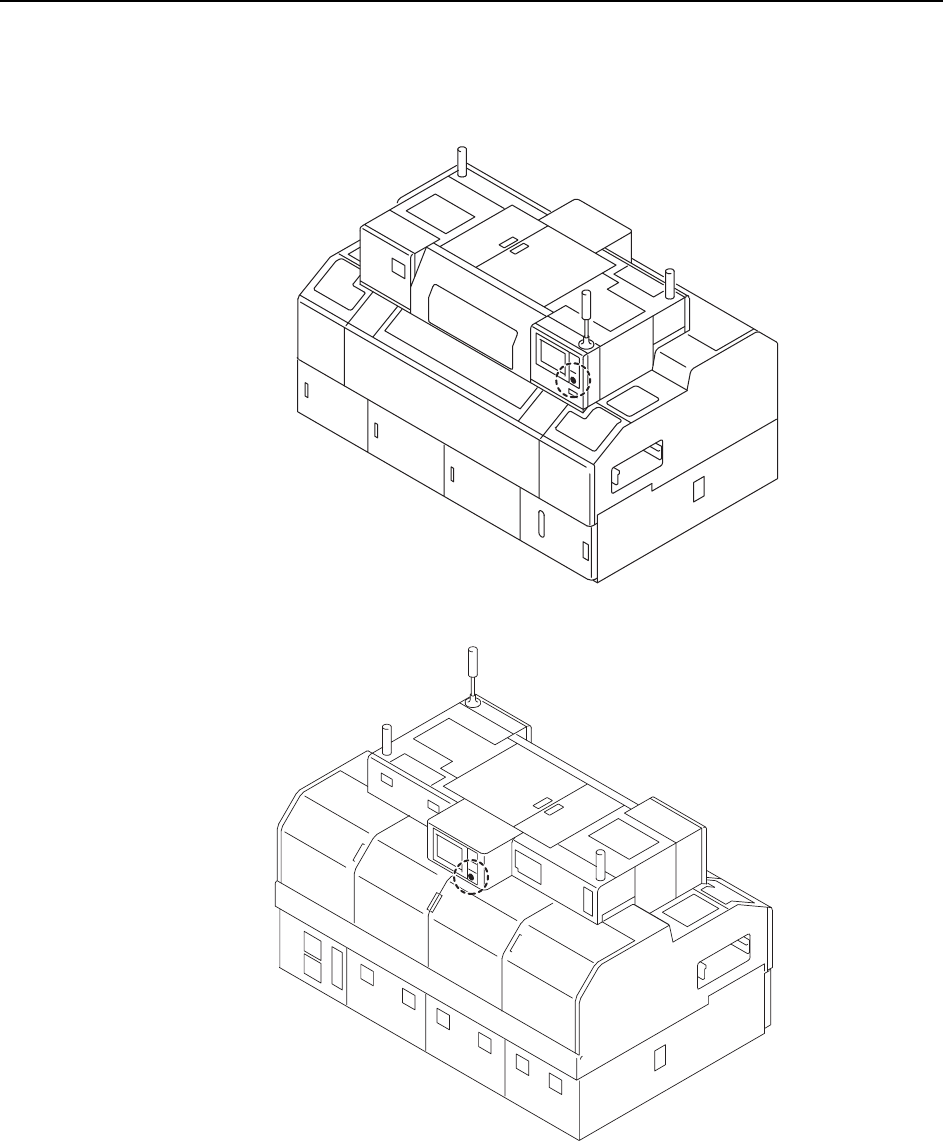

<CP-842ME>
C7SM0009
Front side
Rear side
