Machine System >> Basic Operation

SYS-CP842-1.0E 4-25

2 Under Next Device Trigger, select the event which will cause the machine to

switch to the next device.

3 Press [Close] to enter the settings and return to the [Basic Configuration]

screen.

Machine System >> Basic Operation

4-26

SYS-CP842-1.0E

Specifying Pick-up Offsets at the Machine

When a part cannot be successfully picked up using standard pick-up position offsets,

the operator can manually specify the offset at the machine.

Procedure

1 Press [Device Offsets] at the [Main] screen. The [Device Offsets] screen dis-

plays.

2 The XY orientation of the pick up position can be changed on the CP-842E/

842ME.

Under each slot number, the slot warning status and X and Y auto pick up offset

values display. Select a slot number on the device table displayed at the top of

the screen to display information for that slot (for CP-842ME, 1 to 40, for CP-

842E, 1 to 70). Press [Change] to toggle the display between Stage 1 and Stage

NoteY pick up offsets cannot be edited manually.

1. To clear auto pick up offsets, select [Auto pick up offset X] or [Auto pick up offset Y] for

the corresponding slot and push [Clear auto pick up offsets].

Machine System >> Basic Operation

SYS-CP842-1.0E 4-27

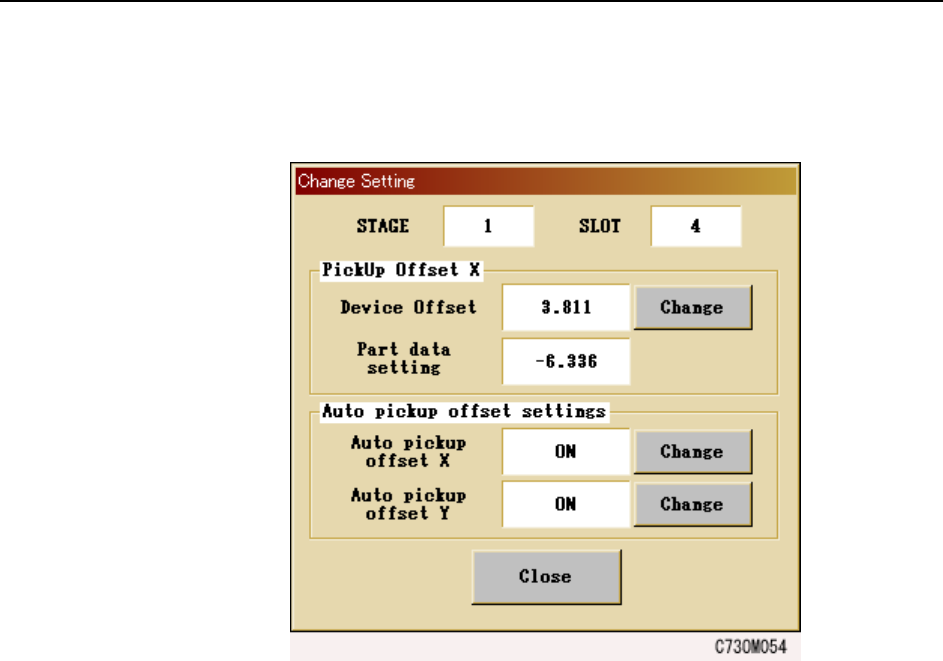

3 To manually change the X auto pick up offset values, select the slot number of

the slot to be changed, press [Settings] and the window shown below displays.

Push [Change] and enter the offset values via the numerical pad that displays.

Note: Pick up offset values set in part data and Auto pick up offset Y values cannot be

changed manually.

4 Whenever the auto pick up offset function for X or Y needs to be enabled or dis-

abled, press the [Change] button next to the [Auto pick up offset X] or [Auto pick

up offset Y] buttons. Select [OK] on the confirmation window that displays.

Note: When the [Auto pick up offset X] function is enabled, placing positions are reevaluated

and the necessary auto pick up offsets are performed, even when pick up offset val-

ues have been set in part data.
