Machine System >> Panel ID Read Function (Option)

SYS-CP842-1.0E 4-85

4.5.3 Settings for Panel ID (2D Code) Reading by

Mark Camera

Fujitrax-Profiler Settings

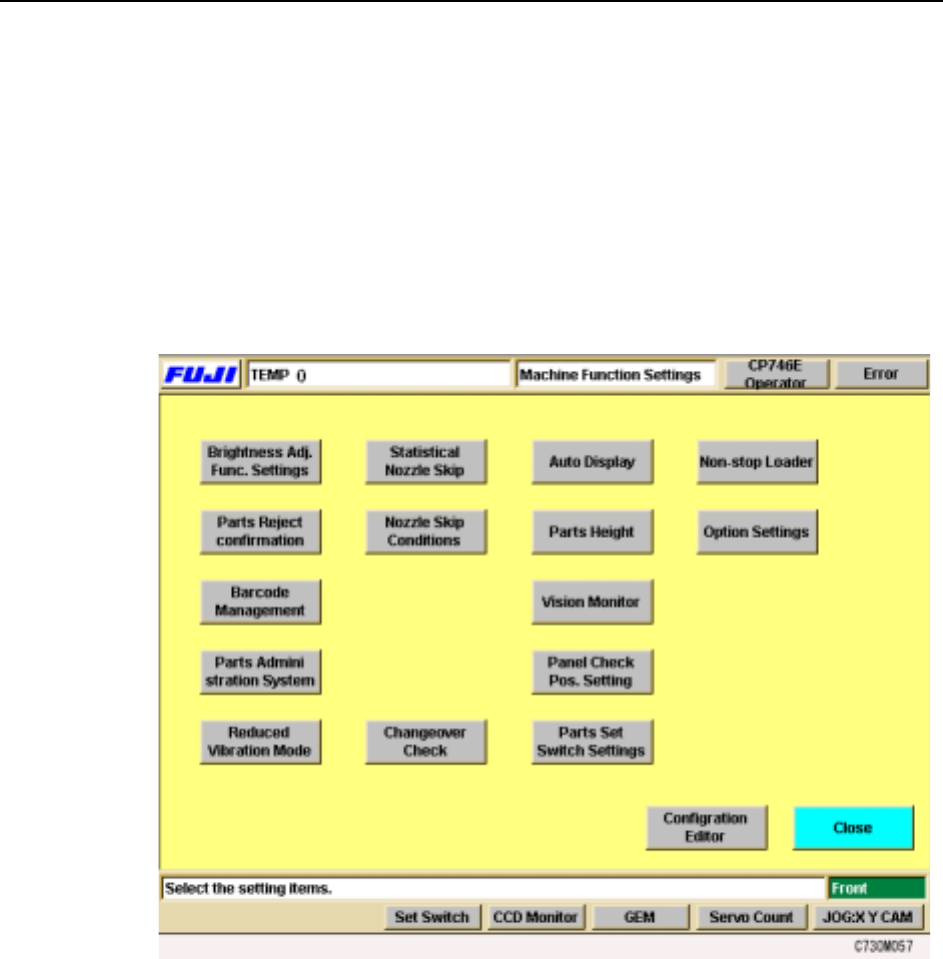

Select the [Maintenance] - [Configuration] - [Machine Function Settings] commands

to display the [Parts Administration System] setting screen.

Machine System >> Panel ID Read Function (Option)

4-86

SYS-CP842-1.0E

Click on the [Fujitrax-Profiler Settings] tab of the [Parts Administration System] set-

ting screen, then enter the host name and the IP address.

Items Explanation

Host name This button is used to set the Fujitrax-Profiler host name. Specify either a

host name or an IP address.

IP Address This button is used to set the IP address for the Fujitrax-Profiler host.

Specify either a host name or an IP address.

Machine System >> Panel ID Read Function (Option)

SYS-CP842-1.0E 4-87

4.5.4 Settings for Panel ID (1D Code) Reading by

Dedicated Barcode Reader

Setting the Connection Port No. For Barcode Reader Com-

munication

Note: On machines equipped with barcode readers, this setting is specified at the factory, and does

not require setting by the user.

Select the [Maintenance] - [Configuration] commands to display the [Barcode Manage-

ment] setting screen.
