The Machine >> Machine Overview
3-2
SYS-CP842-1.0E
3.1.2 Whats New About the Machine System
This machine uses a new style of interface and embedded control system which deliv-
ers a number of benefits to our users. At Fuji, we are calling equipment using this
system, ‘PCC machines’. PCC stands for ‘personal computer controlled’.

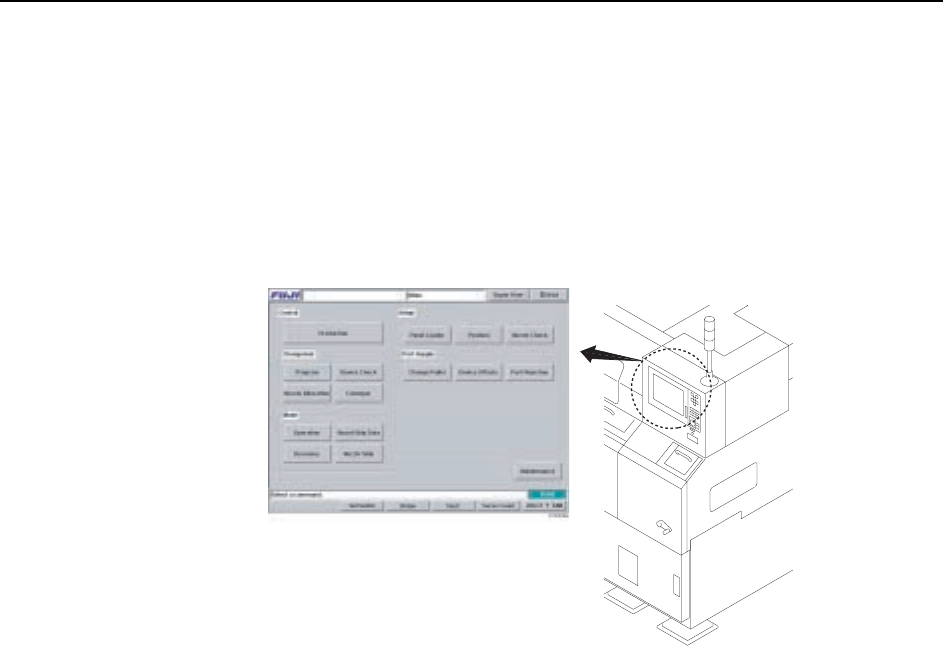

The most obvious difference from our older push button style machines is the touch
panel interface. The touch panel is a more intuitive, and easier to use for operators.
The machine control software is an application running on WindowsNT
TM
, installed on
the machine’s internal PC. This is connected to the touch panel, which now serves as
the input/output device for interaction with the operator.
By using a standard PC system, many features common to PC environments are now
part of Fuji’s machines.
• Software upgrades delivered on CD-ROM.
• Ethernet networkability.
• Storage of data on hard disk.
• Incorporation of functions such as the vision system and SECS/GEM protocol,
as software running on the main system.
C73OM009a
The Machine >> Machine Overview
SYS-CP842-1.0E 3-3
3.1.3 Machine Movement During Operation
The explanation below provides a description of machine movement from the point a
panel is loaded onto the in-conveyor to the point where the panel is unloaded from the
out-conveyor.
1 Panel check
When the START button is pressed, a check is made of whether a panel is present on
the conveyor.
2 Panel loading

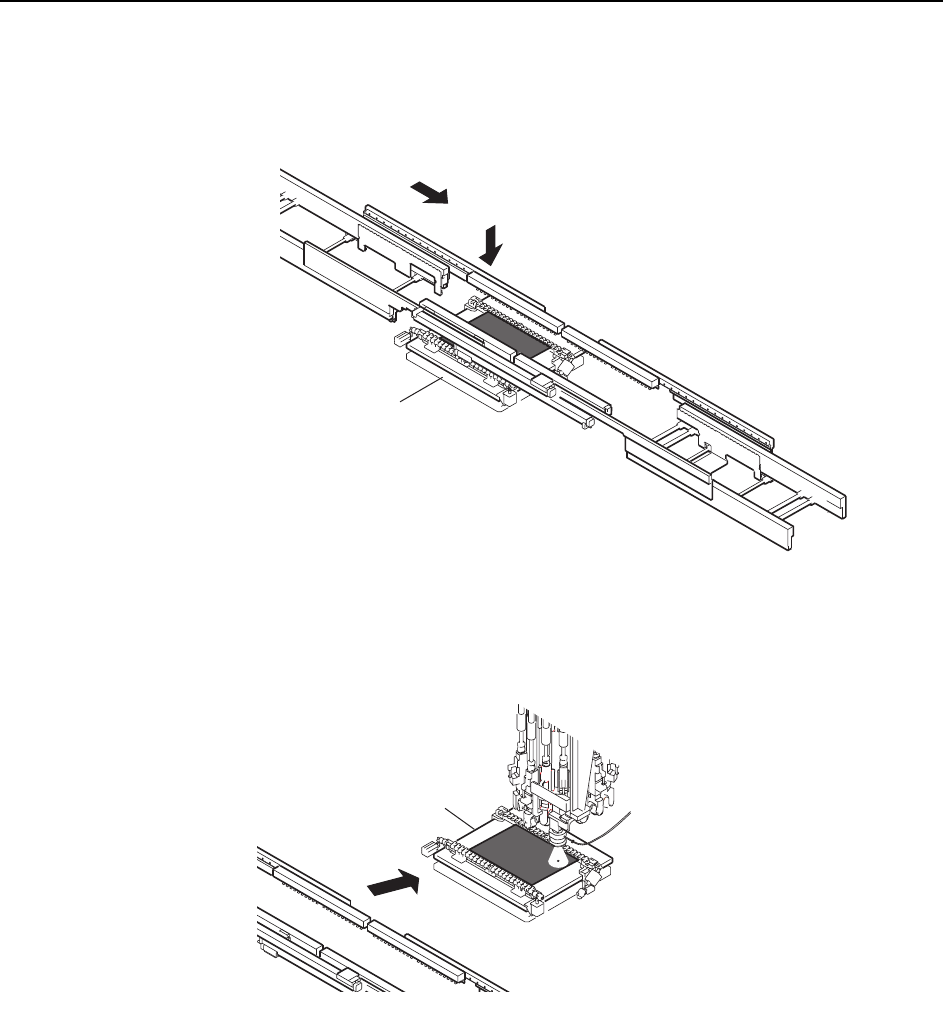

A panel is loaded onto the in-conveyor (A).
The loaded panel is then lifted and transferred to the in-carrier (B).
A
In-conveyor
Panel
B
In-carrier
The Machine >> Machine Overview
3-4
SYS-CP842-1.0E
3 Advance pick-up
The machine picks up parts in advance, while the panel is transferred from the in-con-
veyor to the in-carrier (C).
4 Mark reading

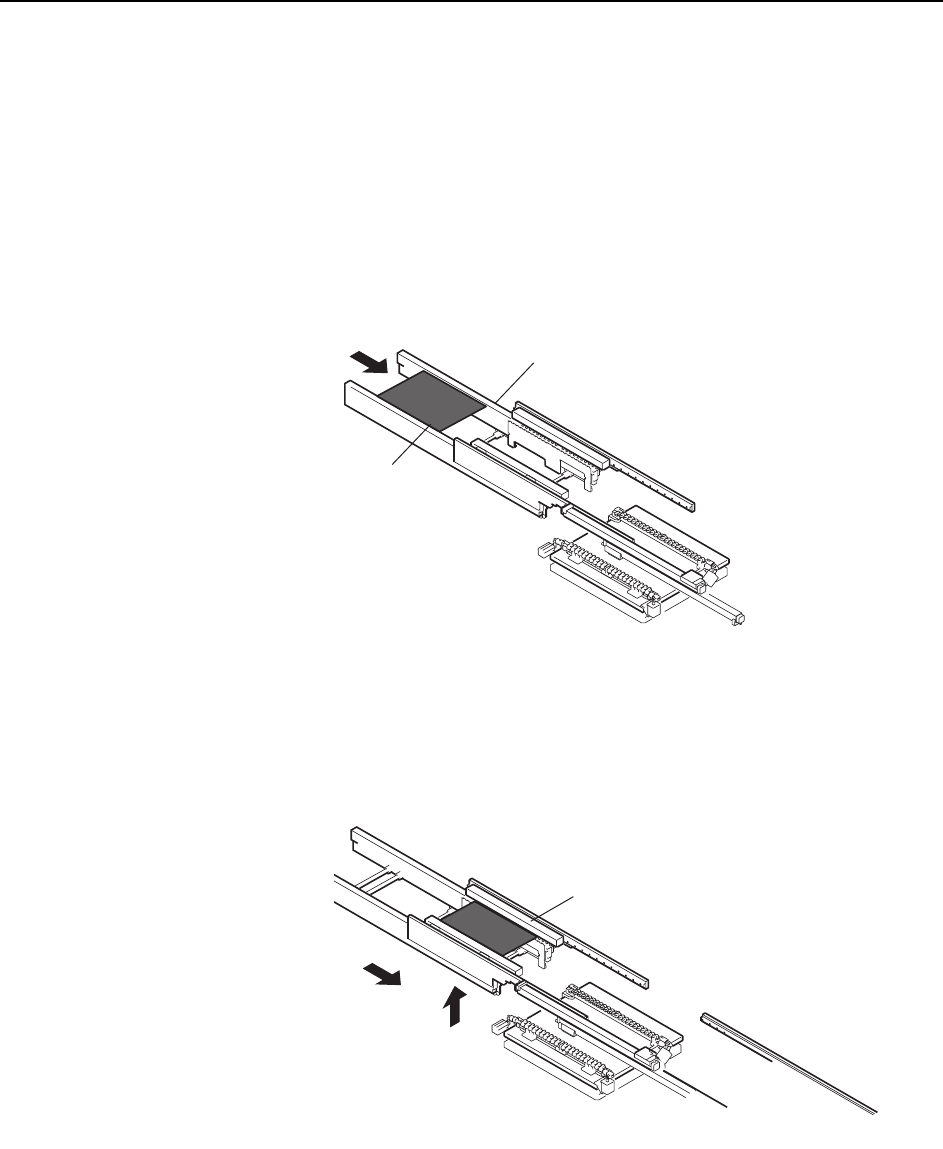

After the panel has been loaded onto the XY-table, the fiducial marks are read (D).
C
XY-table
D
G
o
to
&
W
illi
a
m
's
L
a
b
o
ra
tr
ie
s
XY-table
