Safety >> Safety Rules for Individual Machine Types SYS-CP842-1.0E 2-7 2.3 Safety Rules for Individual Machine T ypes 2.3.1 CP-842E/842ME WA R N I N G Do not insert hands or other body p arts into the co nveyor inl…
Safety >> Safety Rules for All Machine Types
2-6
SYS-CP842-1.0E
CAUTION
Do not operate the machine after removing or disabling sensors.
z Removing or disabling sensors will disarm the interlock,
leading to collisions and damage to the machine.
Check the machine display to determine whether HELPS com-
patible machines are in the middle of performing changeover.
z During operation in automatic mode on machines equipped
with automatic changeover equipment, it may be difficult
to actually see automatic changeover taking place from the
front of the machine. When a message appears at the
machine display, follow the instructions that are given.
Ensure to use the handle when opening or closing the safety
doors, fences or covers.
z Opening or closing the safety doors, fences or covers with-
out using the handle may result in injury to the hand.
z Opening or closing the safety doors, fences or covers with
force, without using the handle may result in damage to
the machine.
Safety >> Safety Rules for Individual Machine Types
SYS-CP842-1.0E 2-7
2.3 Safety Rules for Individual Machine Types
2.3.1 CP-842E/842ME
WARNING
Do not insert hands or other body parts into the conveyor inlets.
z Body parts may get caught in the machine resulting in injury.
Do not operate the machine when the front/rear cover has been
removed.
z Body parts may get caught in the machine resulting in injury.
Do not perform cam box maintenance with power to the machine on.
z Injury may result from electric shock if maintenance on the
cam box is carried out with the power to the machine on.
Caution required if cam is not at its origin (0°).
z Operators must ensure the cam is at its origin (0°) prior to car-
rying out any operations on the machine.
If the cam is not at its origin, recoil from springs used to drive
the placing heads may cause unexpected movement which is
potentially dangerous for the operator.
If an emergency stop occurs, the machine stops immediately.
In this case there is a strong possibility that the cam will not
be at its origin.
z If the cam is not at its origin when the machine stops, use the
cam handle to return it to its origin.
Do not stare into the laser beam.
(On machine fittied with laser type fiber sensors (class 2))
z Exercise extreme caution when working in areas where there
is a risk of eye damage from the laser beams.
Safety >> Safety Labels
2-8
SYS-CP842-1.0E
2.4 Safety Labels

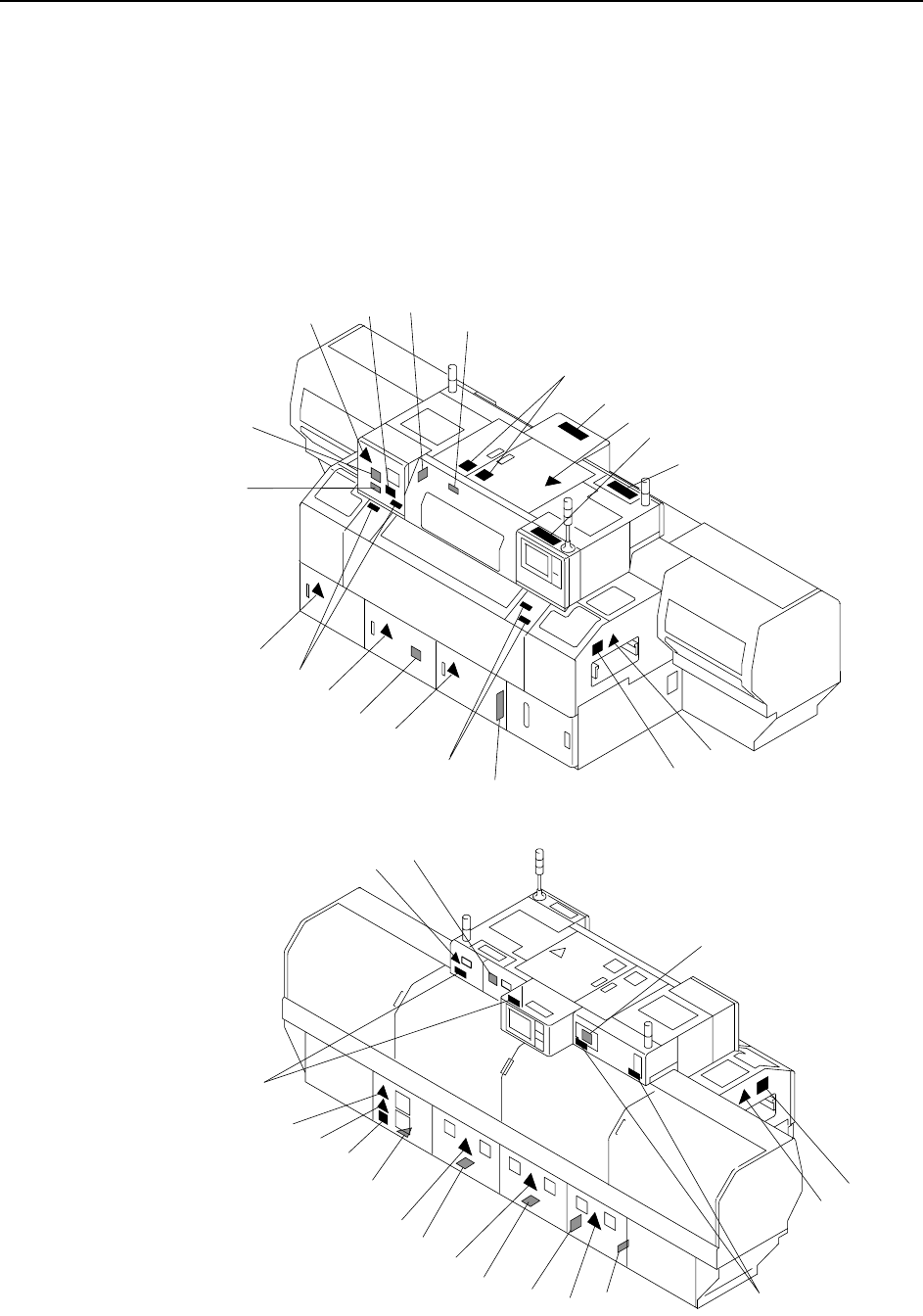

To warn the operator of hazards, safety labels are attached to the machine at the positions indicated
