The Machine >> Machine Overview
3-6
SYS-CP842-1.0E

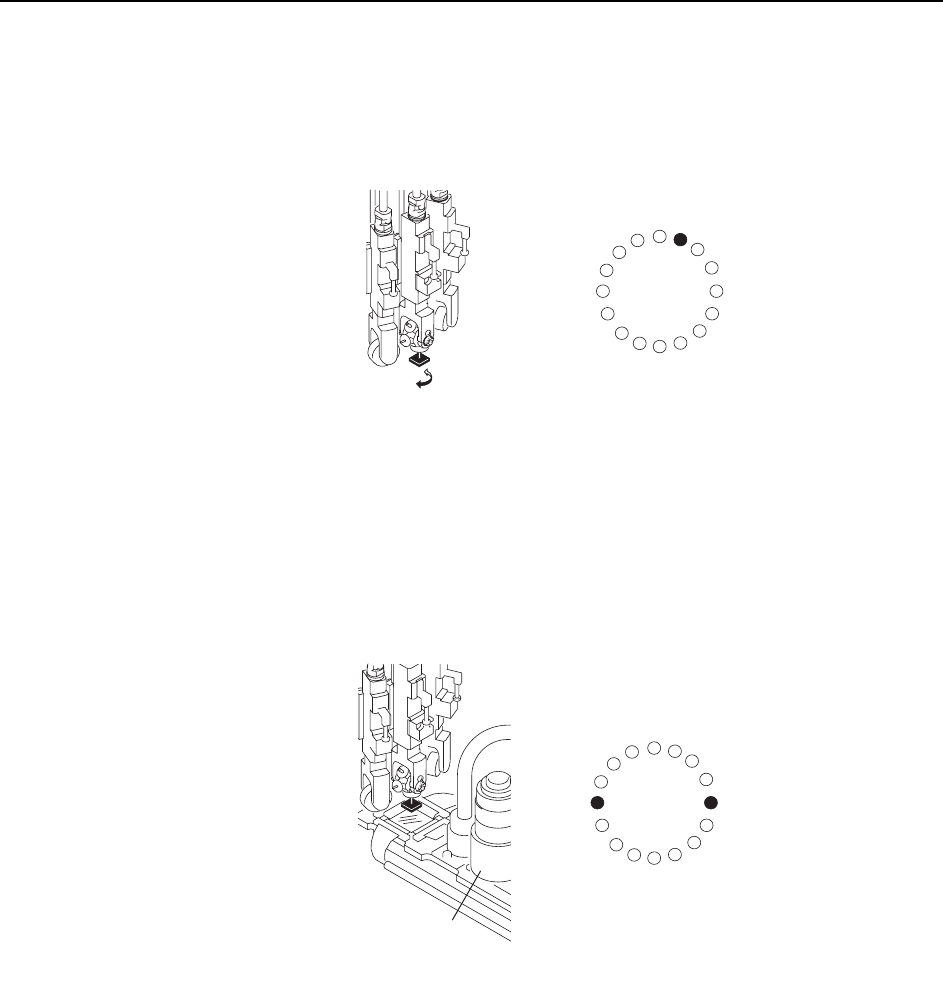

7 Pre-rotation
Pre-rotation is performed at station 2 (G).
8 Part inspection
At station 5 the part is inspected by the CCD camera (H).
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
G
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
H
Parts camera
The Machine >> Machine Overview
SYS-CP842-1.0E 3-7

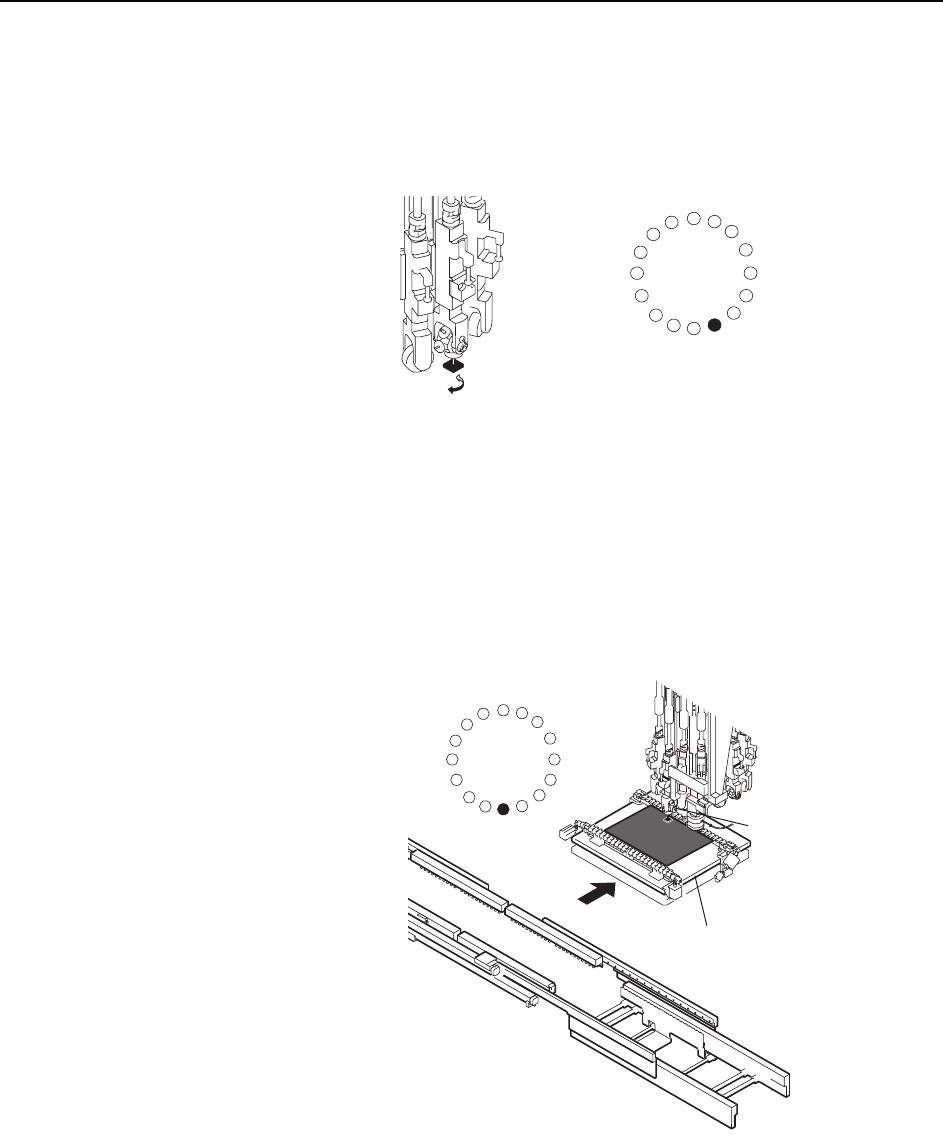

9 Fine Theta Adjustment
At station 8 final adjustments are made to the part angle (I).
10 Placement
Turret and XY-table movement coincide at station 9 for part placement (J).
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
I
C7SM1002a
J
XY-table
Placing head
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
The Machine >> Machine Overview
3-8
SYS-CP842-1.0E

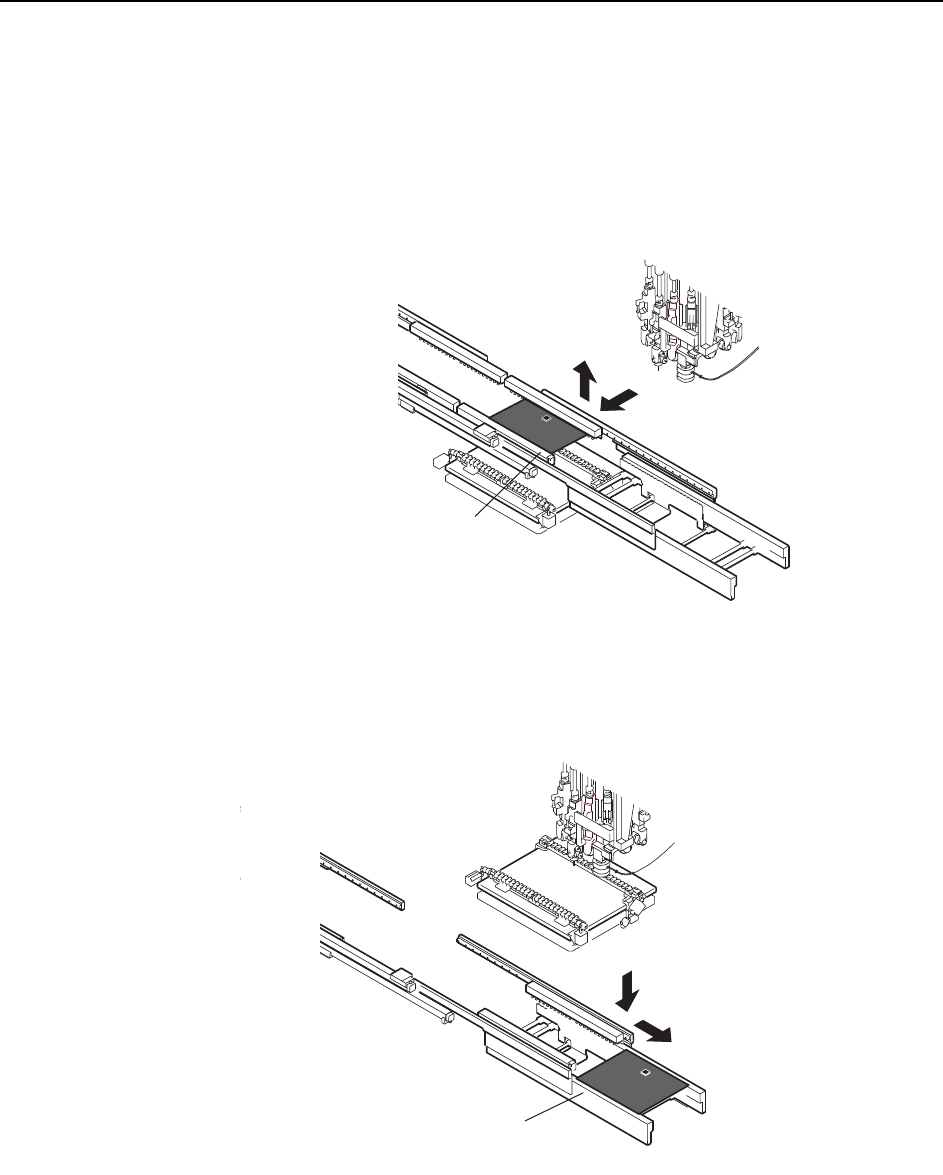

11 Panel unclamping and unloading
When population of the current panel(s) is complete, the XY-table moves to the out-
carrier.
At this position, the XY-table is raised and the panel is transferred from the table to
the out-carrier (K).
The out-carrier subsequently moves to the out-conveyor and the panel is lowered onto
the out-conveyor via the out-lifter. The panel is unloaded (L).
Note: This explanation describes single panel production. The double panel production option is the
same except for the use of stoppers to position the second panel at the in- and out-conveyor.
K
Out-carrier
L
Out-conveyor
C7SM1003a
