Machine System >> Basic Operation SYS-CP842-1.0E 4-45 Display wh en [ 16 Division ] is s elected CP7S2026E H10 N2 H10 N2 H14 N2 H14 N2 H2 N2 H2 N2 H6 N2 H6 N2 H1 1 N2 H1 1 N2 H15 N2 H15 N2 H3 N2 H3 N2 H7 N2 H7 N2 H…

Machine System >> Basic Operation

4-44

SYS-CP842-1.0E

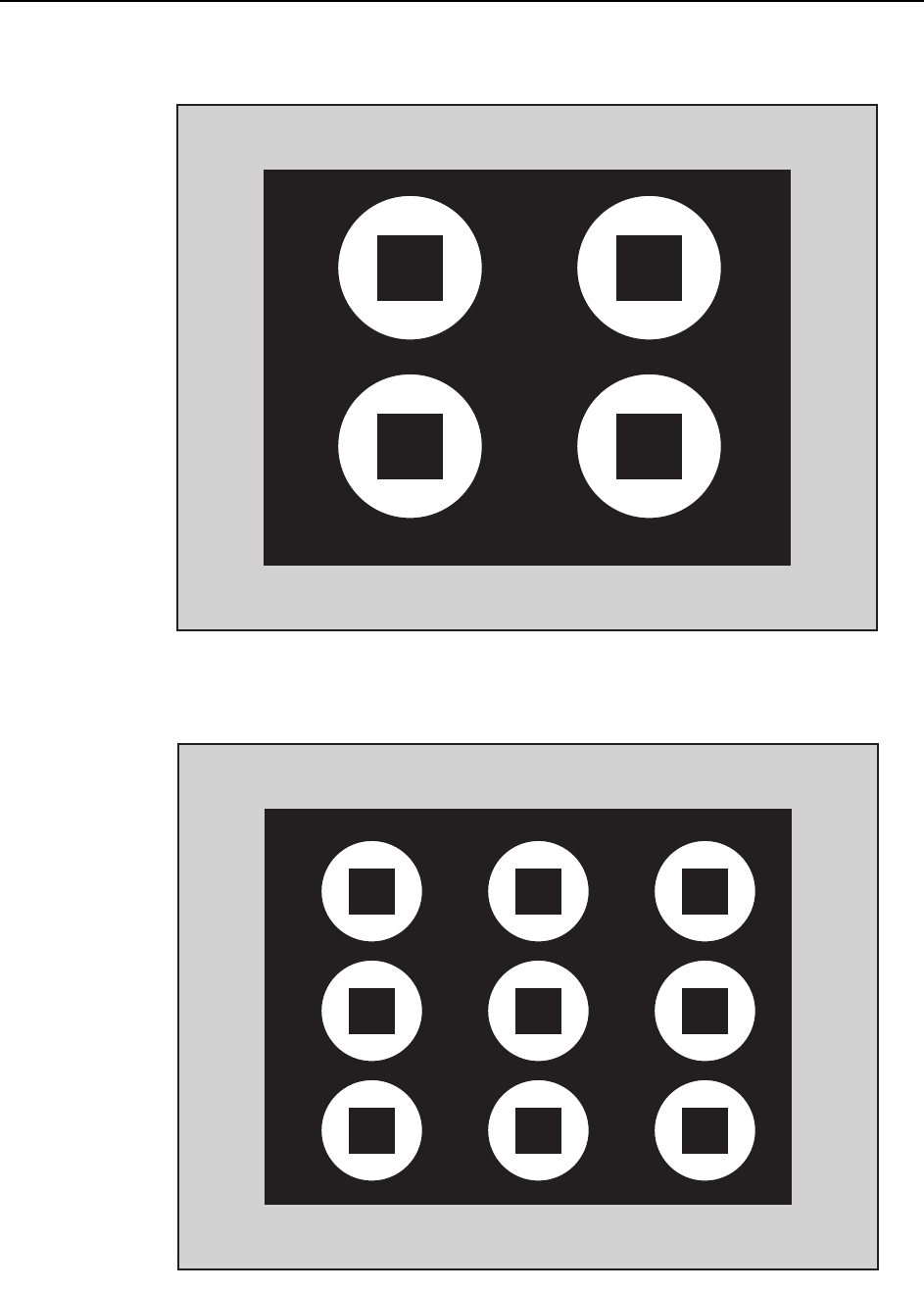

Display when [ 4 Division ] is selected

Display when [ 9 Division ] is selected

H8 N2 H9 N2

H6 N2 H7 N2

CP7S2024E

CP7S2025E

H1 N2

H4 N2

H7 N2

H2 N2

H5 N2

H8 N2

H3 N2

H6 N2

H9 N2

H1 N2

H4 N2

H7 N2

H2 N2

H5 N2

H8 N2

H3 N2

H6 N2

H9 N2

Machine System >> Basic Operation

SYS-CP842-1.0E 4-45

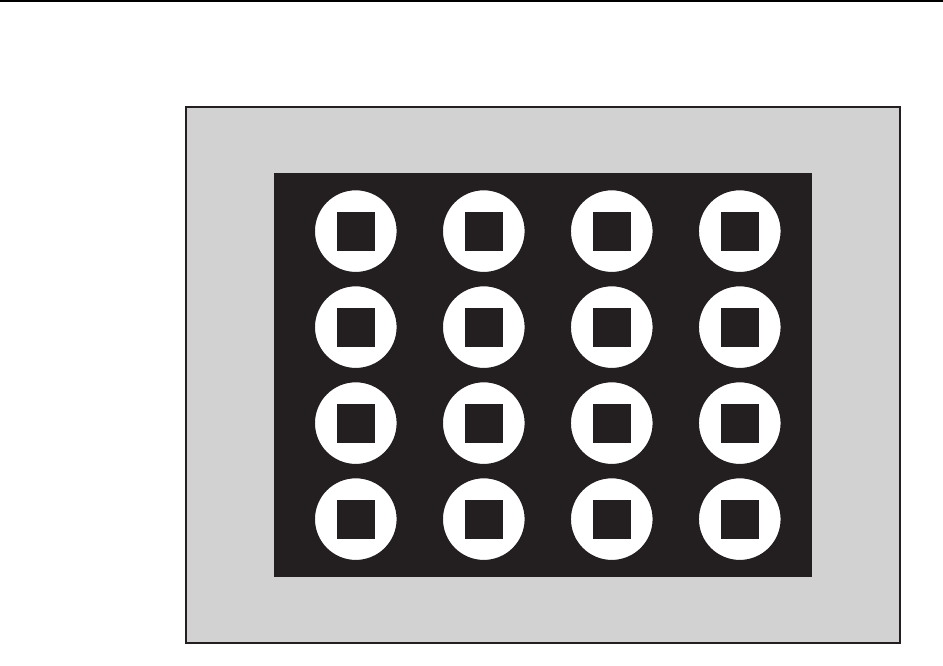

Display when [ 16 Division ] is selected

CP7S2026E

H10 N2

H14 N2

H2 N2

H6 N2

H11 N2

H15 N2

H3 N2

H7 N2

H12 N2

H0 N2

H4 N2

H8 N2

H13 N2

H1 N2

H5 N2

H9 N2

H10 N2

H14 N2

H2 N2

H6 N2

H11 N2

H15 N2

H3 N2

H7 N2

H12 N2

H0 N2

H4 N2

H8 N2

H13 N2

H1 N2

H5 N2

H9 N2

Machine System >> Editing Production Programs On the Machine

4-46

SYS-CP842-1.0E

4.2 Editing Production Programs On the Machine

4.2.1 Function Explanation

This function uses the machine’s vision processing function to check for deviations

between the panel pattern or mounted parts, and the data image (wire frame). It also

allows mark data, placement coordinates, and part data to be fine-adjusted on the

machine. This function uses “simulation” and “test placement” commands. The wire

frame, and the “simulation” and “test placement” commands are explained below.

Wire Frame

The wire frame tool provides a visual representation of the mark and part data which

is registered in a production program.

Fiducial marks: Draws the mark shapes and displays them on the monitor.

Block skip marks: Draws the mark images based on their X,Y sizes, and

displays them on the monitor.

Placement sequence: Draws the part shape and displays it on the monitor.

Simulation Command

Acquires an image of the part placement position without the part being placed, and

displays a wire frame representation on the monitor.

1 Fiducial mark sequence

•The panel’s mark pattern is compared with the wire frame to check for mark

pattern errors.

•The panel’s mark pattern is compared with the wire frame to check for reading

position deviations.

2 Block skip mark sequence

•The panel’s mark pattern is compared with the wire frame to check for reading

position deviations.

3 Placement sequence

•The panel pattern is compared with the wire frame to check for part placement

errors.

•The panel pattern is compared with the wire frame to check for placement

position deviations.

•The panel pattern is compared with the wire frame to check the part place-

ment angle.

Note: When a placement position image is acquired at a placement sequence, the placement

position is corrected based on the vision processing result from the fiducial mark read-

ing operation.
