The Machine >> Machine Overview
3-4
SYS-CP842-1.0E
3 Advance pick-up
The machine picks up parts in advance, while the panel is transferred from the in-con-
veyor to the in-carrier (C).
4 Mark reading
After the panel has been loaded onto the XY-table, the fiducial marks are read (D).
C
XY-table
D
G
o
to
&
W
illi
a
m
's
L
a
b
o
ra
tr
ie
s
XY-table
C7SM1001a
The Machine >> Machine Overview
SYS-CP842-1.0E 3-5

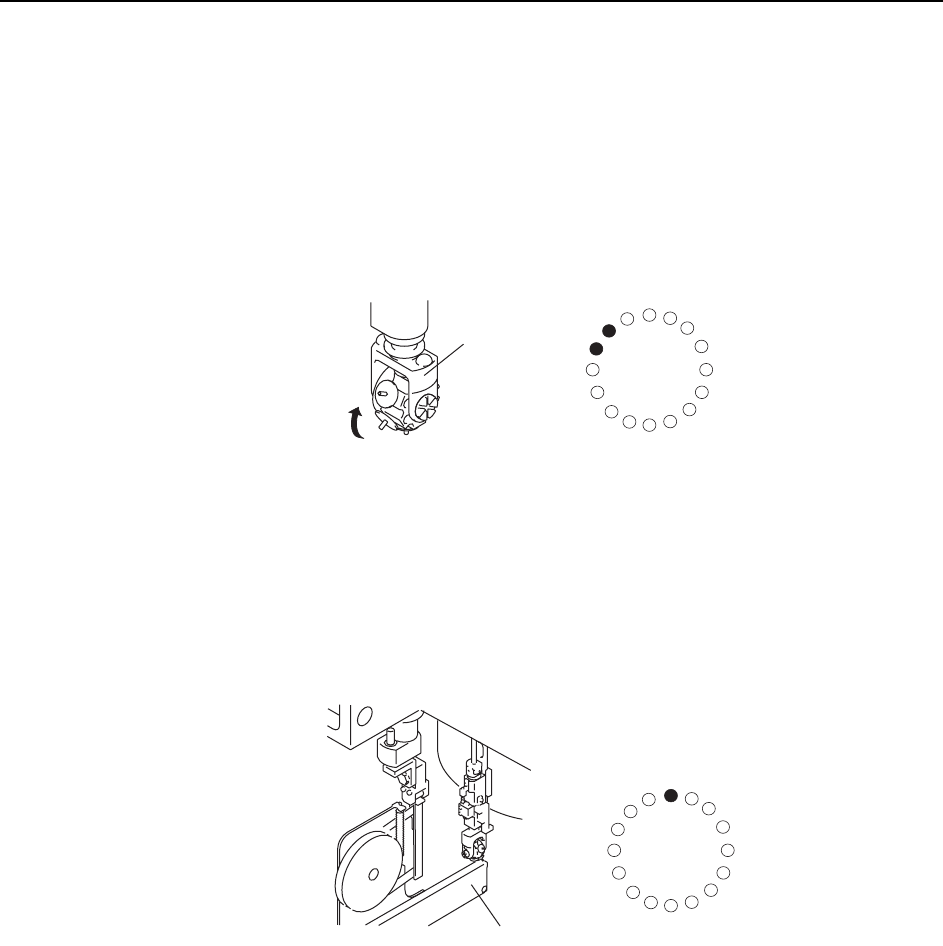

5 Nozzle change
A nozzle check is performed at Station 15 to establish which nozzle is currently down.
If a different nozzle is required for pick-up, the rotary head is indexed at station 14
until the required nozzle is in position.
Another check is performed at Station 15 to confirm that the correct nozzle is cur-
rently down (E).
6 Pick-up
When the selected nozzle reaches Station 1, the cam speed is adjusted and the nozzle
lowers to the pick-up position, stops and picks up the part. If pick up offsets in the Y
direction are necessary, the NY-axis performs the necessary movements prior to pick
up. (F)
E
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
Nozzle holder
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
F
Feeder
The Machine >> Machine Overview
3-6
SYS-CP842-1.0E
7 Pre-rotation
Pre-rotation is performed at station 2 (G).
8 Part inspection
At station 5 the part is inspected by the CCD camera (H).
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
G
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
H
Parts camera
