Machine System >> Maintenance Mode SYS-CP842-1.0E 4-83 4.4.3 Maintenance Mode St atus Movement between Standard Mode and Mainte nance Mode occurs as shown in the fig- ure below . 1 Standard Mode (Status “1”): Opera…
Machine System >> Maintenance Mode
4-82
SYS-CP842-1.0E
4.4.2 Entering Maintenance Mode
Procedure
1 Open the front safety doors and turn the Maintenance key to the ON position.

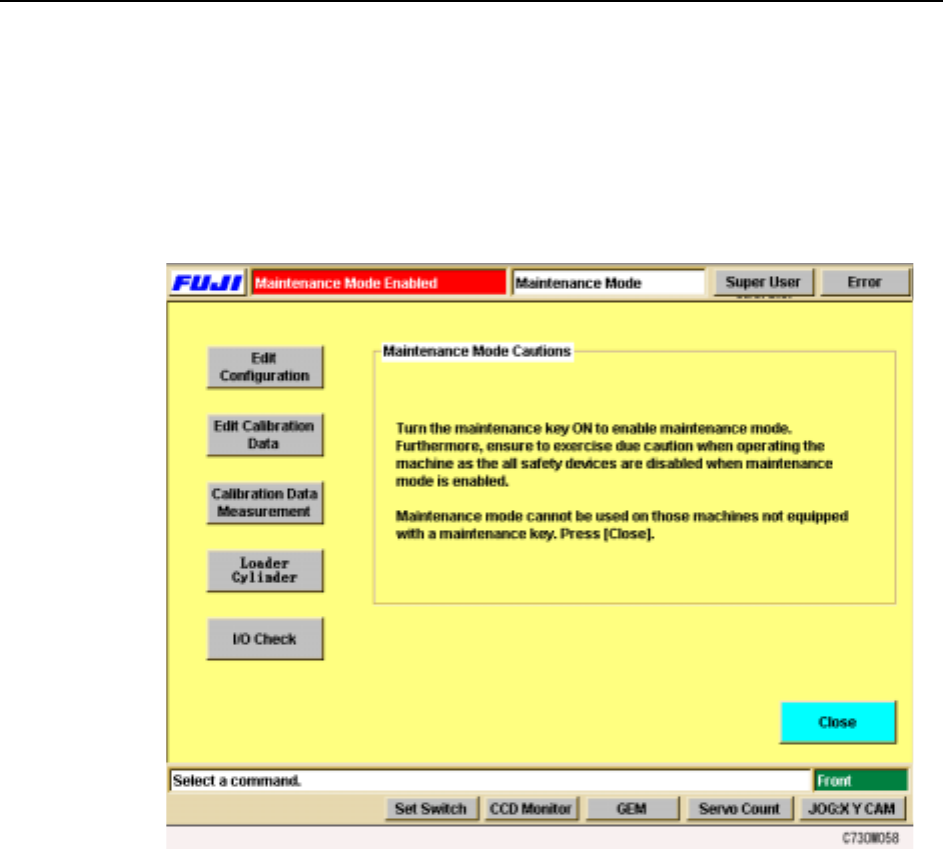

2 In the [Main] screen, select [Maintenance] then [Maintenance Mode]. The
[Maintenance Mode] screen displays.
Note: During Maintenance Mode, “Maintenance Mode” displays and flashes in the
production program name area.
3 Select the necessary maintenance operation command from [Edit Configura-
tion], [Edit Calibration Data], [Calibration Data Measurement], [Loader Cylin-
der] and [I/O Check] and perform the adjustment or maintenance.
4 When finished, press the [Close] button and the [Maintenance] screen returns.
Machine System >> Maintenance Mode
SYS-CP842-1.0E 4-83
4.4.3 Maintenance Mode Status
Movement between Standard Mode and Maintenance Mode occurs as shown in the fig-
ure below.
1 Standard Mode (Status “1”):
Operation commands other than Maintenance Mode commands are performed.
The Maintenance Key is set to OFF and the [Maintenance Mode] screen is not
displayed.
2 The Maintenance key is set to ON but the [Maintenance Mode] screen is not
displayed (Status “2”):
An error occurs. At this stage, the error cannot be cleared. Either move the
Maintenance key to OFF and return to Standard Mode (Status “1”) or clear the
error after displaying the [Maintenance Mode] screen (Status “4”).
3 The [Maintenance Mode] screen is displayed but the Maintenance key is set to
OFF (Status “3”):
An error occurs. At this stage, the error cannot be cleared. Move the Mainte-
nance key to ON and switch to Maintenance mode (Status “4”) or leave the
Maintenance key set to OFF, close the [Maintenance Mode] screen, return to
Standard Mode (Status “1”) and clear the error.
4 Maintenance Mode (Status “4”)
Maintenance Mode operations can be performed.
1RGTCVKQP2CPGN0QTOCN
/CKPVGPCPEG-G[1HH
1RGTCVKQP2CPGN0QTOCN
/CKPVGPCPEG-G[1P
1RGTCVKQP2CPGN/CKPVGPCPEG/QFG
/CKPVGPCPEG-G[1HH
1RGTCVKQP2CPGN/CKPVGPCPEG/QFG
/CKPVGPCPEG-G[1P
5VCPFCTF/QFG
/CKPVGPCPEG/QFG
'TTQT5VCVWU
'TTQT5VCVWU
/CKPVGPCPEG-G[
1HH
/CKPVGPCPEG-G[
1P
/CKPVGPCPEG-G[
1HH
/CKPVGPCPEG-G[
1P
/CKPVGPCPEG/QFG5ETGGP
1RGP
/CKPVGPCPEG/QFG5ETGGP
%NQUG
/CKPVGPCPEG/QFG5ETGGP
1RGP
/CKPVGPCPEG/QFG5ETGGP
%NQUG
%1/
Machine System >> Panel ID Read Function (Option)
4-84
SYS-CP842-1.0E
4.5 Panel ID Read Function (Option)
This manual describes the panel ID reading function, and explains how to use this
function.
4.5.1 Function Explanation
This function assigns a unique ID to each panel (or board) for the purpose of traceabil-
ity. Panels are identified with either 2D codes or barcodes.
The fiducial mark camera reads 2D codes, and a barcode reader mounted on the in-
conveyor reads barcodes.
Note, however, that not all versions of the machine control software are compatible
with the panel ID read function.
4.5.2 Glossary of Terms
Term Explanation
Verification This function checks the part type on the device table
against the recipe to ensure that the correct part type is
being used.
Device check This refers to the entire check sequence (including
Verification of each device) which is performed to verify that
the devices are ready for production.
FIDL Feeder ID number.
DID Whereas the device comment indicates the part type,
theDID indicates the ID number of each parts reel. Even if
two reels contain the same part types (=device comments),
each reel must have a different DID.
Panel ID When multiple boards are contained within a single panel, or
when multiple boards are conveyed on a single pallet, a
unique Board ID is assigned to each of the individual boards
on the panel or the pallet.
Dedicated barcode reader This is the dedicated panel ID barcode reading sensor
mounted on the in-conveyor. The term “dedicated” is used
because this reader is not used together with the mark
camera. It is also referred to as the “fixed barcode sensor”.
Reading trigger sensor This sensor is used to trigger the panel ID reading by the
barcode reader. Reading occurs when the panel on the in-
conveyor passes beneath this sensor. This sensor is also
referred to as the “fixed panel check sensor”.
