Machine System >> Basic Operation
SYS-CP842-1.0E 4-5
4.1.2 Selecting a Production Program
Production programs are held in the machine background, or at the host. A program
must be in the foreground to be used for assembly. The production program at Cur-
rent Program is in the foreground, other programs held at the machine list under
Background Programs are in the background. You can select the production program
to be used in production by carrying out the following procedure or transmit straight
from the host to the machine foreground (refer to your host system documentation for
details of this procedure).
Procedure
1 With the machine booted up and the desired program already transmitted to the
machine, press [Program] at the [Main] screen.

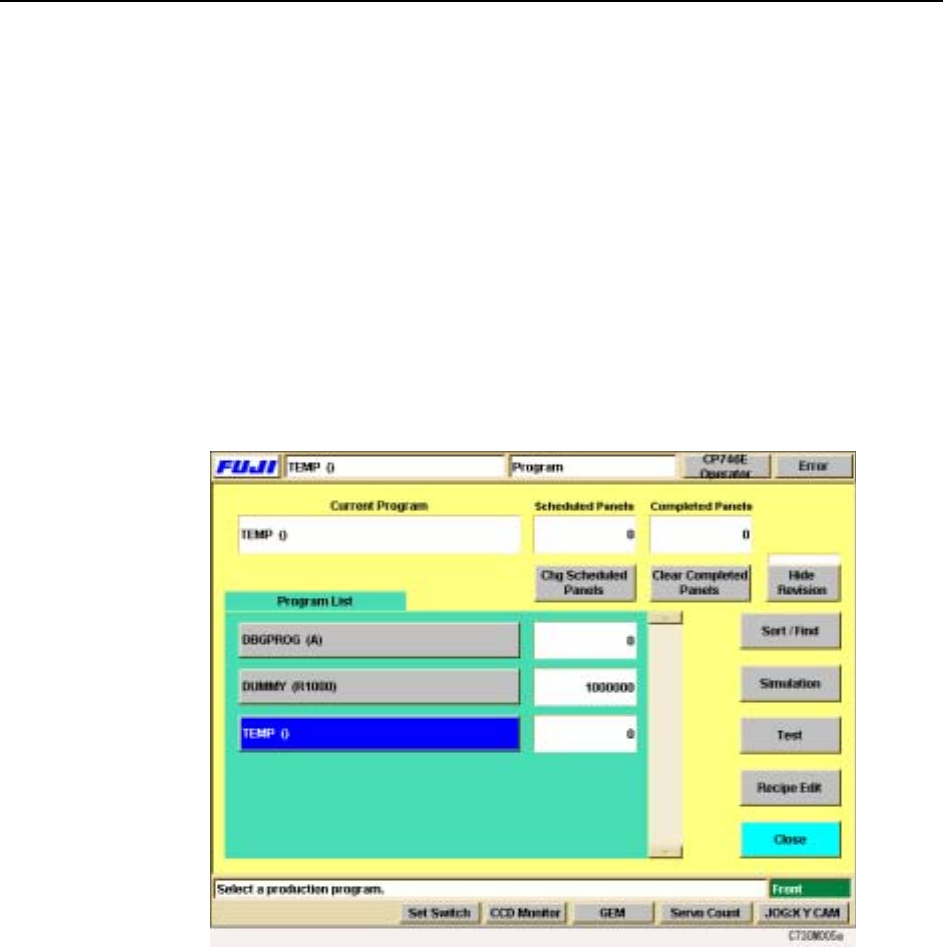

The [Program] screen displays, showing a list of the all the programs currently
held at the machine.
Note: The production programs are held in the machines hard drive. The number of programs
which can be stored is limited only by the amount of hard disk space available. Scroll down
to view the full list of programs.
Machine System >> Basic Operation
4-6
SYS-CP842-1.0E

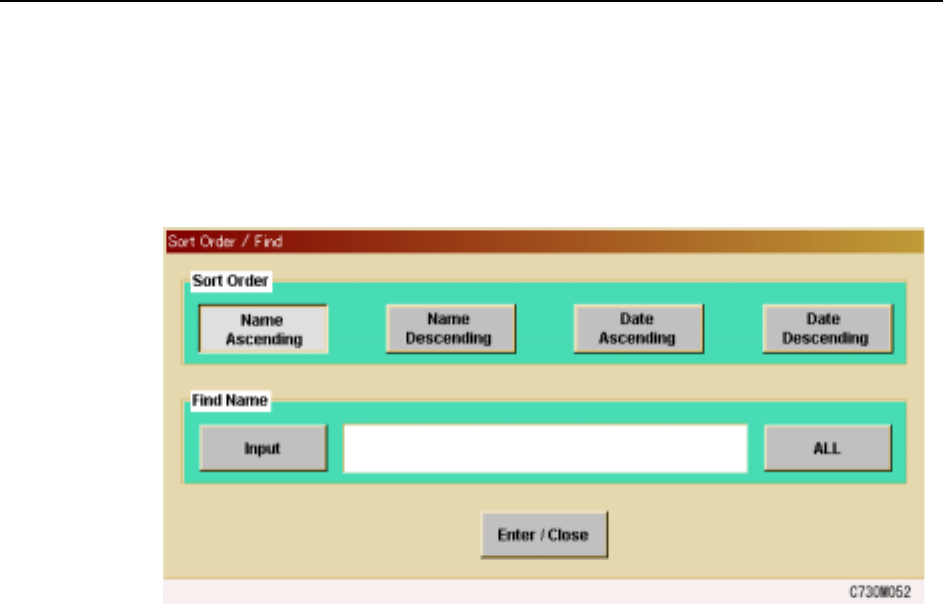

2 The [Sort Order/Find] function can alter of the order of the program list held at
the machine. It can also search the list by program name. To alter order of the
program list, select the type of ordering from the choices in the [Sort] section. To
display program names that contain a particular word string, select [Input] and
use the virtual keyboard to enter the word string. When finished, push the
[Enter/close] button.
Note: To display all programs again after using the search function, press [All] in the
[Sort Order/ Find] box.
3 Press [OK] after selecting the program to be used in production. The name of
the selected program now displays at “Current Program” (the machine fore-
ground).
4 Press [Close] to return to the [Main] screen.
Machine System >> Basic Operation
SYS-CP842-1.0E 4-7
4.1.3 Modes of Running the Machine
The machine has settings which allow the user to set how the machine runs. These
settings are divided into Operation modes and Production modes. The standard com-
bination of modes used during assembly is Operation set to Production, and Produc-
tion mode set to Automatic. The other modes facilitate testing of machine operation
and production programs.
Setting the Operation Mode
The machine has five modes of operation, Production, Idle, Idle operation with loading
Idle operation without pickup and Pass. These modes of operation have different pur-
poses as is explained below.
Production: This mode is used during assembly. Parts are picked
up, part inspection is performed, and the parts are
placed on the panel.
Idle: This mode is used primarily for adjustments and test
runs. Operation is identical to that which occurs in the
Production mode, except that panel changes and vision
processing do not occur. When using the idle mode,
there must be no feeders at the feeder pallets.
Idle operation with loading: This is the Idle mode with the addition of loader move-
ment performed by the loader. When using this mode,
there must be no feeders at the feeder pallets.
Idle operation without pickup:Operates in the same manner as the standard idle
mode except that pickup is not performed.
Note: Both Idle operation with loading and Idle operation without pick up can be selected at the
same time.
Pass: Pass mode is used when the machine is not used in cur-
rent production. In pass mode the machine simply acts
as a conveyor, moving the panel on to the next machine
in the line.
Procedure
1 Press [Operation] at the [Main] screen, the [Operation] screen displays.
2 Select the desired operation mode by pressing either [Production], [Idle] or
[Pass].
Production
Operation Mode
Pass
Idle
C7SS2003
