1-43 3.3.1 1 Nozzle Stocker Section Nozzle Storage Section Every Month Cleaning Suck dirt and dust wit h a vacuum cleaner . Nozzle Stocker Sliding Area Every 3 Months Cleaning and Lubrication (DAPHNE EPONEX GREASE No. 1)…
1-42

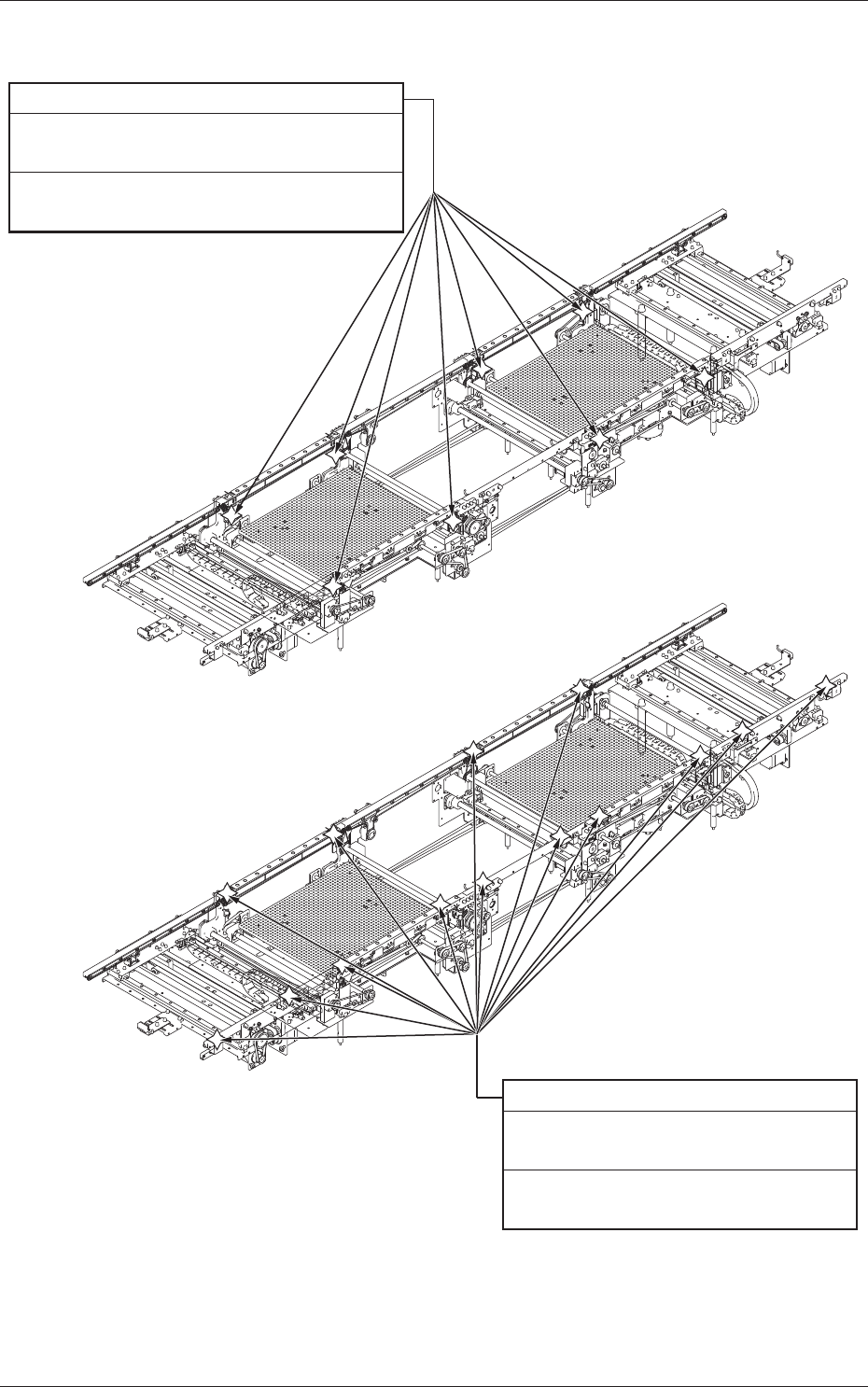

PCB Detection Sensors (14 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a
rag.
Support Pin Detection Sensors (8 places)
Every Week Cleaning
Required Time: 1 minute
Clean the support pin detection sensors with
a rag.
Fig. 4A32
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
1-43

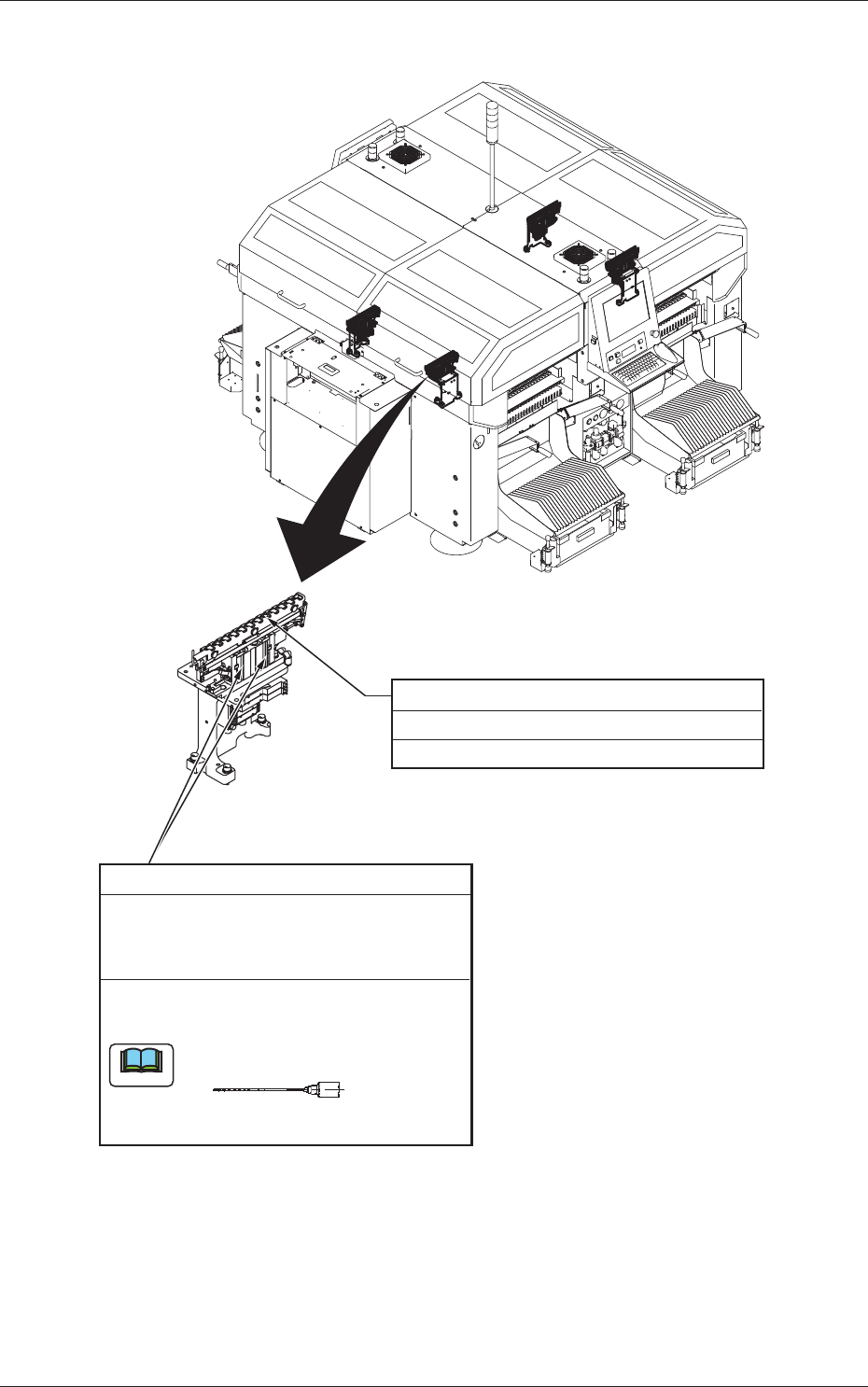

3.3.11 Nozzle Stocker Section
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust wit
h a vacuum cleaner.
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease wit
h a
syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Fig. 4A33
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
1-44

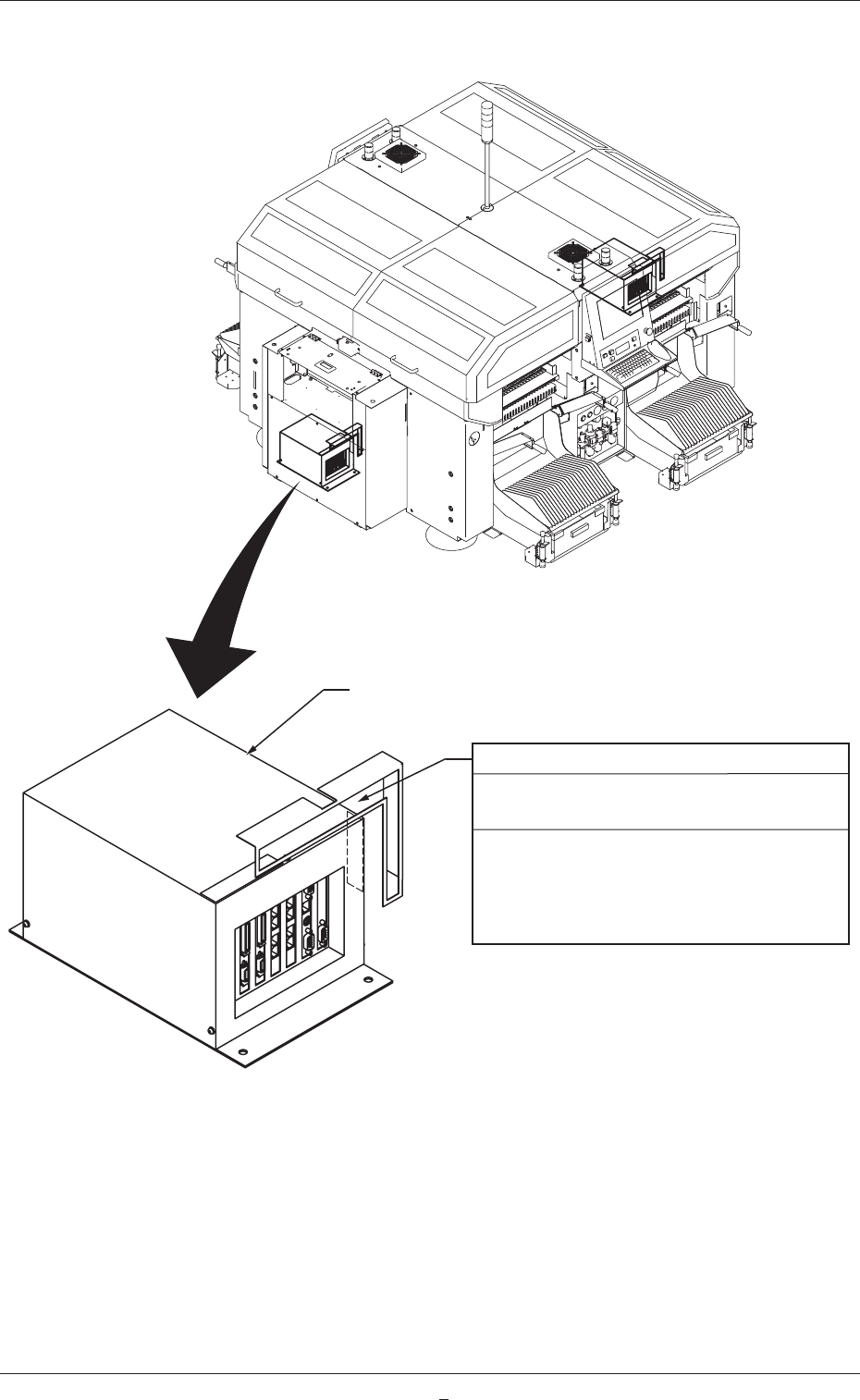

3.3.12 Control Box Section
Filter (2 places)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the dust filter fixed with the
magnet.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
CPU-2
Fig. 4A34
3.3 Inspection, Cleaning, and Lubrication Spots
0811-003
