3.2 List of Machine Information
Machine
Information Codes
Display Field A (Scope of Machine Information)
Display Field B (Details of Machine Information)
809301 Conveyor upper cover opening and closing
Input conveyor upper cover opened.
809302 Conveyor upper cover opening and closing
Input conveyor upper cover closed.
809303 Conveyor upper cover opening and closing
Output conveyor upper cover opened.
809304 Conveyor upper cover opening and closing
Output conveyor upper cover closed.
809305 Conveyor upper cover opening and closing
Input machine conveyor upper cover opened.
809306 Conveyor upper cover opening and closing
Input machine conveyor upper cover closed.
809307 Conveyor upper cover opening and closing
Output machine conveyor upper cover opened.
809308 Conveyor upper cover opening and closing
Output machine conveyor upper cover closed.
809401 P.C.B existence
The P.C.B which carried out manual bypass to the input conveyor was detected.
809402 P.C.B existence
The P.C.B on a output conveyor was removed.
809501 Conveyor forbidden operation signal detected
The input conveyor changed into the forbidden state of operation.
809502 Conveyor forbidden operation signal detected
The forbidden operation state of the input conveyor of was canceled.
809503 Conveyor forbidden operation signal detected
The output conveyor changed into the forbidden state of operation.
809504 Conveyor forbidden operation signal detected
The forbidden operation state of the output conveyor of was canceled.
809701 P.C.B Stopper
It is set as "not use" of a positioning stopper in the system data. Please confirm
whether there is a stopper.
809702 P.C.B Stopper
It is set as "not use" of a positioning stopper in the system data. Please confirm
whether there is a stopper
.
809801 Feeder alternate condition is disable.
Original and alternated feeders have had pickup errors and they are under
disabled status. After finding the cause of pickup errors, go to the main menu,
then [OPERA
TION], [Altn Mode], select feeder lane number, enable feeder(s)
to clear disabled status, go back to the main menu and press the start button to
resume.
2-250707-001
4. "ERROR" Windows
When the machine detects an error, the following "ERROR" window opens.
[6]
[1]
[9]
[8]
[10]
[3] [5]
[4]
[2]
[7]

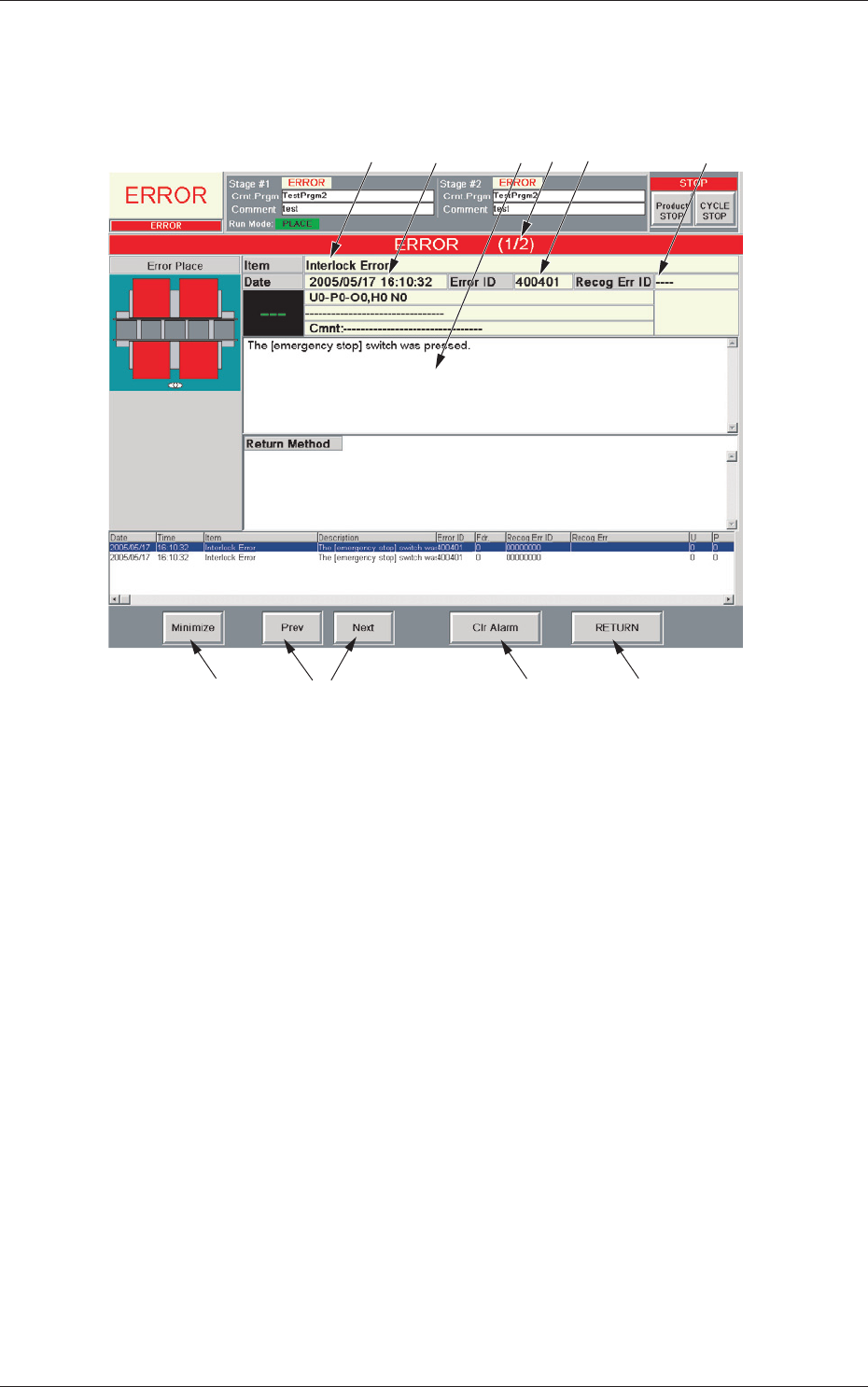

Fig. 4B4 Example of "ERROR" Window
[1] Error ID
Displayed is a string of alphanumeric characters (6 characters) that
identifi es an error.
When an error has occurred, use the error ID as an index and refer to
"Chapter 3 Troubleshooting from Error IDs" (Vol. 4) for details.
[2] Recog Err ID
Displayed is a string of alphanumeric characters (8 characters) that
identifi
es an error.
When an error has occurred, use the error ID as an index and refer to
"Chapter 4 Troubleshooting from Recognition Error IDs" (Vol. 4) for
details.
[3] Item
Displayed is a name of the classified element that caused an error.
[4] Description
Displayed are the contents of the error and Return Method (Remedial
Procedure).
4. "ERROR" Windows
2-260707-001
[5] Date and Time
Displayed are the date and time of error occurrence.
[6] Number of Pages
Displayed are the total number of pages and the number of the curren
page.
Example:
(3/5)
Total Number of Pages : 5
Number of Current Page : 3
[7] [Prev] and [Next] Buttons
[Prev] Button : When pressed, this button opens the previous page.
[Next] Button :
When pressed, this button opens the next page.
[8] [Clr Alarm] Button
When pressed, this button cancels an alarm sound only.
[9] [RETURN] Button
When pressed, this button cancels an alarm sound and closes the
"ERROR" window
. The original window resumes.
[10] [Minimize] Button
When pressed, this button minimizes the "ERROR" window and moves
to the bottom left of the window
.
Double
-click the minimized window to return it to the size before it was
minimized.
•
Reset Procedure from "ERROR" Window
(1) Take a note of "Error ID", "Item", and "Description" in the "ERROR"
window.
Notice
When you have forgotten an error message, refer to the list of
errors in the "Machine Error Recall" window. (Operation Sequence:
[RECALL MSG.] Button (Submenu) → "Machine Error Recall"
Window)
(2) Press the [RETURN] button to resume the original window.
(3) Use the error ID as an index and refer to "Chapter 3 Troubleshooting
from Error IDs" (Vol. 4) or "Chapter 4 Troubleshooting from
Recognition Error IDs" (Vol. 4) for details.
4. "ERROR" Windows
