1-39 Y -Axis Cable Fixing Places (2 places) Every 6 Months Inspection Required T ime: 1 minute Check visually for any abnormality such as cracks. Y -Axis Cable Sidefaces Every 6 Months Cleaning and Lubrication (Silicon G…
1-38

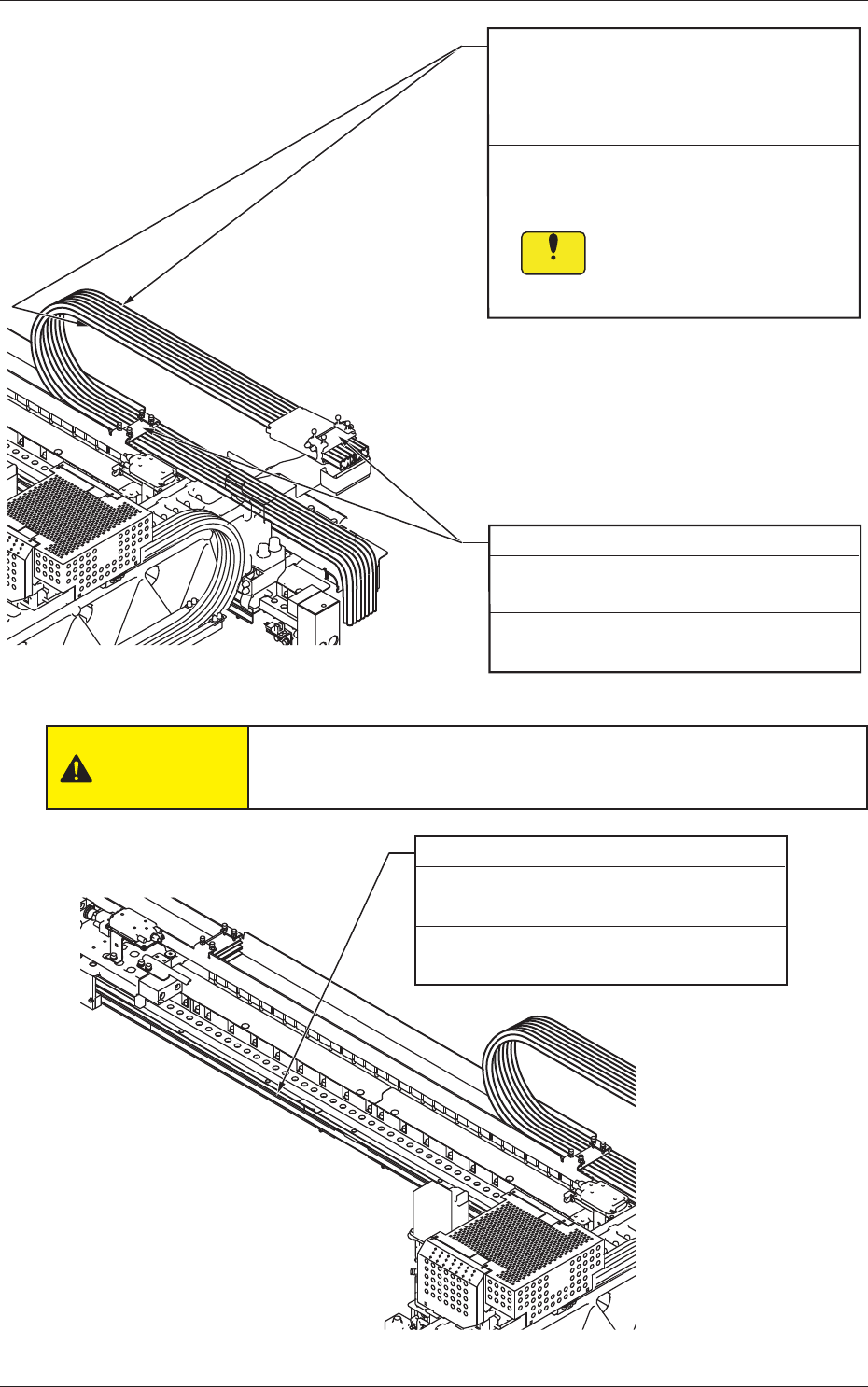

X-Axis Cable Fixing Places (2 places)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
X-Axis Cable Sidefaces
Every 6 Months Cleaning and Lubrication
(Silicon Grease KS64)
Required Time: 3 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
Fig. 4A26
CAUTION
Your hand might be cut at the edge of the linear guide in the
cleaning operation. Wear gloves.
X-Axis Linear Scale
Every 3 Months Cleaning
Required Time: 5 minutes
Clean the X-axis linear scale with a cotton
swab soaked in alcohol.
Fig. 4A27
3.3 Inspection, Cleaning, and Lubrication Spots
0712-002
1-39
Y-Axis Cable Fixing Places (2 places)
Every 6 Months Inspection
Required Time: 1 minute
Check visually for any abnormality such as
cracks.
Y-Axis Cable Sidefaces
Every 6 Months Cleaning and Lubrication
(Silicon Grease KS64)
Required Time: 3 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Take ample care not to leave
any waste threads after
cleaning.
Notice
Fig. 4A28
CAUTION
Your hand might be cut at the edge of the linear guide in the
cleaning operation. Wear gloves.
Y-Axis Linear Scale
Every 3 Months Cleaning
Required Time: 5 minutes
Clean the Y-axis linear scale with a cotton
swab soaked in alcohol.
Fig. 4A29
3.3 Inspection, Cleaning, and Lubrication Spots
0712-002
1-40

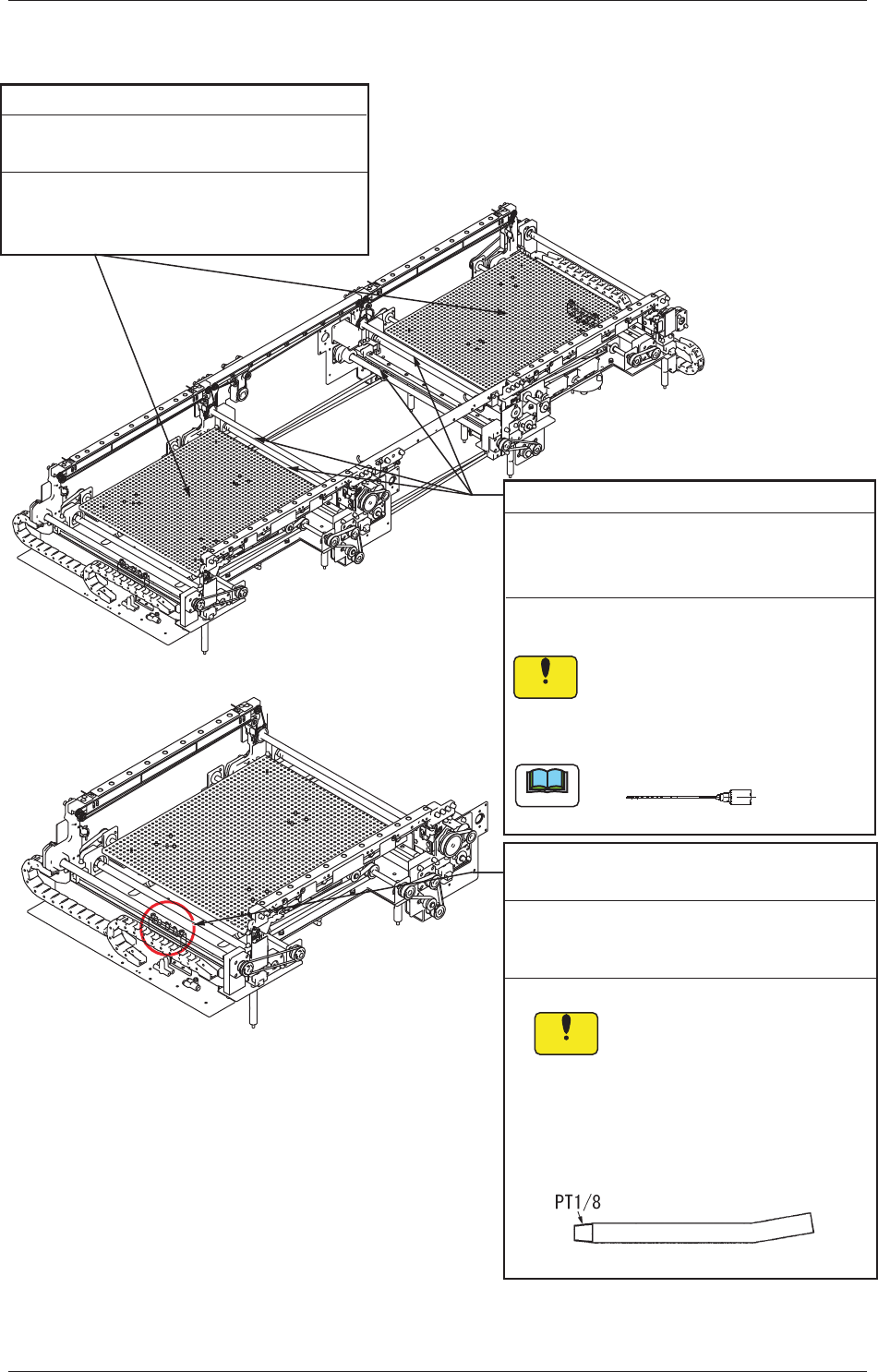

3.3.9 PCB Positioning Section
Upper Surface of Backup Table
Every Week Cleaning
Required Time: 2 minutes
Remove foreign substances and unrequired
components and suck dirt and dust with a
vacuum cleaner.
Ball Screws
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
Wipe off old grease with a rag and apply
new one with a syringe.
Take ample care not to leave any
waste threads after cleaning.
Grease should be applied every 3 months
after the initial month.
Use No. 19 (brown) nozzle.
Notice
Note
No. 19
Ball Screw Splines
(Grease Nipple 6 places)
Every 6 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
(1) Wipe off old grease with an oiled rag.
Take ample care not to leave
any waste threads after
cleaning.
(2) Attach the H-type attachments to
a hand grease gun and supply new
grease to the grease nipples with the
hand grease gun.
Notice
Type H
Fig. 4A30
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
