2. Maintenance Check List

The periodic maintenance items (inspection, cleaning, lubrication, etc.)

are classiﬁed and described based on how frequently each item should be

performed.

Use the tables below as check lists.

Reference

Refer to "3. Maintenance Spots" for the spots to be maintained.

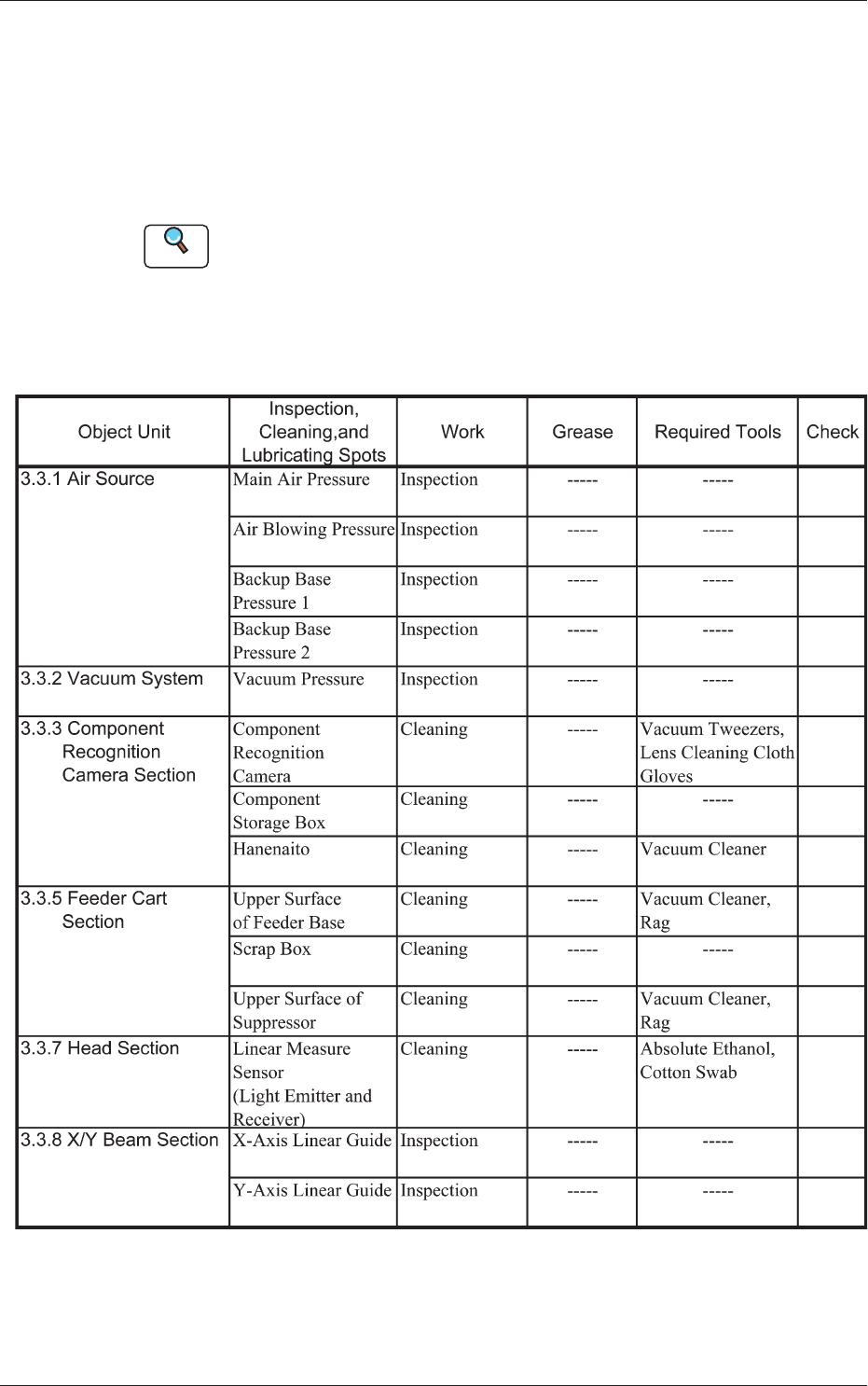

2.1 Daily Maintenance

Table 4A8

2. Maintenance Check List

1-120803-002

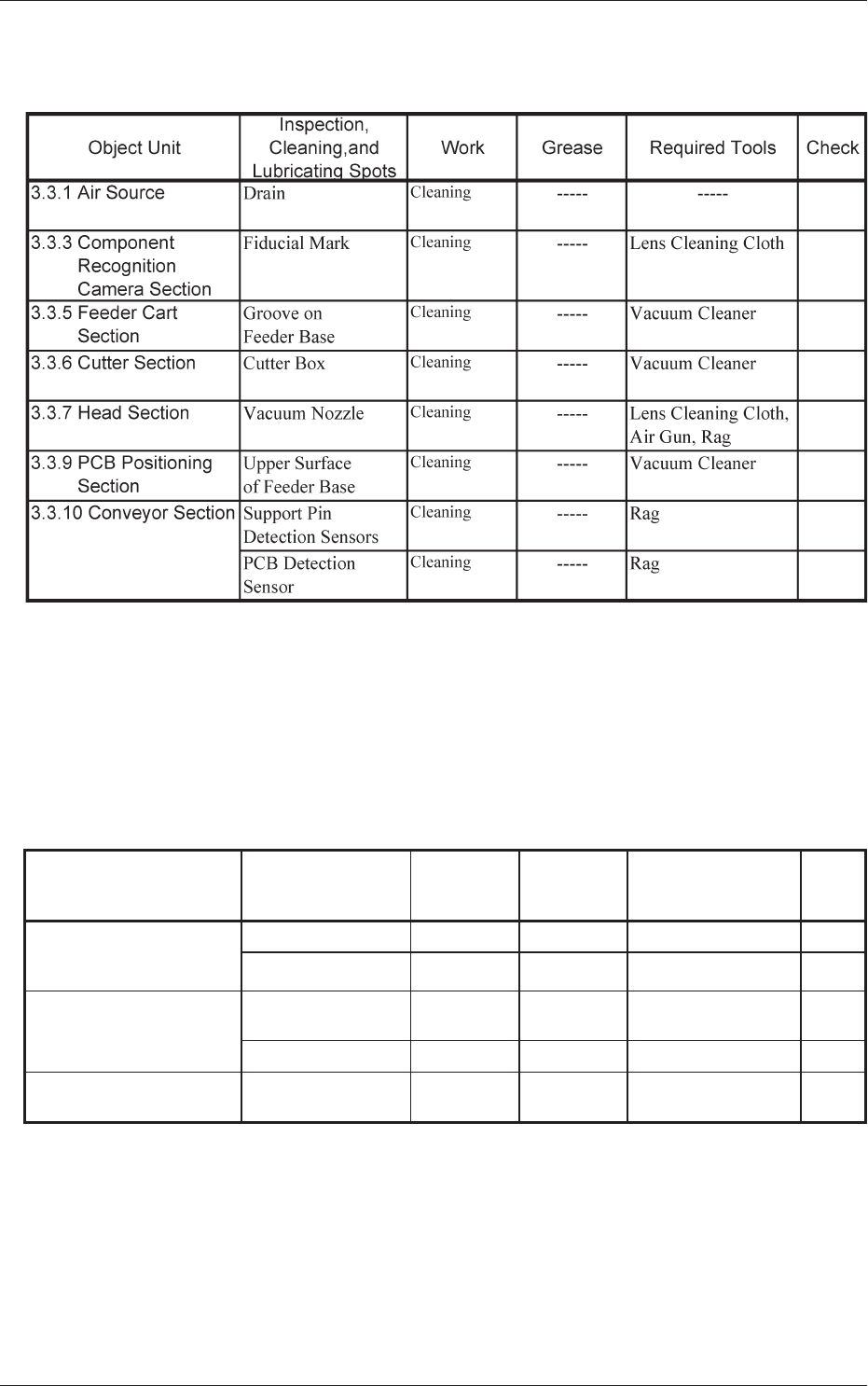

2.2 Weekly Maintenance

Table 4A9

2.3 Monthly Maintenance

Grease Symbols

DE1: DAPHNE EPONEX GREASE No. 1

Table 4A10

Object Units

Inspection,

Cleaning,and

Lubricating Spots

Work Grease Required Tools Check

3.3.3 Component

Recognition

Camera Section

QFP Glass Plate Jig Cleaning ----- Lens Cleaning Cloth

Teaching Plate Cleaning ----- Rag

3.3.7 Head Section

Nozzle U/D Linear

Guide (NL Axis)

Cleaning,

Lubrication

DE1 Rag,Syringe,

Nozzle (No.18)

Diffusion Plate Cleaning ----- Lens Cleaning Cloth

3.3.11 Nozzle Stocker

Section

Nozzle Storage

Section

Cleaning ----- Vacuum Cleaner

1-130803-003

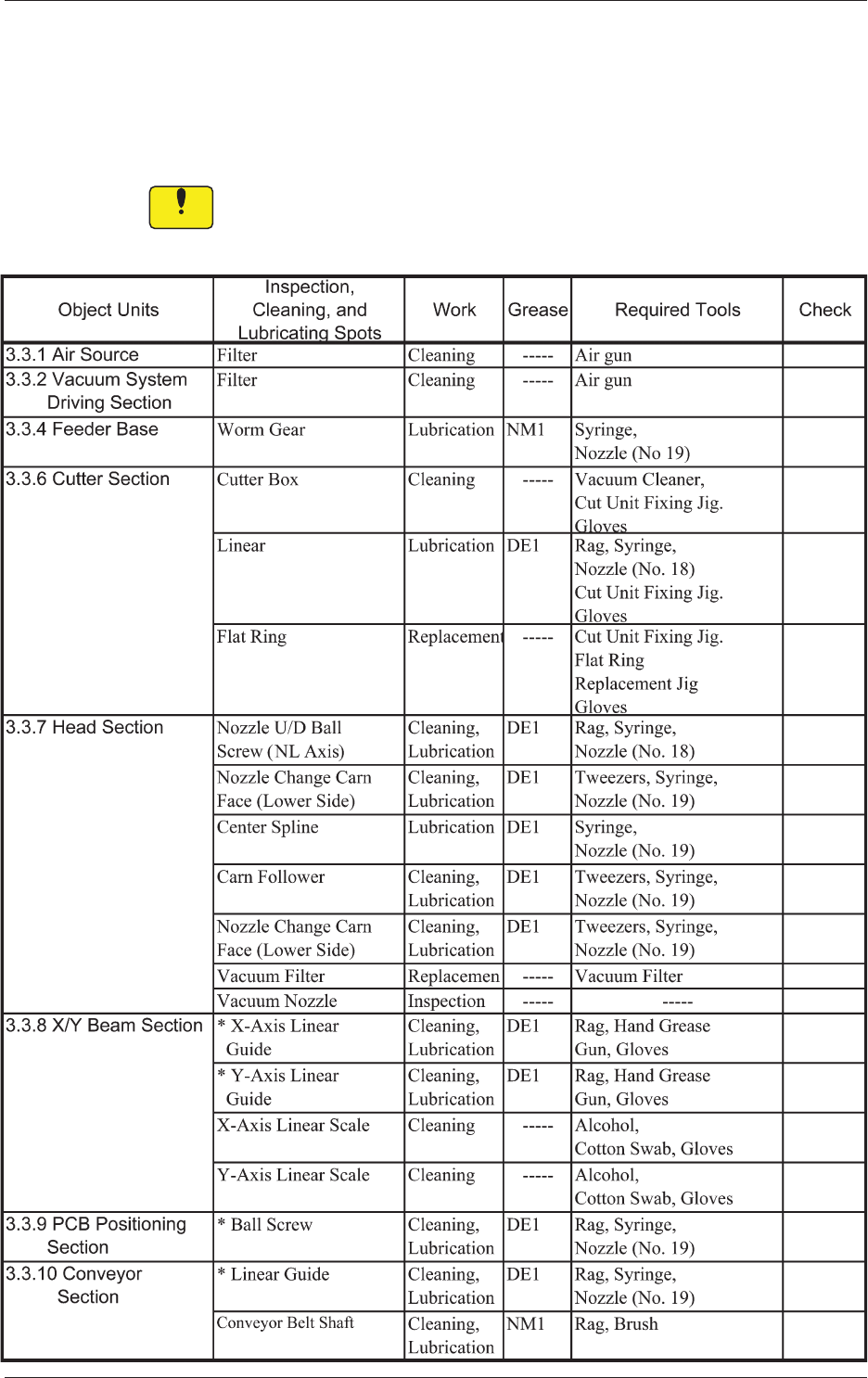

2.4 Quarterly Maintenance

Grease Symbols

DE1 : DAPHNE EPONEX GREASE No. 1

NM1 : MOLYNOC GREASE AP1

Notice

Lubrication must be made on the *-marked items after initial month

and every 3 months for the subsequent use.

Table 4A11

2.4 Quarterly Maintenance
