2-10 0707-001 2.2 List of W arning Messages W arning Codes Display Field A (Scope of W arning Messages) Display Field B (Details of W arning Messages) 013701 Incorrectly seated Nozstkr Incorrectly seated Nozstkr 1 (rear)…
2-90707-001
2.2 List of Warning Messages
Warning Codes Display Field A (Scope of Warning Messages)
Display Field B (Details of Warning Messages)
013001 Load Power is not OFF.
Press [Emergency STOP] button to Load Power off.
013101 Feeder set Err
The feeder suppressor is tilting. (Rear)[DA-B0510]
013102 Feeder set Err
The feeder latch worked off. (Rear) [B0914]
013103 Feeder set Err
The feeder suppressor is tilting. (Front) [DB-B0510]
013104 Feeder set Err
The feeder latch worked off. (Front)[B0914]
013105 Feeder set Err
Incorrectly seated Nozstkr 1 (rear)
013106 Feeder set Err
Incorrectly seated Nozstkr 2 (rear)
013107 Feeder set Err
Incorrectly seated Nozstkr 1 (front)
013108 Feeder set Err
Incorrectly seated Nozstkr 2 (front)
013201 The number Y of matrices (Y-axis operation limit)
The component of the specifi
ed number of matrices cannot be photoed with a PEC
recognition camera.
013202 The number Y of matrices (Y-axis operation limit)
It is only the parts of one sequence which can be photoed with a PEC recog
camera.
The pick-up last pos teaching (pitch automatic teaching) cannot be
performed.
013203 The number Y
of matrices (Y-axis operation limit)
This component cannot be photoed with a PEC recognition camera. The first time
and the last extraction pos teaching (automatic teaching) cannot be performed.
013301 Press low Err
The vacuum pressure low was detected.
013302 Press low Err
The blow pressure low was detected.
013401 Linear Measure
Please install the line sensor control software which version is over 2.16. (It takes
about 3 minutes 30 seconds)
013501 Confirm the last placement position
Please set the placement settings to the placement. (head1)
013502
Confirm the last placement position
Please set the placement settings to the placement. (head2)
013503 Confirm the last placement position
Please set the placement settings to the placement. (head3)
013504 Confirm the last placement position
Please set the placement settings to the placement. (head4)
2-100707-001
2.2 List of Warning Messages
Warning Codes Display Field A (Scope of Warning Messages)
Display Field B (Details of Warning Messages)
013701 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 1 (rear)
013702 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 2 (rear)
013703 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 1 (front)
013704 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 2 (front)
2-110707-001
3. Machine Information
3. Machine Information

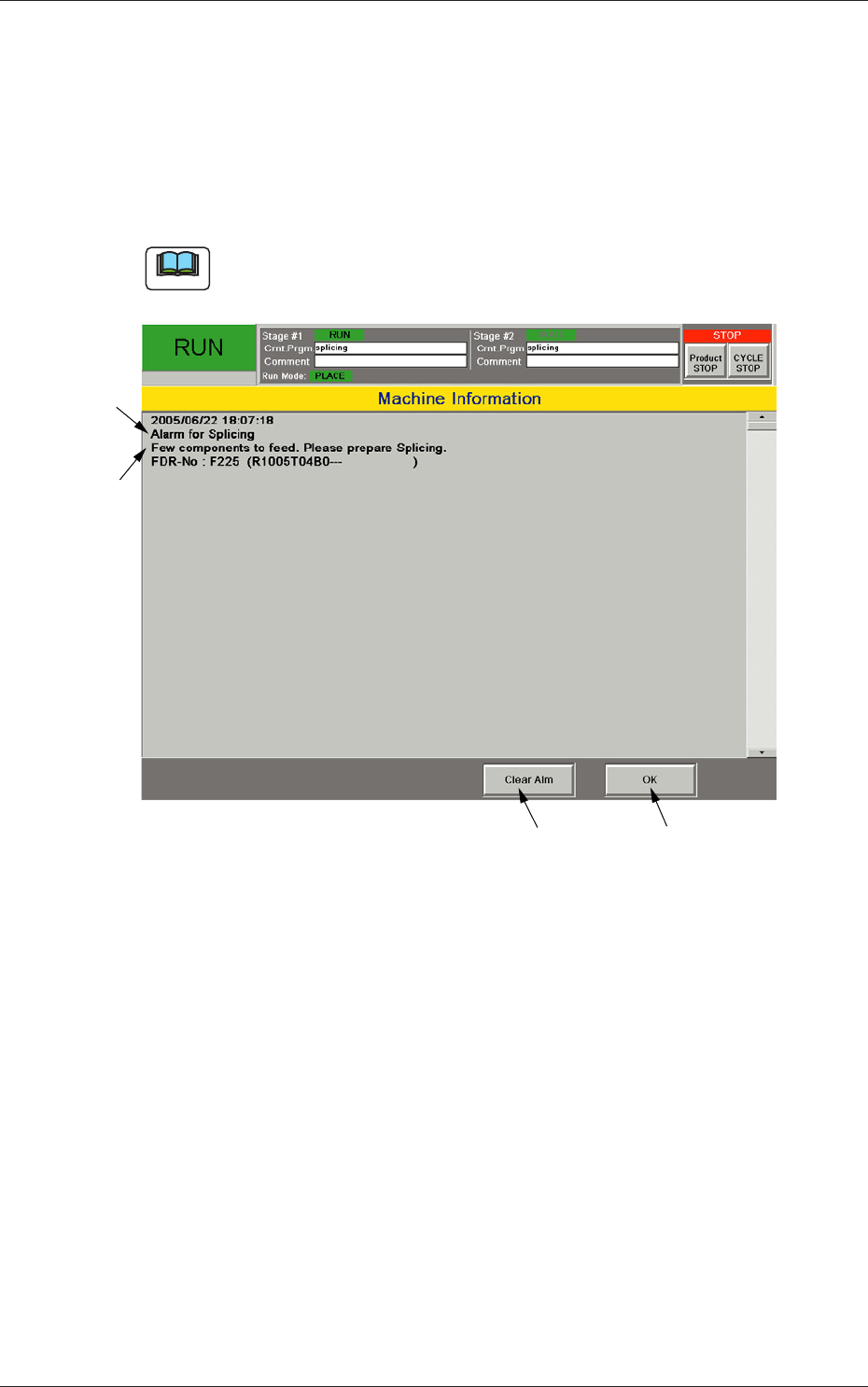

3.1 "Machine Information" Window
This window shows various kinds of information while the machine is
running.
Note
The machine does not stop running when this window becomes active.
[2]
[3]
[1]
[4]
Fig. 4B3
[1] Display Field A
Displayed is the outline of the machine information.
[2] Display Field B
Displayed is the detailed machine information.
[3]
[OK] Button
When pressed, this button closes the "Machine Information" window.
[4] [Clear Alarm] Button
When pressed, this button cancels an alarm (sound) only.
