1-51 0707-001 (9) Loosen the screws of tape guide and detach the fl uorine sheet and the plate. After that, replace the fluorine sheet with a new one. T ape Guide New Fluorine Sheet Old Fluorine Sheet Fig. 4A50 (10) Attach…
1-50
0712-002

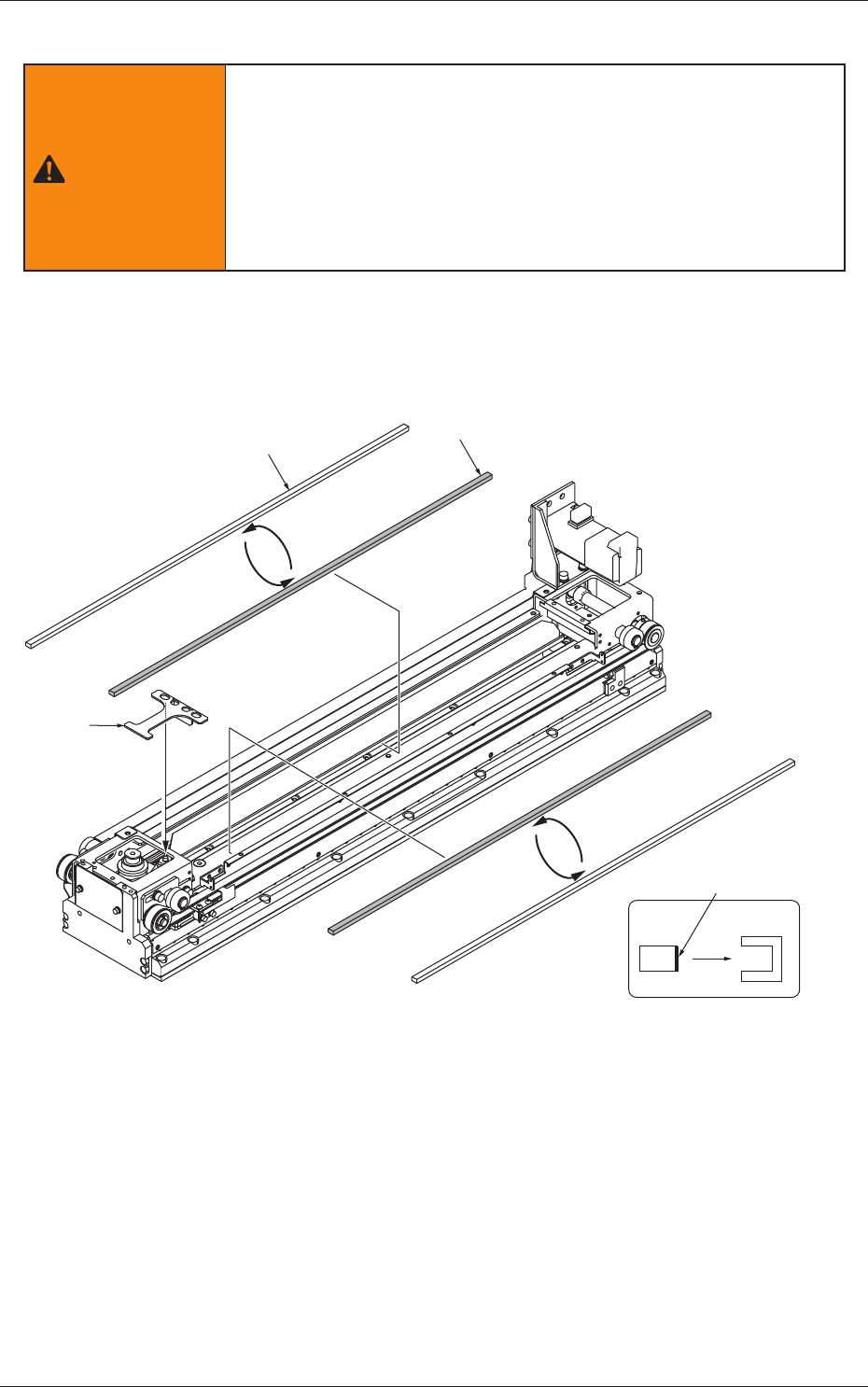

(6) Attach the cut unit fixing Jig.
WARNING
Pay close attention to the cutter blade during the maintenance
work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Be sure to attach the fixing jig to the cut unit during the
maintenance work for safety purposes.
(7) Detach the urethane clamp from the tape clamp.
(8) Peel off the double-faced tape of a new urethane clamp and
attach a new urethane clamp to the tape clamp.
New Urethane Clamp
Old Urethane Clamp
Double-Faced Tape Side
View (Attachment Direction)
from Side Face
Cut Unit
Fixing Jig
Fig. 4A49
4.3 Replacement of Fluorine Sheet and Urethane Clamp
1-51
0707-001

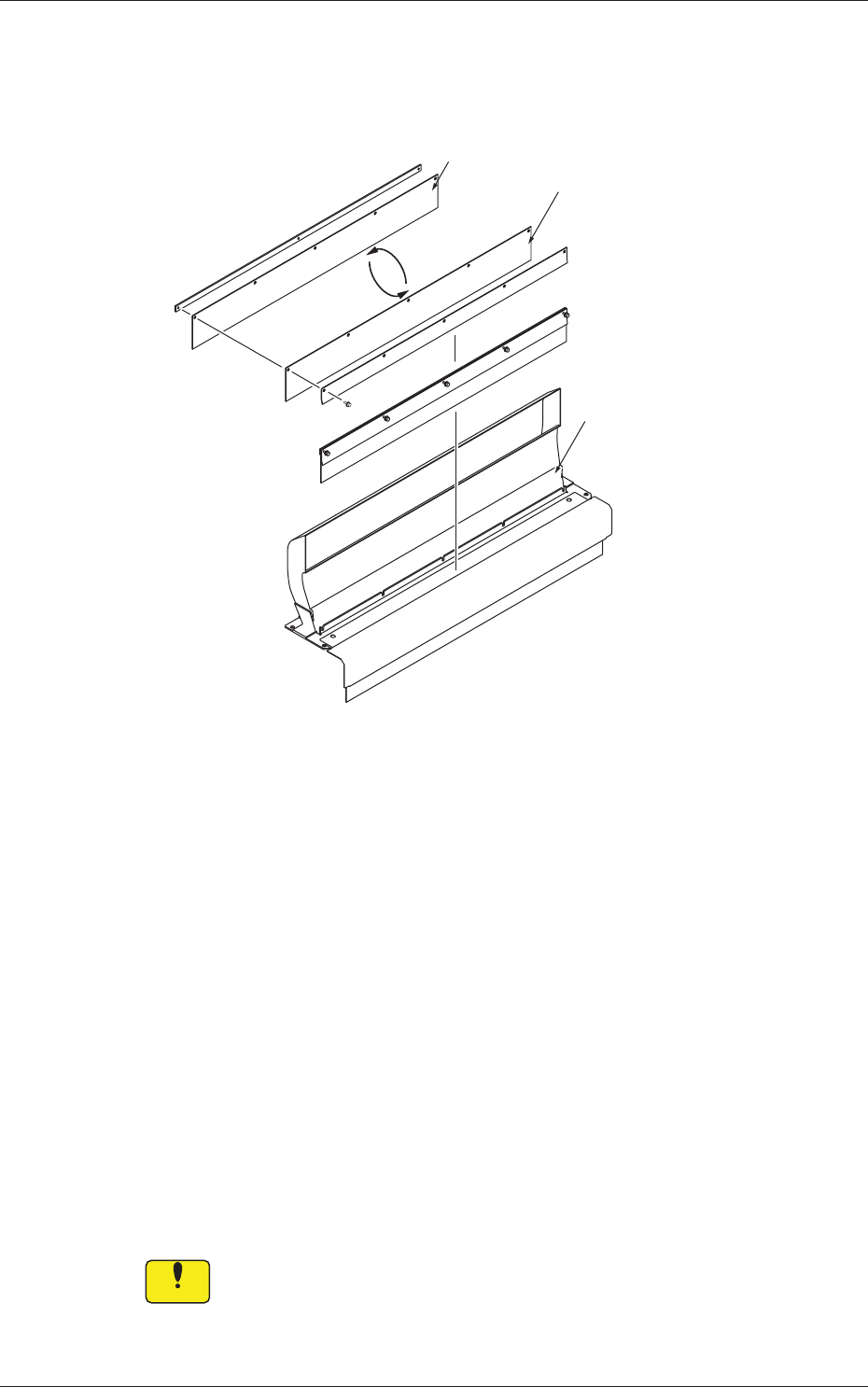

(9) Loosen the screws of tape guide and detach the fl
uorine sheet
and the plate. After that, replace the fluorine sheet with a new
one.
Tape Guide
New Fluorine Sheet
Old Fluorine Sheet
Fig. 4A50
(10) Attach the fluorine sheet and the plate to the tape guide.
At this time, confirm that the fluorine sheet is put between the tape
clamps.
(11) Detach the cut unit fixing jig.
(12)
Attach the tape guide and the transparent cover.
(13) Close the cover, power the machine, and perform a zeroing
operation.
(14) Select the [Round trip] button in the "Mode" group box in the
"CUTTER ADJ" window to shuttle the cutters.
(Operation Sequence: [MAINT] on Main Menu → [UNIT ADJ.] on
Submenu Bar → "CUTTER ADJ" window)
The unrequired portions of the fluorine sheet are cut and fall down into
the scrap box of the bank feeder change cart.
Notice
Be sure to cut the unrequired portions of the fluorine sheet without
the tape being threaded through the cutters. Otherwise, the tape
cannot be cut normally.
4.3 Replacement of Fluorine Sheet and Urethane Clamp
1-52
0707-001

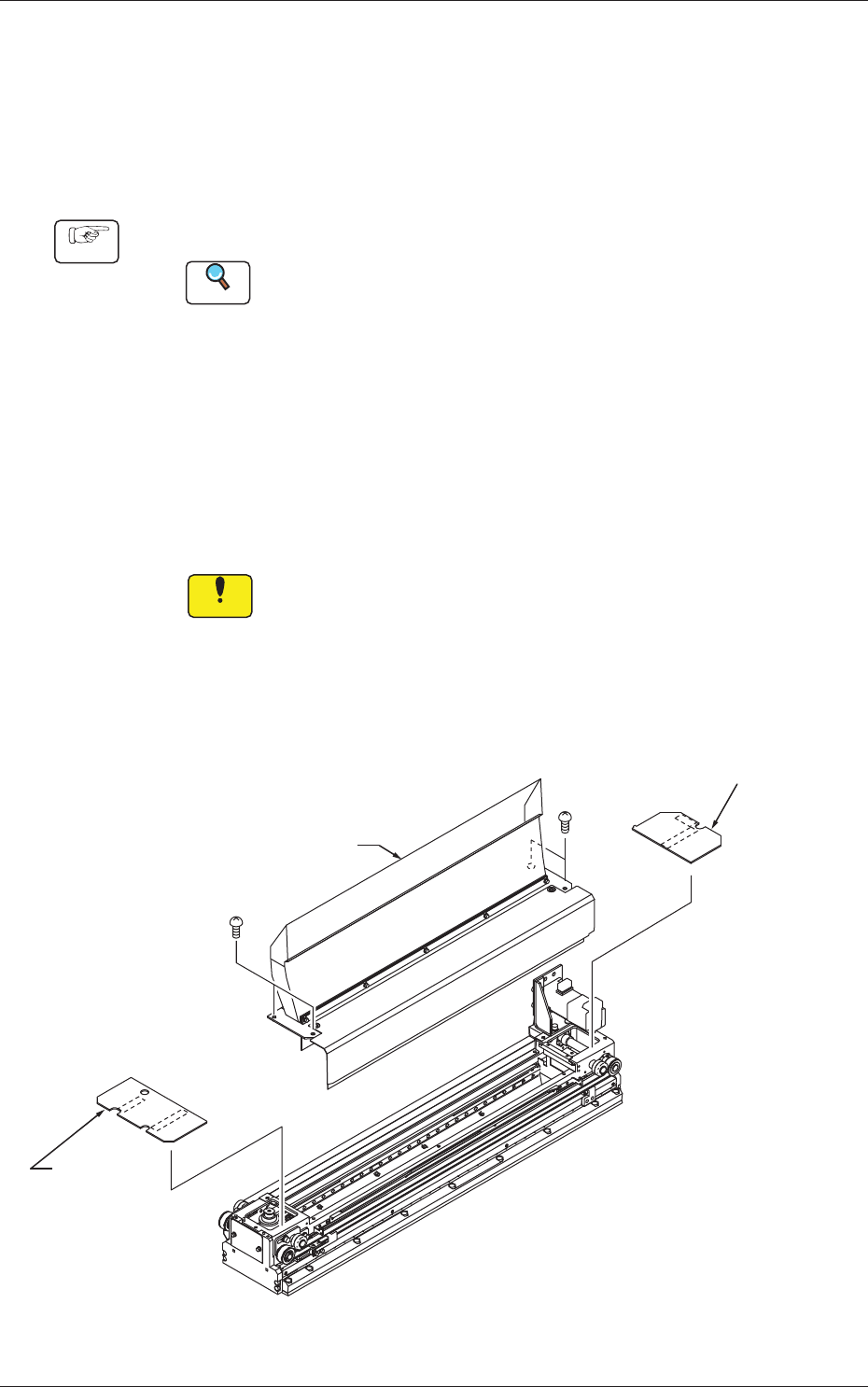

4.4 Procedure of Flat Ring Replacement
Time of Replacement
It is recommended that they should be replaced every 3 months (approx.).
Replacement Procedure
Procedure
(1) Zero the cutter.
Reference
Refer to "4.4 "CUTTER ADJ" Window" in "Chapter 4 (Vol. 2)" for
the zeroing operation of the cutter.
(2) Move down the feeder base and detach the bank feeder change
cart.
(3) Turn off the power to the machine.
(4) Open the cover.
(5) Detach the transparent cover (origin and motor sides) and the
tape guide.
Notice
(a) Carefully detach or attach the tape guide to avoid the
Y-axis linear scale being scratched.
(b) When the cutter is not located at its origin, the tape guide
cannot be detached because the fluorine sheet is caught
by the tape clamp.
Tape Guide
Transparent Cover
(Motor Side)
Transparent
Cover
(Origin Side)
Fig. 4A51
4.4 Procedure of Flat Ring Replacement
