1-55 4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port • Lubricating T iming: Every three months • Preparation for lubrication • Hand Grease Gun KH-120 (Maker : Y amada Y uki) • T ype N (Maker : THK) (Part …

1-54

0707-001

(9) Put the ﬂat ring replacement jig on the roller on the oscillating

side (outside of the machine).

Push only the ﬂat ring downward by hand and insert it into the

groove of the roller.

Flat Ring

Fig. 4A54

(10) Pay attention to the cutter blade and detach the ﬂat ring

replacement jig.

(11) Attach the tape guide and the transparent cover.

4.4 Procedure of Flat Ring Replacement

1-55

4.5 Lubricating Procedure onto the Linear Guide Oil Filler

Port

•

Lubricating Timing: Every three months

•

Preparation for lubrication

•

Hand Grease Gun

KH-120 (Maker : Yamada Yuki)

•

Type N

(Maker : THK)

(Part No. : 630 061 7467)

•

DAPHNE EPONEX GREASE No.1

4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port

0707-001

1-56

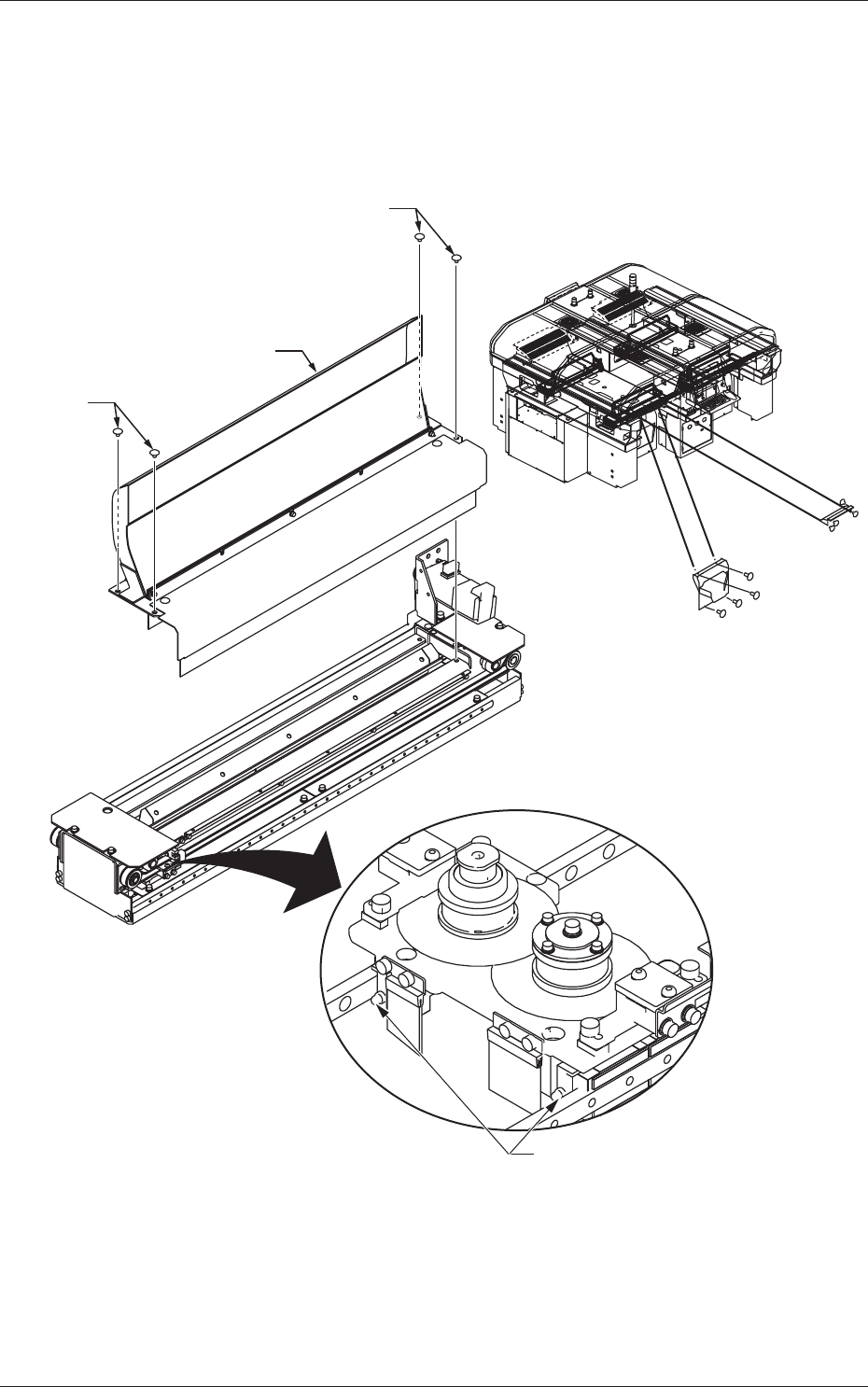

Lubricating Procedure

(1) Detach the upper

cover.

(2) Detach the lower cover.

(3) Remove four screws and detach the tape guide.

Oil Filler Port

(Two locations per cutter unit)

Tape Guid

Upper Cover

Lower Cover

Screws

Fig. 4A54-1

4.5 Lubricating Procedure onto the Linear Guide Oil Filler Port

0811-002
