3.3 Inspection, Cleaning, and Lubrication Spots

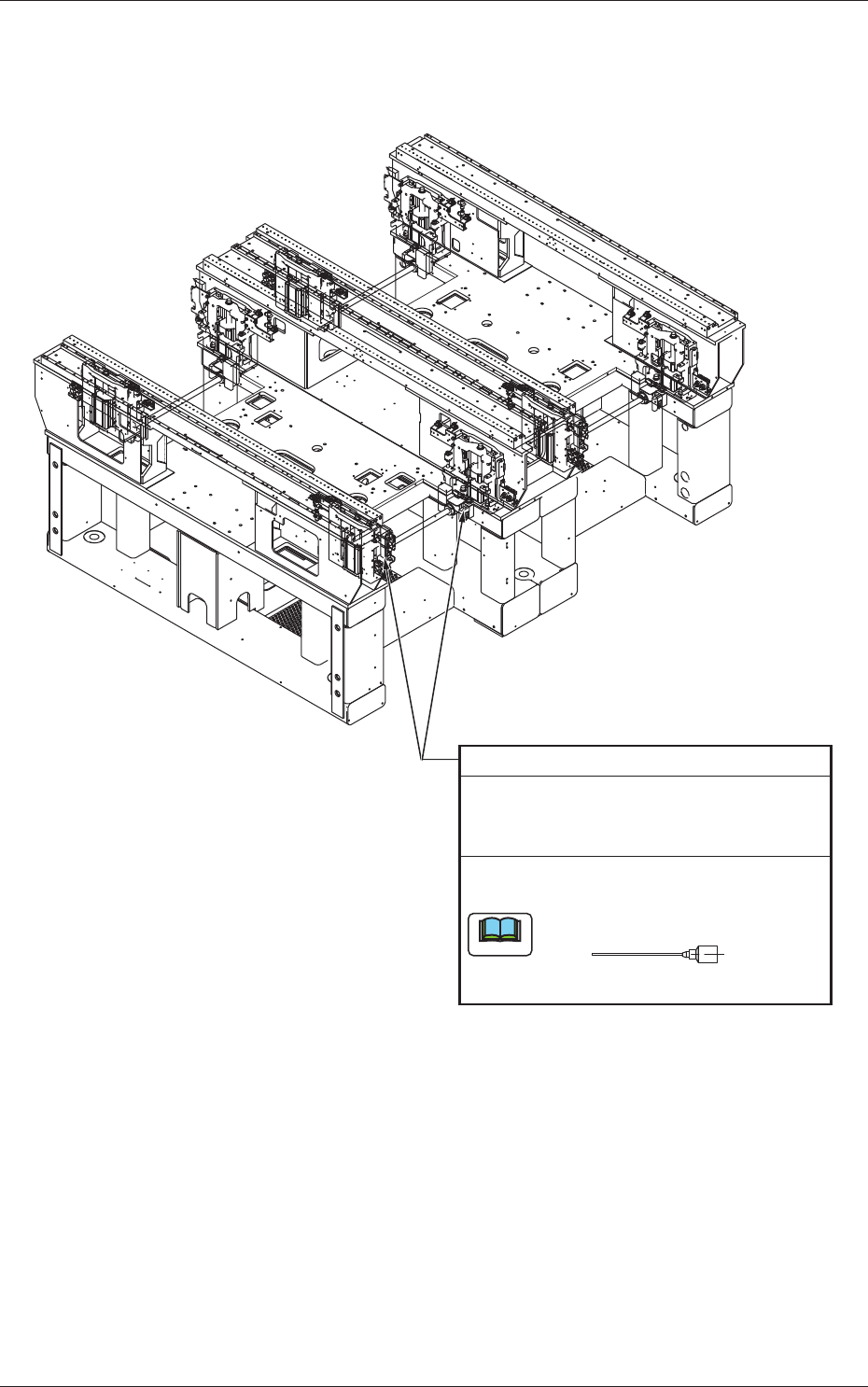

3.3.4 Feeder Base Driving Section
Worm Gears
(2 places)
Every 3 Months Lubrication
(MOLYNOC GREASE AP1)
Required Time: 2 minutes
Apply a small amount of new grease to the
worm gears with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19 (brown)
Fig. 4A16-1
0707-001
1-27

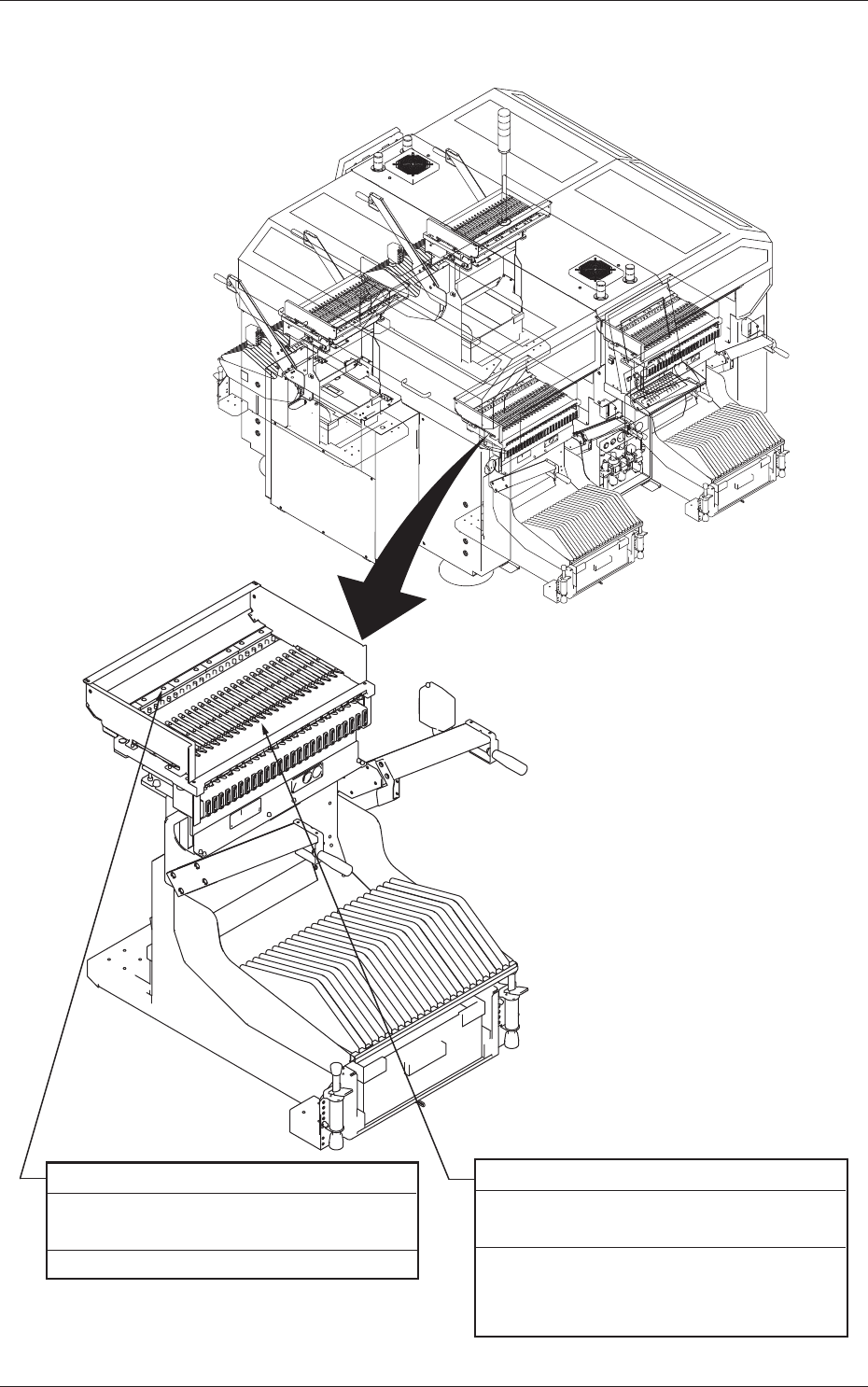

3.3.5 Feeder Cart Section
Groove on Feeder Base
Every Week Cleaning
Required Time:
2 minutes
Suck dirt and dust with a vacuum cleaner.
Upper Surface of Feeder Base
Every Day Cleaning
Required
Time: 2 minutes
Remove foreign substances and unrequired
components
wit
h a vacuum cleaner and
wipe off dirt and dust
with a rag.
Fig. 4A17
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
1-28

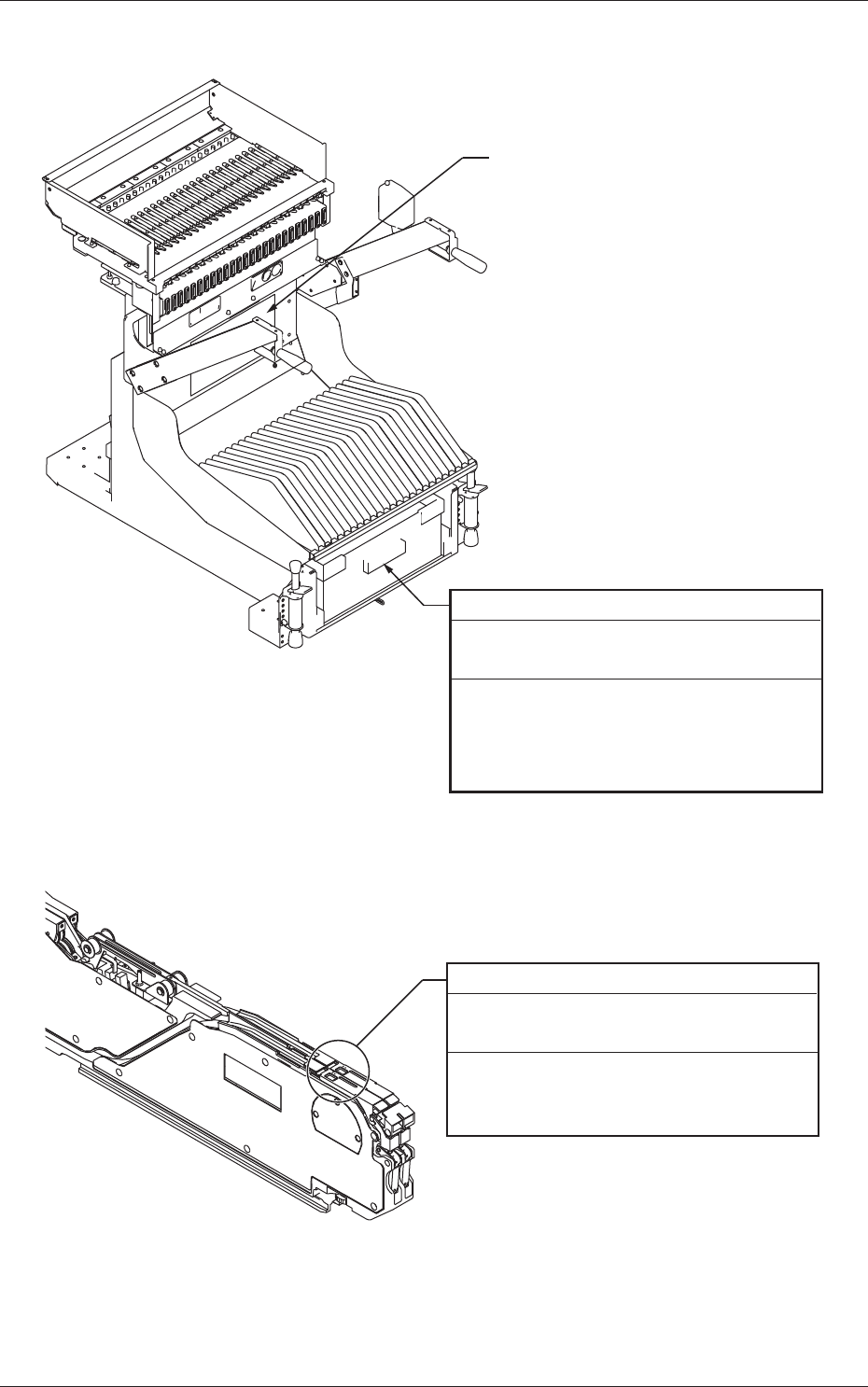

Scrap Inspection Hole
Scrap Box
Every Day Cleaning
Required Time
: 1 minute
When the scrap box seen from the scrap
inspection hole, is filled with empty
tapes, draw out the scrap box and remove
the empty tapes.
Fig. 4A18
Upper Surface of Suppressor
Every Day Cleaning
Required Time: 2 minutes
Remove dirt and dust with a vacuum
cleaner and wipe the surface clean with a
rag.
Fig. 4A18-1
3.3 Inspection, Cleaning, and Lubrication Spots
