1.2.2 Preparation for Lubrication
Prepare for the specified types of grease and lubrication tools.
Specified Greases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
•
MOL
YNOC GREASE AP1 (NIPPON OIL CORPORATION)
•
Silicon Grease KS64 (Shinetsu Kagaku)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and
oil will decrease.
Same Types of Lubricants
•
Grease
Types equivalent to DAPHNE EPONEX GREASE No. 1
(IDEMITSU KOSAN)
Table 4A1
•
Grease Types equivalent to MOLYNOC GREASE AP1 (NIPPON OIL
CORPORATION)
Table 4A2
•
Grease Types equivalent to Silicon Grease KS64 (Shinetsu Kagaku)
Table 4A3
0707-001
1.2 Preparation for Maintenance
1-60904-002
Specied lubrication tools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3) Hand Grease Gun
Standard : KH-120
Part No. : 228A0022
Maker : Yamada Y
uki
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
Fig. 4A4
•
Attachment for Hand Grease Gun KH-120
Table 4A5
Standard Shape Part No. Remarks
Type N
216M0440 THK
Type H
216M0439 THK
Type U
216M0438 THK
Note
It is not attached to the machine. Purchase it separately if necessary.
1.2 Preparation for Maintenance
1-70904-002

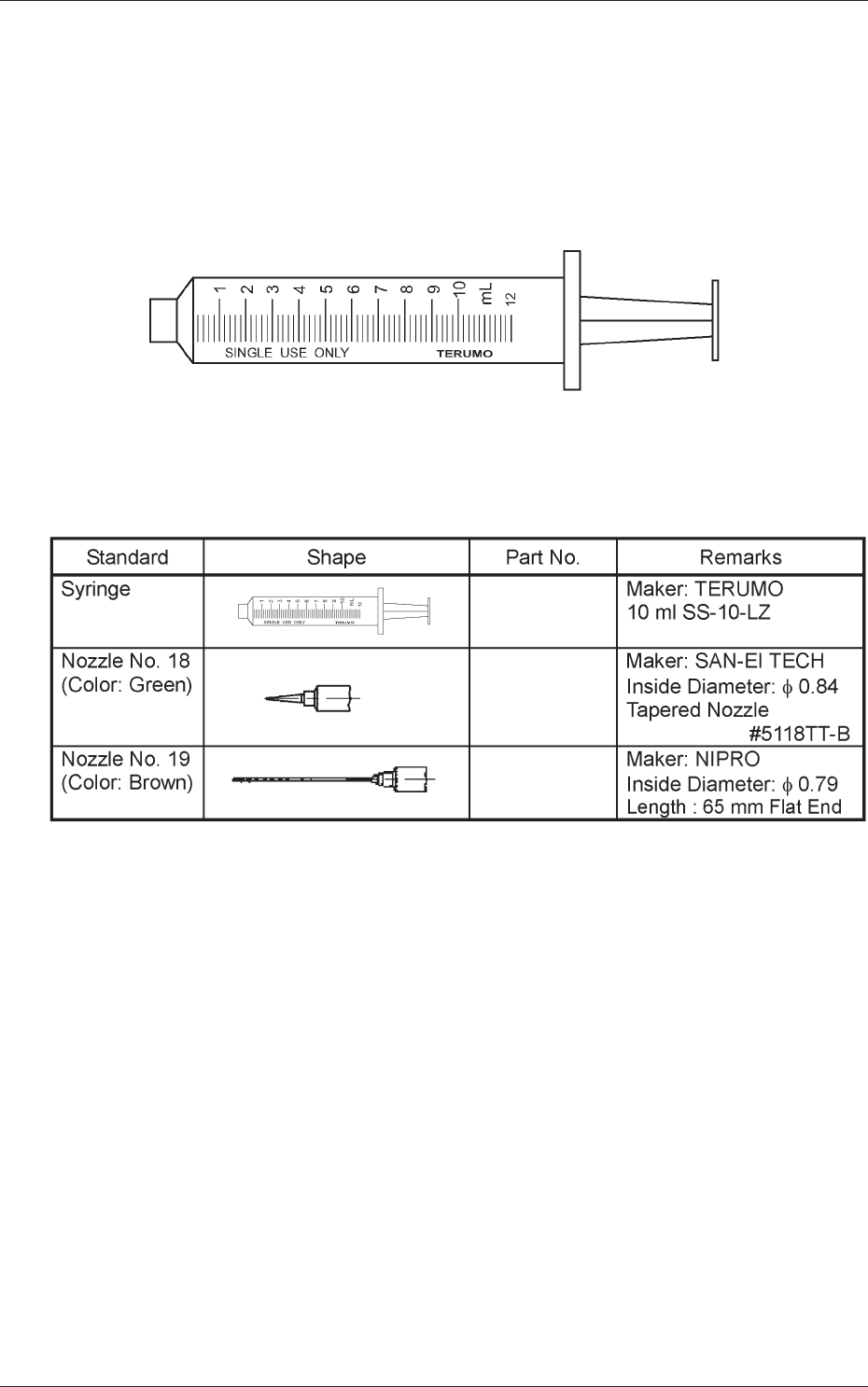

(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No
. 1
MOLYNOC GREASE AP1
Fig.4A5
Table 4A6
228A0171
216M0451
216M0453
1.2 Preparation for Maintenance
