1-43
3.3.11 Nozzle Stocker Section
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust wit
h a vacuum cleaner.
Nozzle Stocker Sliding Area
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease wit
h a
syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Fig. 4A33
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
1-44
3.3.12 Control Box Section
Filter (2 places)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the dust filter fixed with the
magnet.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
CPU-2
Fig. 4A34
3.3 Inspection, Cleaning, and Lubrication Spots
0811-003
1-44-1
CPU-3
Filter (1 places)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the dust filter fixed with the
magnet.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.

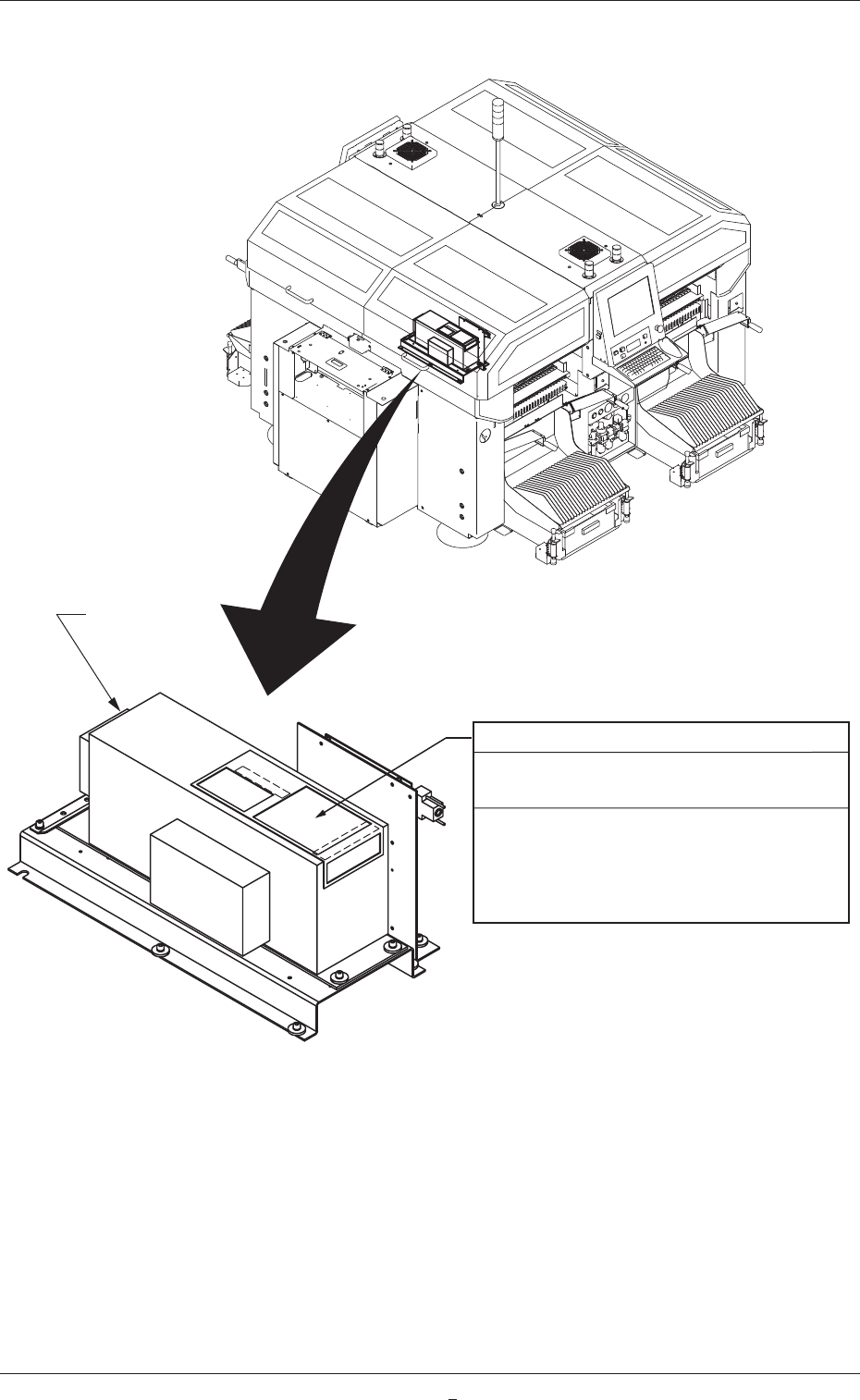

Fig. 4A34-1
3.3 Inspection, Cleaning, and Lubrication Spots
0811-002
