1-30 3.3 Inspection, Cleaning, and Lubrication Spots W ARNING Pay close attention to the cutter blade during the maintenance work. • Lack of attention will result in a hand injury , etc. Wear gloves and take the greatest…
1-29

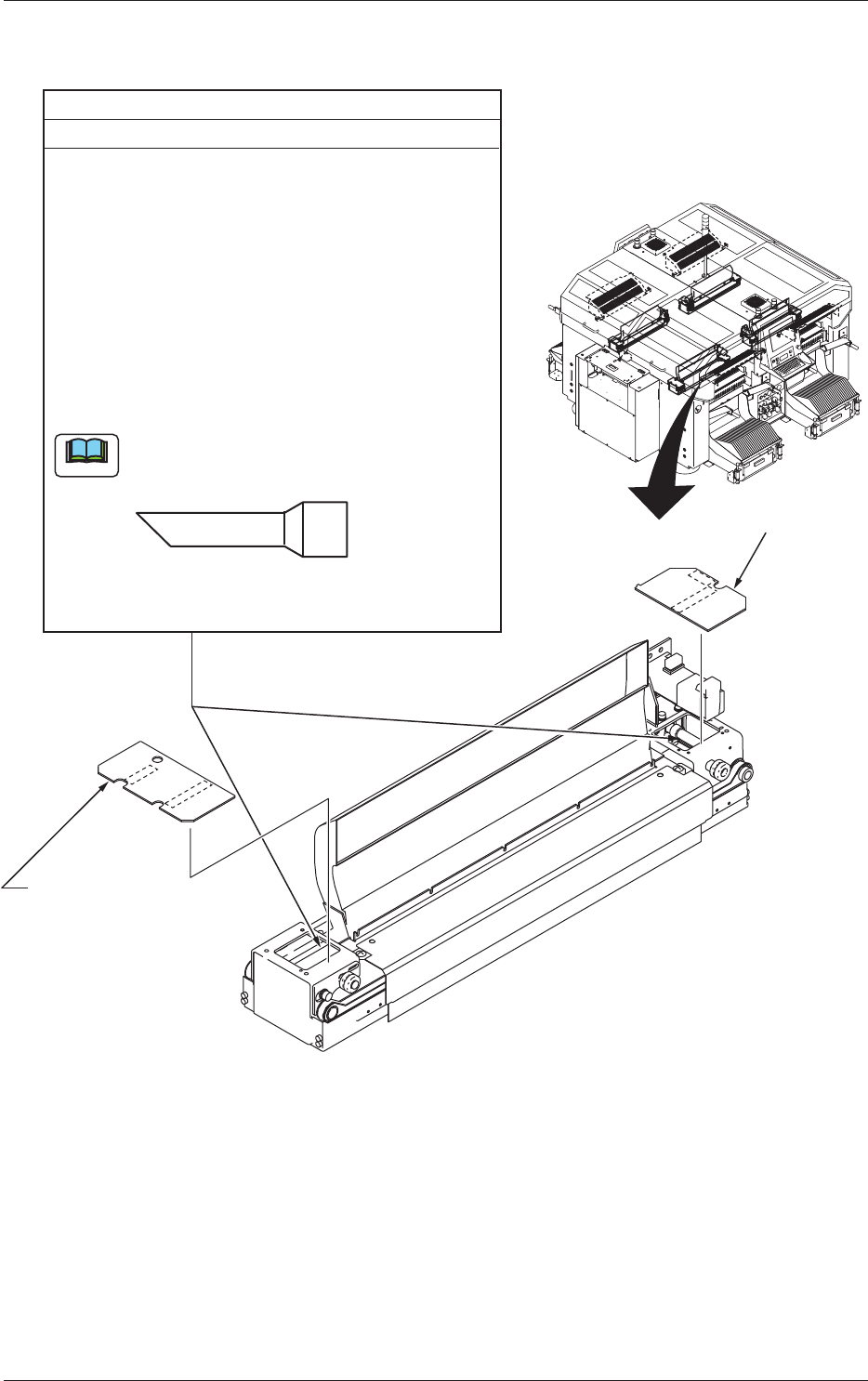

3.3.6 Cutter Section
Transparent Cover
(Motor Side)
Transparent Cover
(Origin Side)
Cutter Boxes (Both Sides)
Every Week Cleaning
(1) Detach the bank feeder change cart.
(2) Move the cutter unit with the [Move Maint. Pos.]
button in the "CUTTER ADJ" window
(the window that opens after the [CUT ADJ]
b
utton on the "UNIT ADJ" submenu bar is pressed).
(3) Turn off the power supply.
(4) Open the cover.
(5) Detach the transparent covers located on both
sides (origin and motor sides) of the cutter sectio
n
and remove dirt and dust with a vacuum cleaner.
Use a vacuum cleaner with a narrow air opening
in the nozzle.
Note
Narrow Air Opening in Nozzle End
(Recommended)
Required Time: 2 minutes
Fig. 4A19-1
3.3 Inspection, Cleaning, and Lubrication Spots
0707-001
1-30
3.3 Inspection, Cleaning, and Lubrication Spots
WARNING
Pay close attention to the cutter blade during the maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Be sure to attach the fixing jig to the cut unit during the
maintenance work for safety purposes.

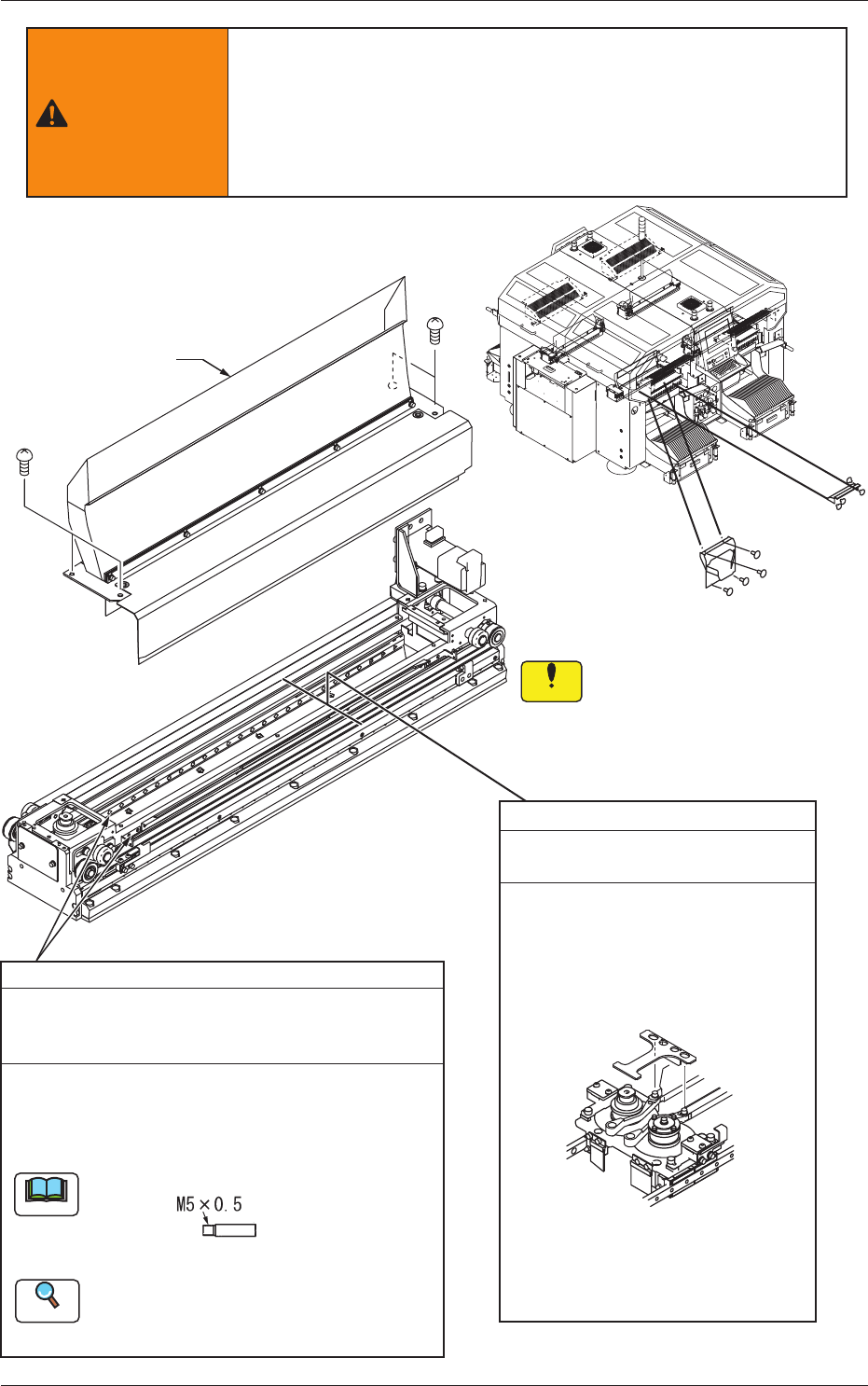

Upper Cover
Lower Cover
Linear Guides
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
(1) Remove four screws and detach the tape guide.
(2) Wipe old grease out using a rag and apply new
grease onto the linear guide (upper and lower
sides).
Tape Guide
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Cutter Box
Every 3 Months Cleaning
Required Time: 5 minutes
(1) Remove four screws and detach
the tape guide.
(2) Use the outer hole of the cut unit
fixing jig and attach the jig with
the bent portion being directed
downward.
Attachment Position of
Cut Unit Fixing Jig
(3) Clean the area around the linear
guides with a vacuum cleaner.
Use Type N nozzle.
Type N
Refer to "4.5 Lubricating Procedure onto the
Linear Guide Oil Filler Port" for lubricating
procedure.
Note
Reference
Fig. 4A19-2
0712-002
1-31
WARNING
Pay close attention to the cutter blade during the maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in performing the work.
•
Be sure to attach the fixing jig to the cut unit during the
maintenance work for safety purposes.
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Tape Guide
Attachment Position of
Cut Unit Fixing Jig

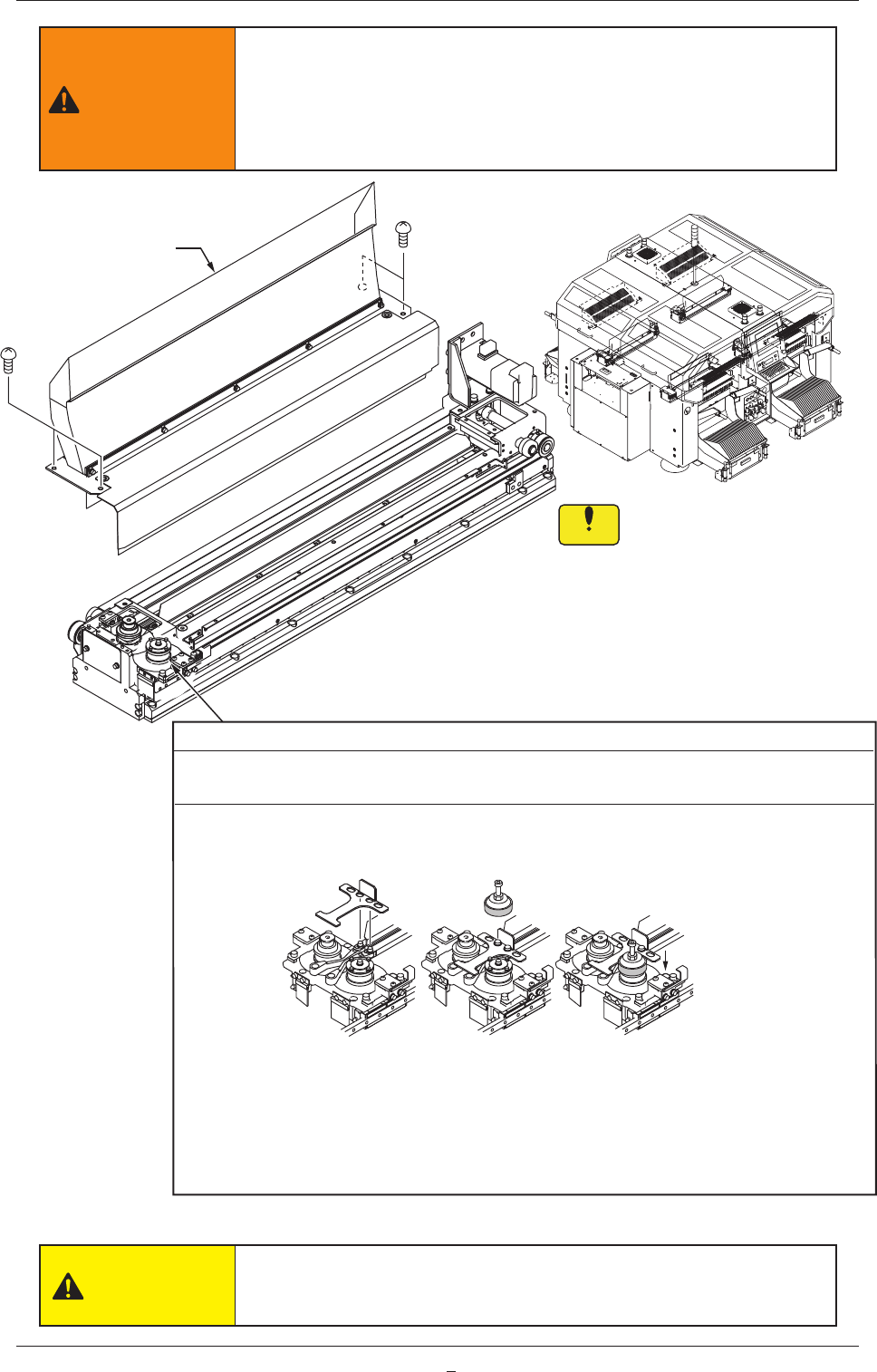

Flat Ring
Every 3 Months Replacement
Required Time: 10 minutes
(1) Remove four screws and detach the tape guide.
(2) Use the inner holes of the cut unit fixing jig with the tap
e clamp being closed and
attach the jig with the bent portion being directed upward.
(3) Cut the used flat ring with a cutter on market and detach it.
(4) Attach a ne
w flat ring to the flat ring replacement jig.
(5) Put the flat ring replacem
ent jig on the roller on the oscillating side (outside of the
machine) and push down the flat ring until it is inserted into the groove of the roller.
Replacement Jig
Attached
Fig. 4A19-3
CAUTION
When the flat ring is cut, take care not to get injured by the
commercially available cutter.
3.3 Inspection, Cleaning, and Lubrication Spots
