1-44-1

CPU-3

Filter (1 places)

Every 3 Months Cleaning

Required Time: 4 minutes

(1) Remove the dust filter fixed with the

magnet.

(2) Suck dirt and dust with a vacuum cleaner.

(3) Attach the dust filter.

Fig. 4A34-1

3.3 Inspection, Cleaning, and Lubrication Spots

0811-002

1-45

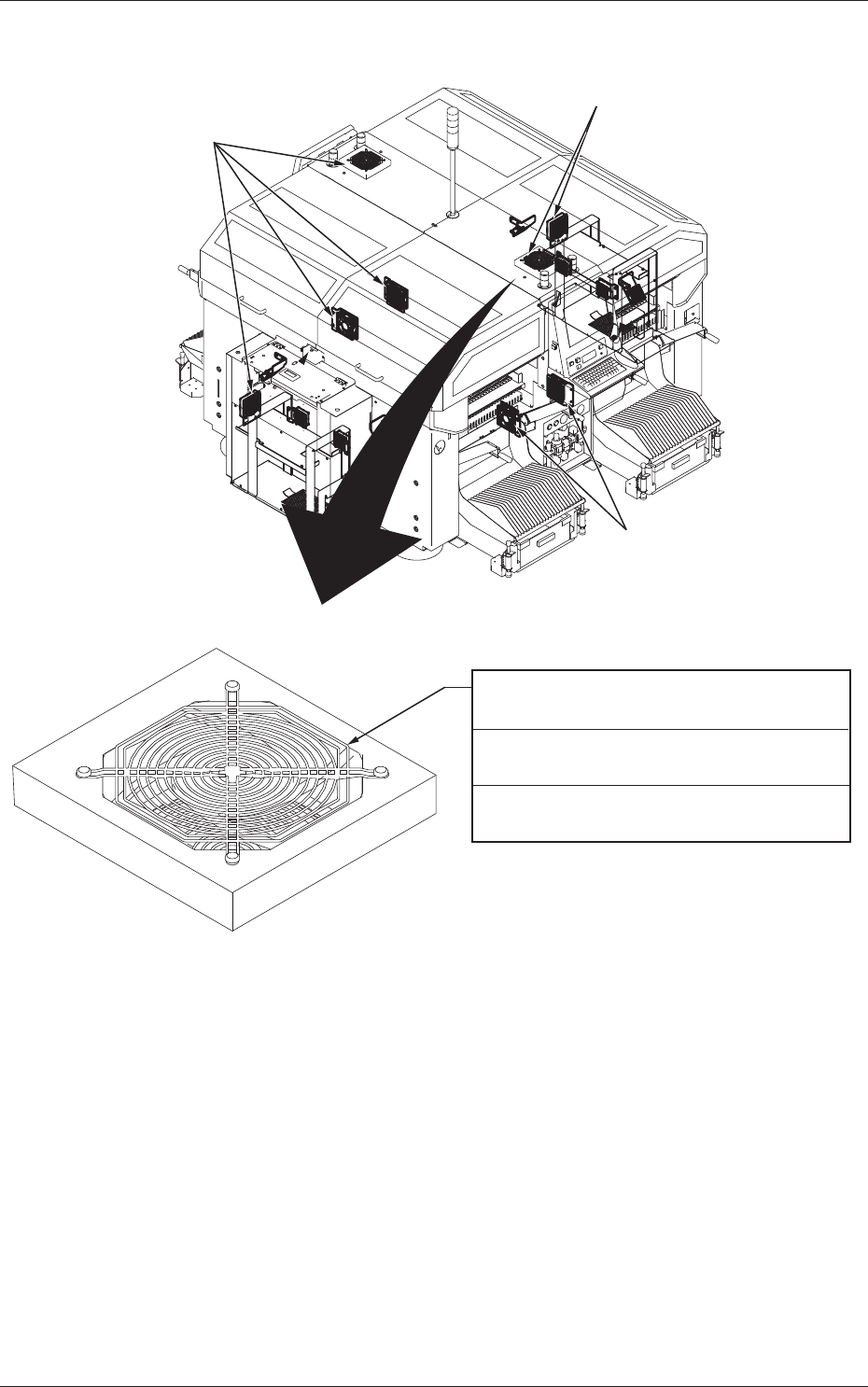

3.3.13 Fans

Fans

Every 3 Months Cleaning

Required Time: 10 minutes

Suck dirt and dust from the dust filters with

a vacuum cleaner.

Fan

(10 places)

Fig. 4A35

3.3 Inspection, Cleaning, and Lubrication Spots

0707-001

1-46

0707-001

4. Maintenance Method

4.1 Cleaning of Vacuum Nozzles

Periodically clean the vacuum nozzles to maintain reliable and stable

component picks and placement.

•

It is advisable that the nozzles be cleaned at least once a week.

•

Change cleaning frequency according to various frequency of use and

accumulation of debris along with certain environmental conditions.

•

When the vacuum suction force weakens or a nozzle constantly fails to

pick or place components, it is required to check the nozzle for debris and

cleanliness.

Do not grasp this part strongly during the

nozzle cleaning.

Otherwise, the nozzle may be damaged.

When it is necessary to hold the nozzle firmly,

try to grasp the collar portion.

When a recognition error occurs frequently,

rub the back of the collar approximately

20 times with a toothbrush.

Fig. 4A44
