1-21 0707-001 3.3.2 V acuum System V acuum Pressure (2 Places) Every Day Inspection Required T ime: 1 minute Check t he vacuum pressure visually . V acuum V alve Fully Closed: Min. -93 kPa (Min. 70 cmHg) or more Running:…
1-200707-001

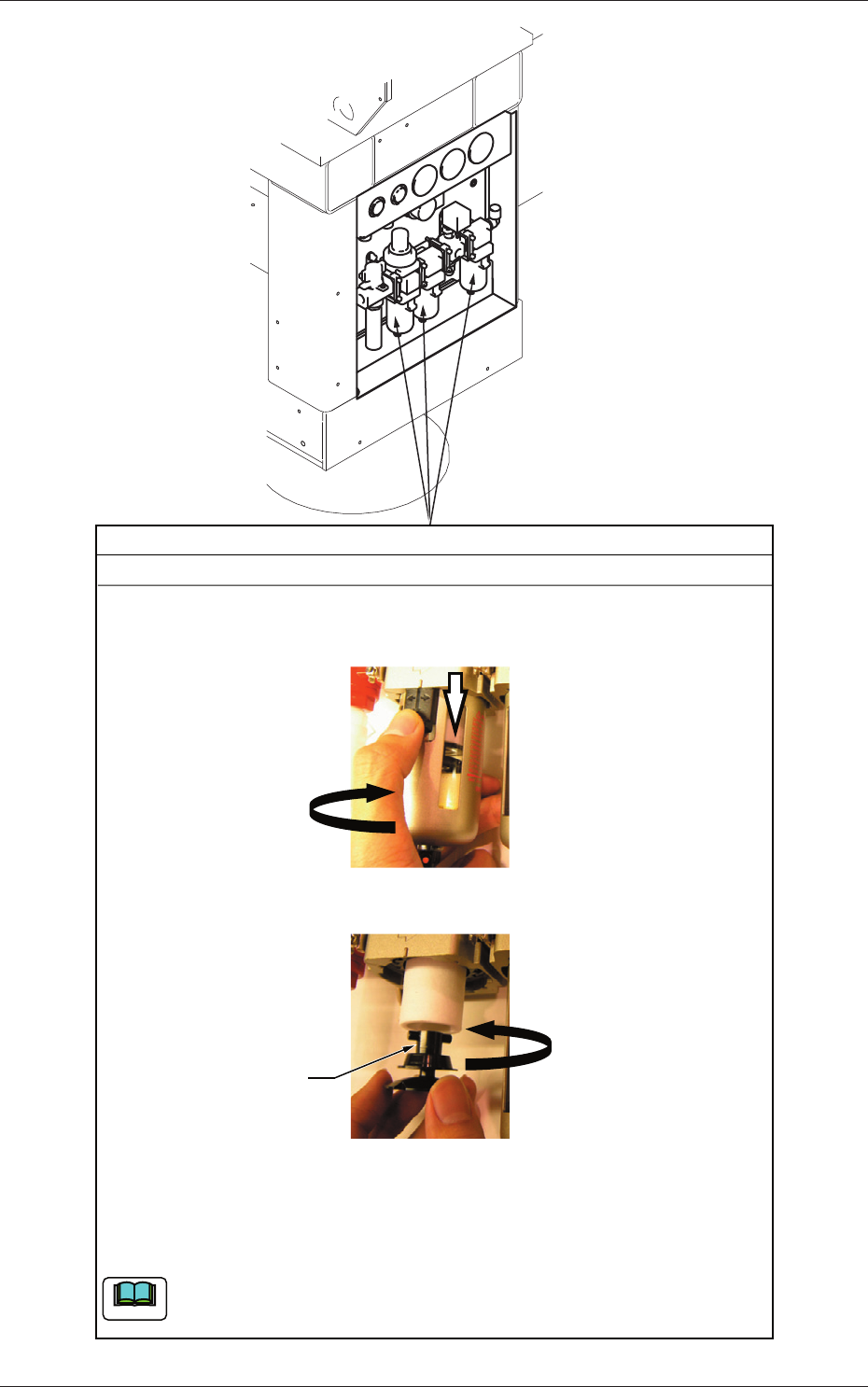

Filter
Every 3 Months Cleaning
(1) Detach the air filter.
While keeping the black part of the cove
r being slid down, rotate it
one-fourth.
(2) While rotating the filter holder counterclockwise, pull it out.
(3) Pull out the filter and blow air to it for cleaning.
(4) Insert the filter back in place and turn
the filter holder clockwise to attach.
(5) Attach the filter cover.
When the filter has become defe
ctive, replace it with a new one.
Filter Holder
Required Time: 5 minutes
Note
Fig. 4A11
3.3 Inspection, Cleaning, and Lubrication Spots
1-210707-001

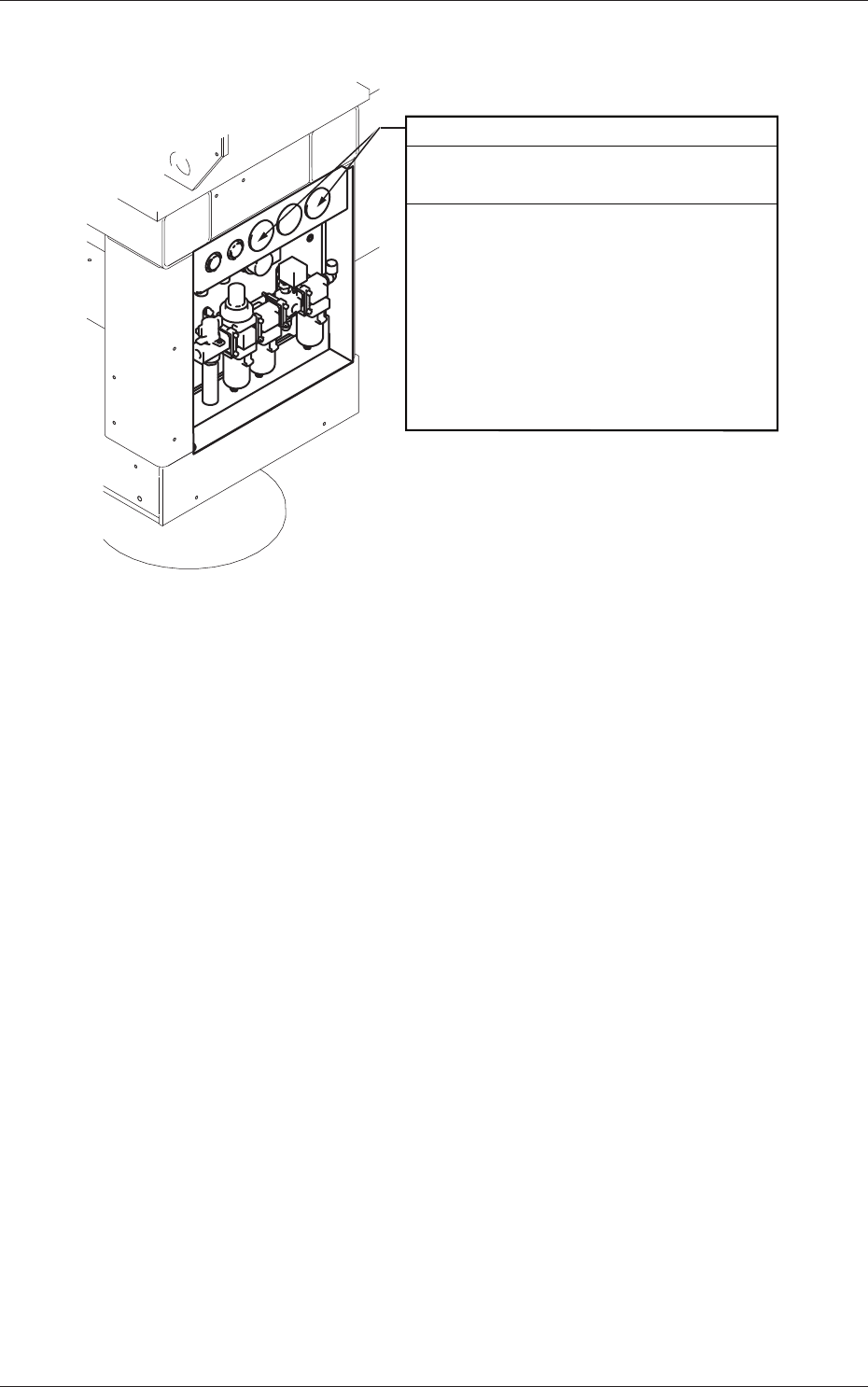

3.3.2 Vacuum System
Vacuum Pressure (2 Places)
Every Day Inspection
Required Time: 1 minute
Check t
he vacuum pressure visually.
Vacuum Valve Fully Closed:
Min. -93 kPa (Min. 70 cmHg) or more
Running:
Min. -60 kPa (Min. 45 cmHg) or more
When the vacuum pressure is insufficient,
air may be
leaking from the vacuum line or
the vacuum pump may have broken down.
Fig. 4A12
3.3 Inspection, Cleaning, and Lubrication Spots
1-220707-001

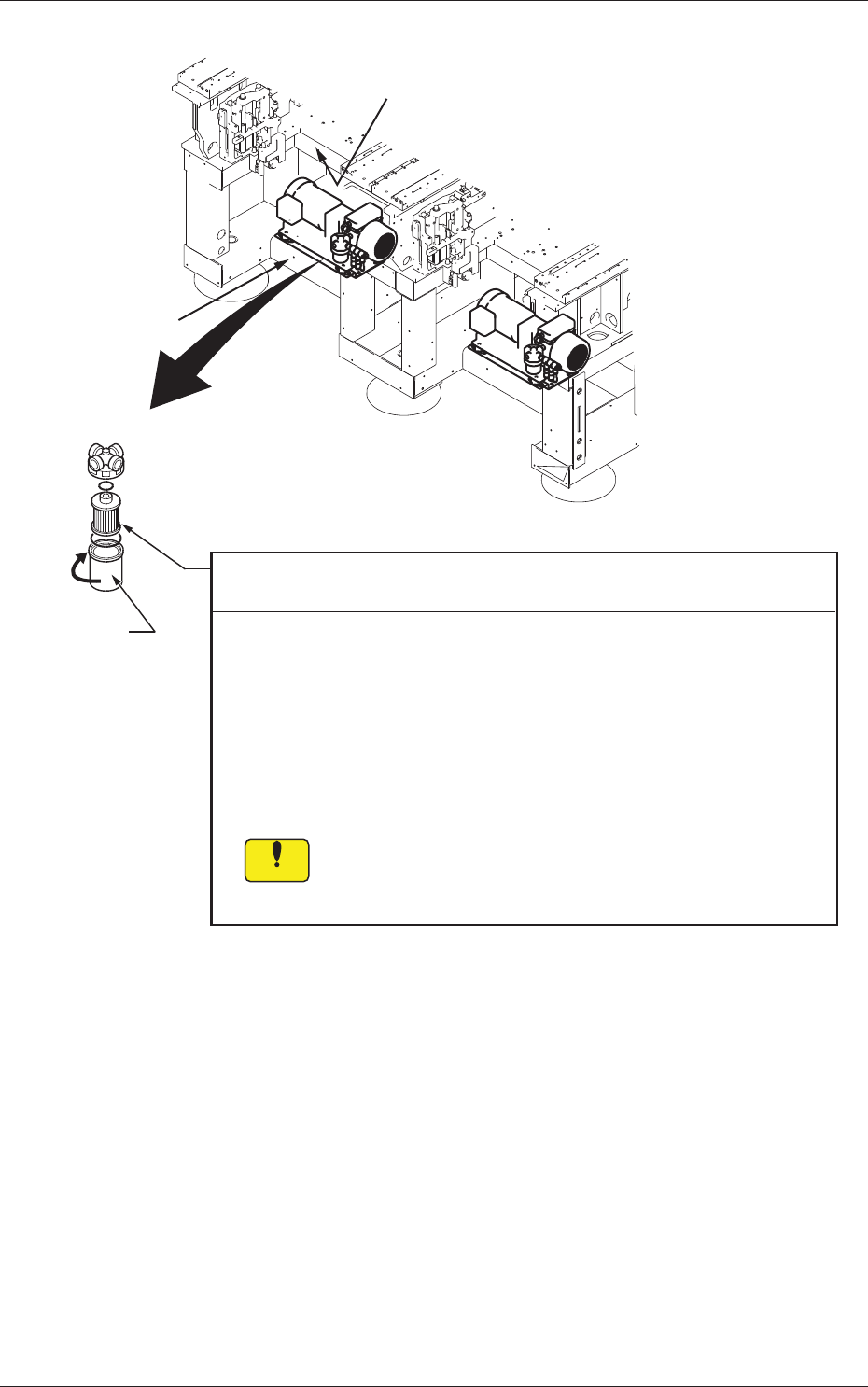

Filter Case
C
Setscrews
Setscrews
Filter
Every 3 Months Cleaning
(1) Remove four setscrews fastening the cover located at the lower area
of the front side of the machine and detach the cover.
(2) Rotate the filter case in A
rrow Direction C to detach and then take out
the filter.
(3) Blow air to the filter for c
leaning.
When the vacuum pressure has dropped during the operation, replace
the filter with a new one.
(4) Attach the cover and tighten the setscrews.
If a clearance is left between the main machine and the cover,
the tape will pop out from the clearance during the operation,
causing the machine to breakdown or generate an error.
Required Time: 10 minutes
Notice
Fig. 4A13
3.3 Inspection, Cleaning, and Lubrication Spots
