4.6 Cleaning of Linear Measure Sensor

(22) To check the results of the teaching operation, press the [Teach Result]

button.

The results are displayed, enabling you to check the offset data.

Fig.4A58 "LINEAR MEASURE CLEANING" Window

([Teach Result] Button Selected)

(23) Press the [End] button.

When the teaching operation is executed, a conﬁrmation dialog box

opens. Select either the [Yes] or the [No] button to determine whether

or not the data should be saved.

1-64

0707-001

4.7 Replacement Procedure of Vacuum Filters

Time of Replacement

Replace the ﬁ lters with new ones every three months.

Vacuum

Filters

Vacuum

Filters

Fig. 4A59 Filter Holder

Required Item

Filter Replacement Jig

Fig.4A60 Filter Replacement Jig

Replacement Procedure

Procedure

(1) Slide the ﬁlter fastener to the left and release the lock of the ﬁlter

holder.

Filter UnlockedFilter Locked

Fig. 4A61

Notice

Be sure to slide the ﬁlter fastener so that it does not interfere

with the wiring, etc.

1-65

0707-001

4.7 Replacement Procedure of Vacuum Filters

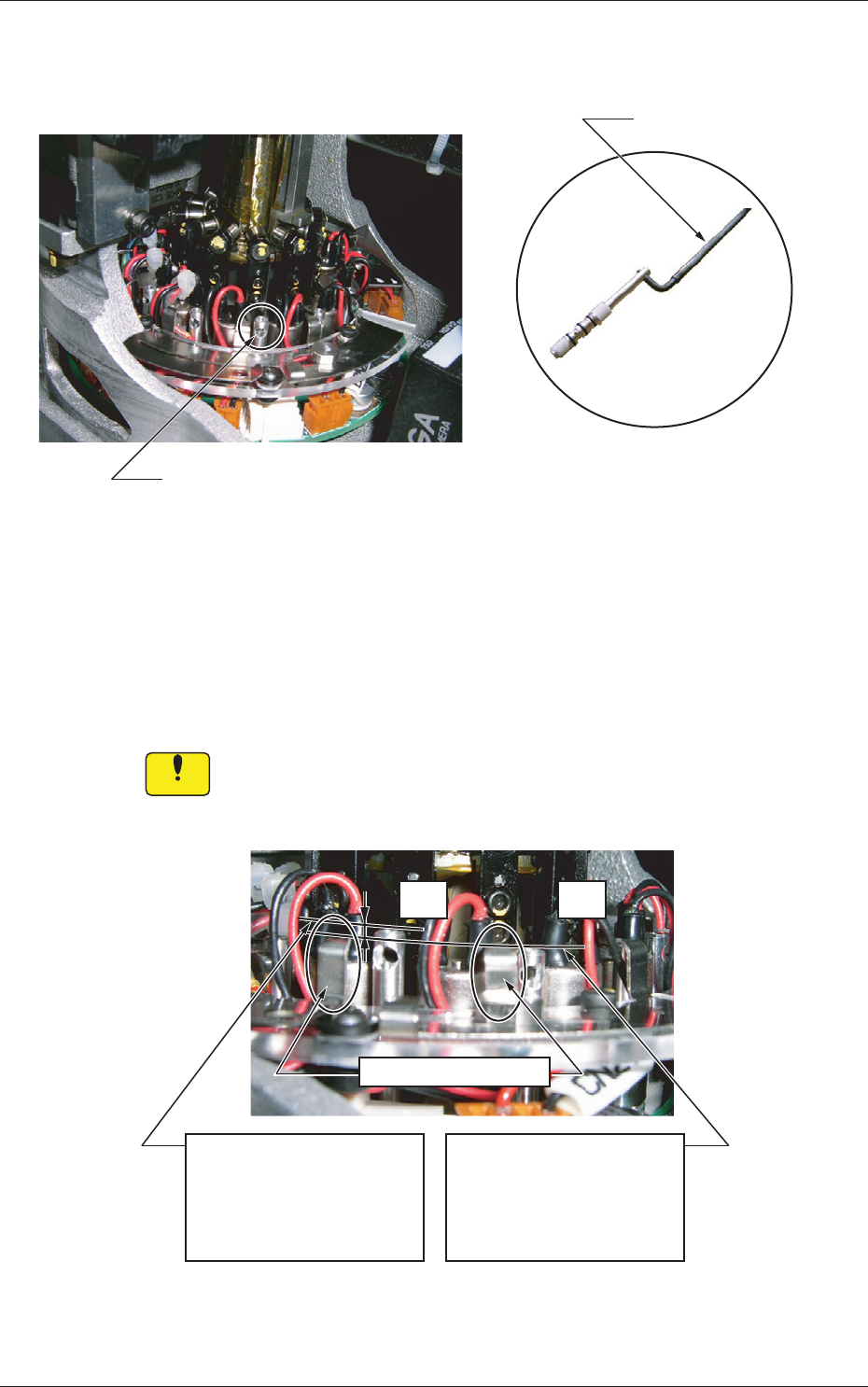

(2) Insert the ﬁlter replacement jig into the hole on the ﬁlter holder and pull

it up upward.

Hole on Filter Holder

Jig with pulled-out holder (filters)

Filter Replacement Jig

Fig.4A62

(3) Replace the two vacuum ﬁlters on the pulled-out holder with new ones.

(4) Direct the larger hole on the ﬁlter holder outward and insert the holder

with the ﬁlter replacement jig.

Be sure to push it deep enough until it stops (down to the lowest limit).

Notice

The holder should not interfere with the wirings for valves, etc. In

addition, the wires should not be caught in the upper and lower

areas of the top block.

Filter Fastening Claw

<NG: Insufficient Insertion>

The upper surface of the

filter holder is higher than

that of the filter fastening

claw.

<OK: Sufficient Insertion>

The filter fastening claw is

higher than that of the filter

holder.

Fig. 4A63
