3.13 Bad Mark Detection
The bad mark detection is performed as follows:
① Move the X-Y axes to the bad mark detection coordinate. In this case,
when starting movement, the LED of the bad mark sensor is simultaneously
turned on.
② When damping of the X-Y axes is complete, the status of the bad mark
sensor is read, and execution or skip of the circuit is recorded. Then, the
LED of the bad mark sensor is turned off.
③ Steps ① to ② are repeated from circuit No.1 to the last circuit.
The order of the circuits subject to bad mark detection is the same as the one
for the BOC mark. For non-matrix split boards, the order of the number is the
one for the circuit location input from the board data input. For matrix split
boards, it is to be counted in an increasing order of the X axis at the side of the
circuit close to the machine origin of the X axis. This is repeated in increasing
order of the Y axis from the machine origin side of the Y axis. (See the figure
below.)
- 111 -

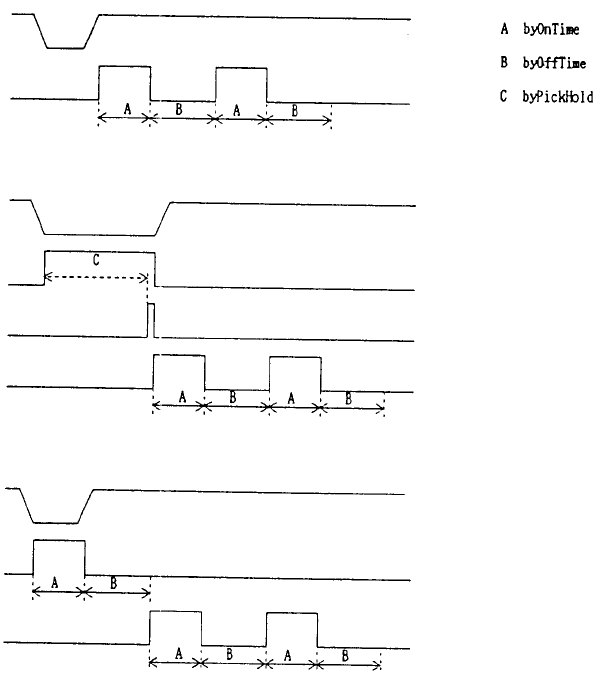

3.14 Feeder Drive Timing Chart
When standard feed is performed (Forward
only
)
Z Up
Down
Knock for feeder send
When pick attitude is to be held
Z down
Waiting time for arrival
Vacuum check
Knock for feeder send
When push up knock to the part is required (44 mm)
Z down
Knock for push up
Knock for feeder send
- 112 -
- 113 -
Operating duration of feeders
The number
of knock
cylinders
The number
of knocks
On-hold
duration
byOnTime
Off-hold
duration
byOffTime
Pick attitude
hold
duration
ByPickHold
The number
of push up
knock
cylinders
Applicable feeder
1 1 20×10 msec 20×10 msec 0×10 msec 0 Tape width 8 mm,
Feed pitch 2 mm
Tape width 8 mm,
Feed pitch 4 mm
Tape width 12 mm,
Feed pitch 4 mm
1 1 40 20 0 0 Tape width 12 mm,
Feed pitch 8 mm
Tape width 12 mm,
Feed pitch 12 mm
Tape width 16 mm,
Feed pitch 4 mm
Tape width 16 mm,
Feed pitch 8 mm
Tape width 16 mm,
Feed pitch 12 mm
2 1 30 20 0 0 Tape width 24 mm,
Feed pitch 8 mm
2 2 30 20 0 0 Tape width 24 mm,
Feed pitch 12 mm
Tape width 24 mm,
Feed pitch 16 mm
Tape width 24 mm,
Feed pitch 20 mm
Tape width 32 mm,
Feed pitch 12 mm
Tape width 32 mm,
Feed pitch 16 mm
Tape width 32 mm,
Feed pitch 20 mm
2 3 30 20 0 0 Tape width 32 mm,
Feed pitch 24 mm
2 7 30 20 0 0 Tape width 32 mm,
Feed pitch 28 mm
2 4 30 20 0 0 Tape width 32 mm,
Feed pitch 32 mm
0 0 80 0 0 0 Stick feeder TYPE 1
0 0 80 0 0 0 Stick feeder TYPE 2
0 0 70 0 0 0 Stick feeder TYPE 3
0 0 130 0 0 0 Stick feeder TYPE 4
0 0 150 0 0 0 Stick feeder TYPE 5
0 0 150 0 0 0 Stick feeder TYPE 6
0 0 150 0 0 0 Stick feeder TYPE 7
2 4 30 20 0 0 Tape width 32 mm, Paper
(adhesive) tape
3 2 30 20 0 1 Tape width 44 mm
NOTE:
The number of push up cylinders is the number of the push up knock cylinders
next to the knock pin used for feeding.
