- 1 6 - (Single-phase INPUT) KE-750,760 E9102725010 Main frame connection diagram Condenser unit Automatic width control driver
- 15 -
Model wise page selection table
COMMON KE-750 ONLY KE-760 ONLY
2/28 (0 – 5)
K
3/28 (0 –5)
K
4/28 (11 –15)
K
5/28 (21 – 25)
K
6/28 (31 – 35)
K
7/28 (41 – 45)
K
8/28 (51 – 55)
K
9/28 (61 – 65)
K
10/28 (71 – 75)
K
11/28 (81 – 85)
K
12/28 (91 – 95)
K
13/28 (101 – 105)
K
14/28 (111 – 115)
K
15/28 (121 – 125)
K
16/28 (131 – 135)
K
17/28 (141 – 145)
K
18/28 (151 – 155)
K
19/28 (161 – 165)
K
20/28 (171 – 175)
K
21/28 (181 – 185)
K
22/28 (191 – 195)
K
23/28 (201 – 205)
K
24/28 (211 – 215)
K
25/28 (221 – 225)
K
26/28 (231 – 235)
K
27/28 (241 – 245)
K
28/28 (251 – 255)
K
KE-750,760
E9102725010
Main frame connection diagram
Model
Page (Location)
- 16 -

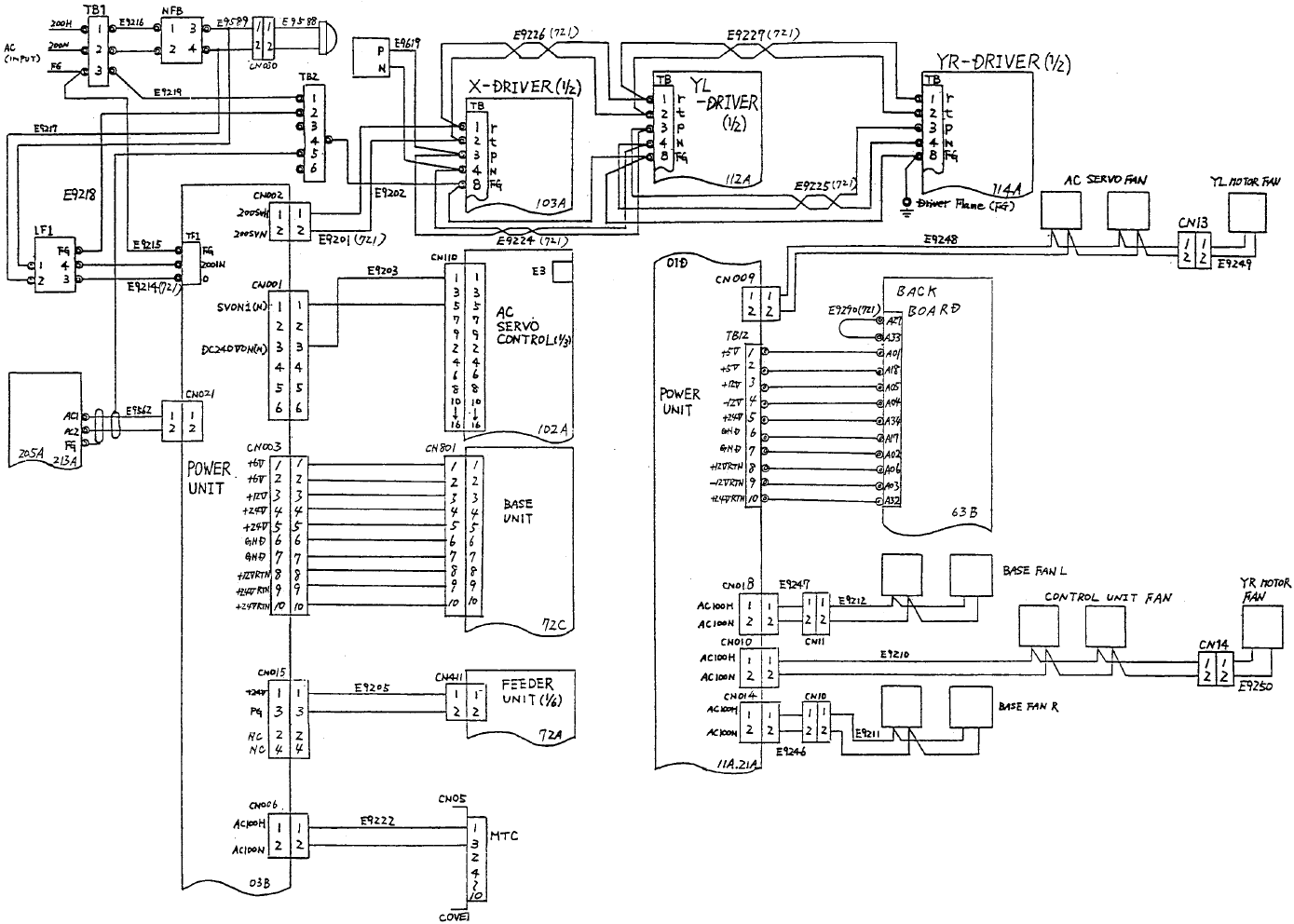

(Single-phase INPUT)
KE-750,760
E9102725010
Main frame connection diagram
Condenser unit
Automatic width
control driver
- 17 -

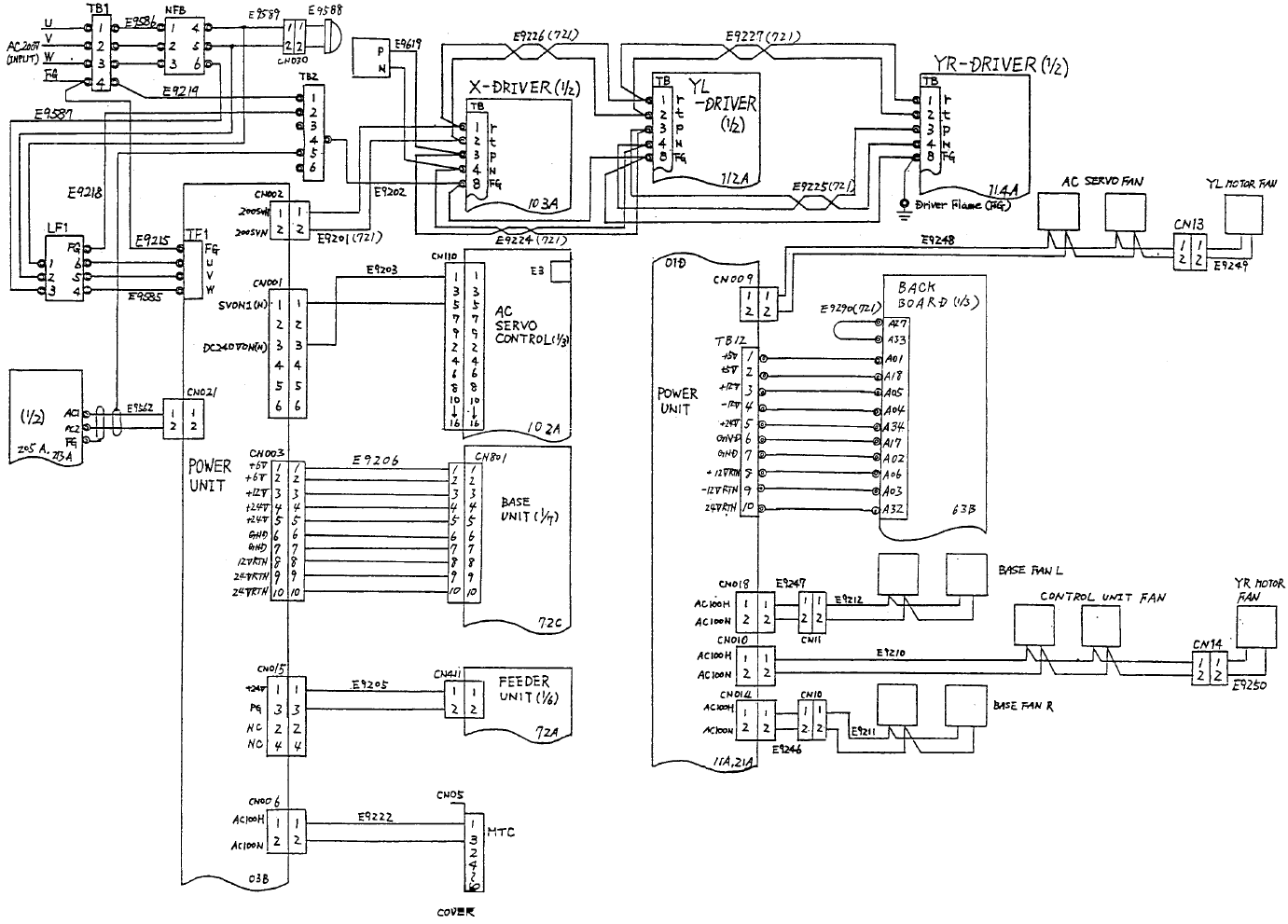

(Three-phase INPUT)
KE-750,760
E9102725010
Main frame connection diagram
Condenser unit
Automatic width
control driver
