- 6 2 - B.A.IN Ready OUT I N sensor WAIT sensor STOP sensor C.OUT sensor OUT sensor B U U P sensor B U D N sensor Stopper Backup External shape cramp 1 ( X ) I N motor CENT motor OUT motor Ready I N B.A.OUT External shap…
- 61 -

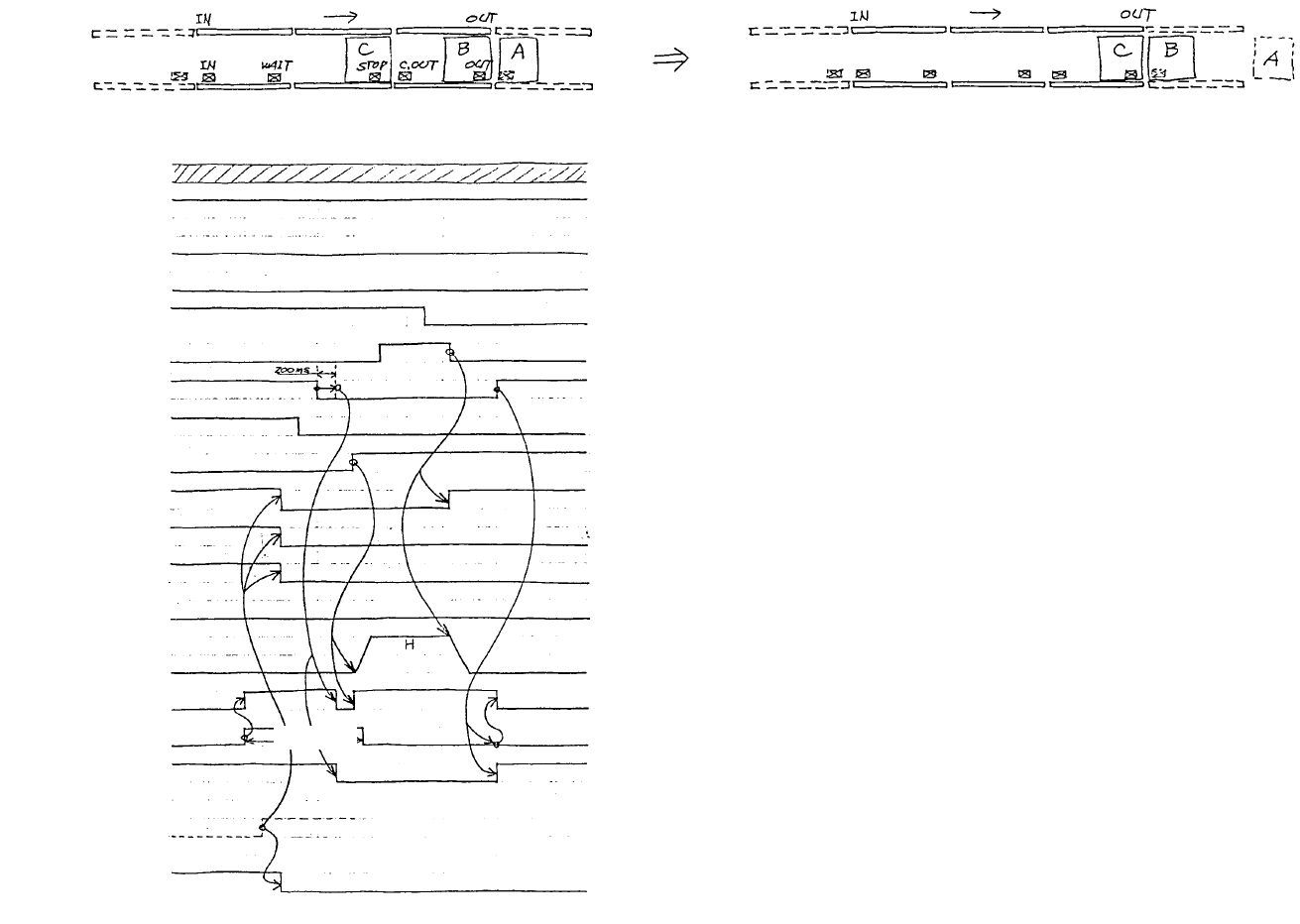

This chart shows that production of board C has been completed in a half way to carry out board B.
(9)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
20 ms or more
- 62 -
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
External shape
cramp 2 (Y)
This chart shows that the next stage is set ready when board C is set in standby on the OUT sensor.
(10)
20 ms or more
- 63 -

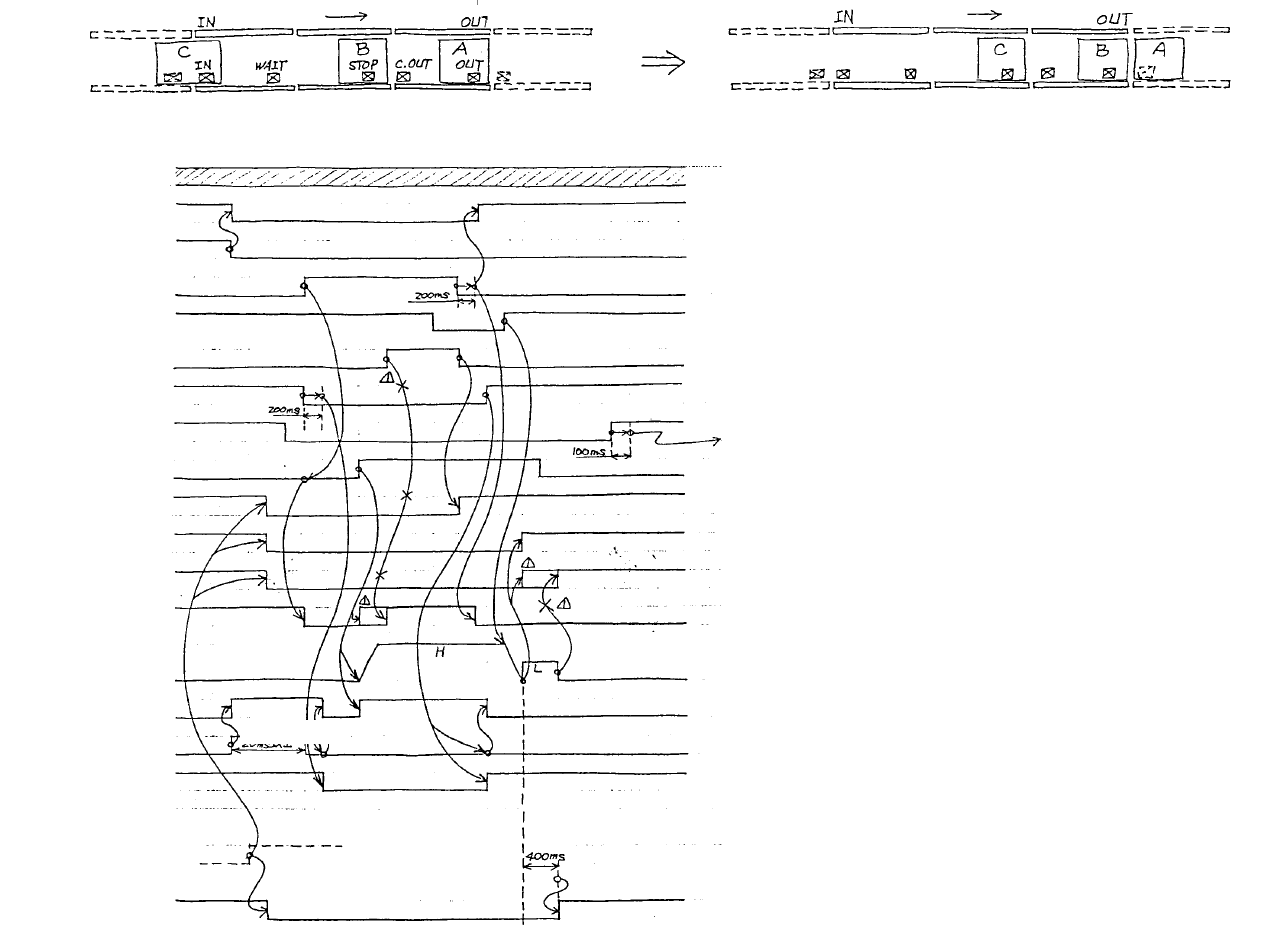

This chart shows that production of board B has been completed almost the same time as the next stage is set in ready an
d
starts carr
y
in
g
out when the board is carried from the
p
revious sta
g
e to the IN buffer.
(11)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
20 ms or more
Carriage, completed
