KE-750_MAINTE.pdf - 第66页
- 6 3 - This cha rt shows that production o f board B has been completed almost the same time a s the next stage i s set in ready a n d starts carr y in g out when the board is carried from the p revious sta g e to the I…
- 62 -
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
External shape
cramp 2 (Y)

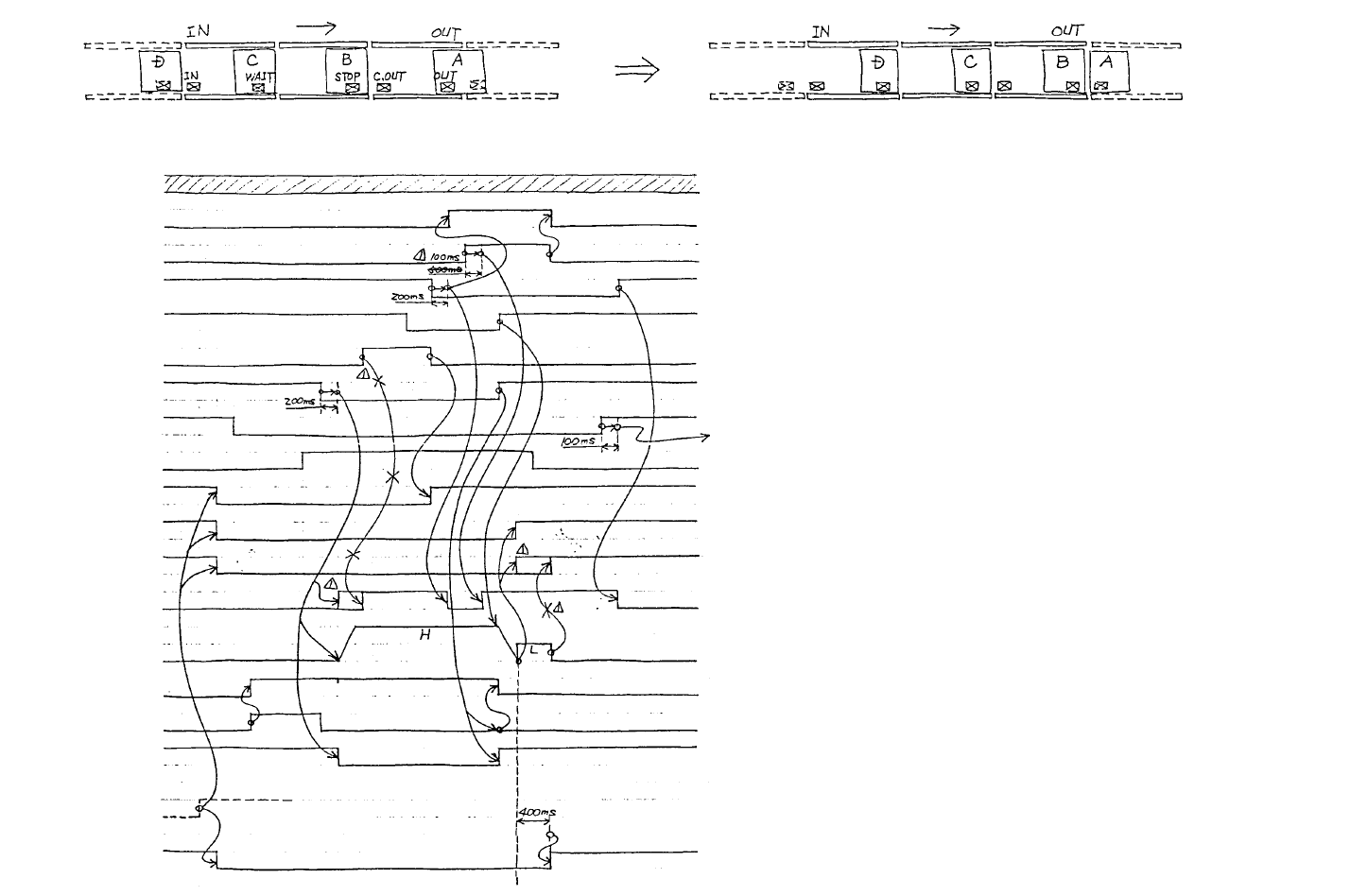

This chart shows that the next stage is set ready when board C is set in standby on the OUT sensor.
(10)
20 ms or more
- 63 -
This chart shows that production of board B has been completed almost the same time as the next stage is set in ready an
d
starts carr
y
in
g
out when the board is carried from the
p
revious sta
g
e to the IN buffer.
(11)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
20 ms or more
Carriage, completed
- 64 -
This chart shows that the next stage is set ready when production of board B has been completed and cramp is started to be released.
(12)
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)
Carriage, completed
