- 52 -
[Idle mode]

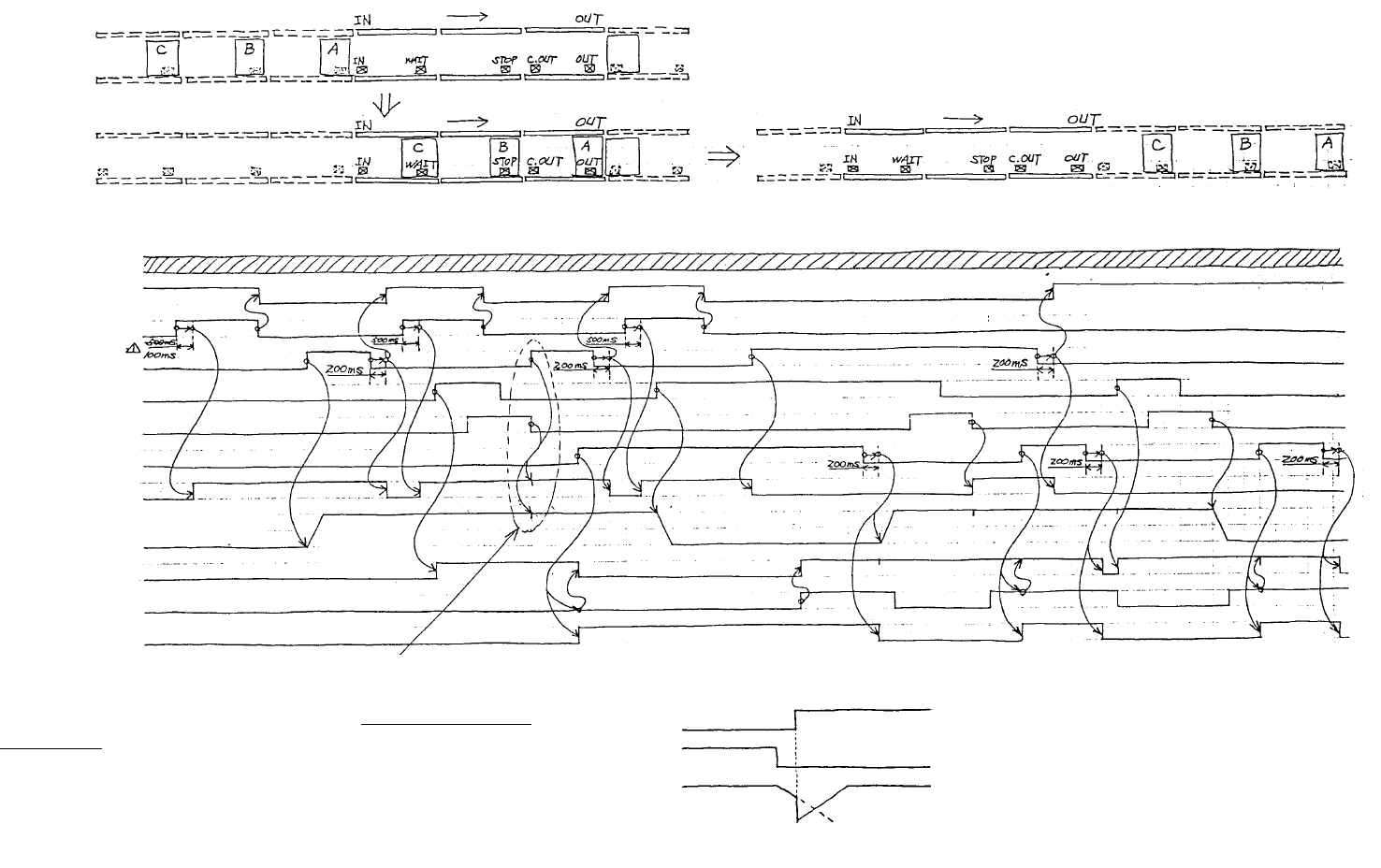

This chart shows that boards A, B, and C are set buffered in the unit, and then carried out.
(2)
B,A,IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
IN motor
CENT motor
OUT motor
Ready IN
B,A,OUT
When a board is carried out from the centering station, if the nex
t
board turns on the WAIT sensor on during deceleration of the
CENT motor, the C.OUT sensor turns off to immediately stop th
e
CENT motor, and acceleration starts again.
[Key operation]
In idle mode, all stations can be set as buffer.
However, only one board can be set per buffer,
and board carriage is performed when the
preceding buffer is set empty. Errors and manual
operations are equal to those for carriage
(automatic mode) in production.
› For PPMC control, an acceleration command cannot
be issued during deceleration.
WAIT sensor
C.OUT sensor
CENT motor
- 53 -
P1 P2
T1 T2
l1 l2
L
H
O
20.8 mm
H≒400 mm/s fi ≒1587 pps
L≒56 mm/s fi ≒223 pps
Resolution of the CENT motor = 0.252 mm/P
Where T1 = 130 ms
Where T2 = 430 ms
Board
Stopper
Stop sensor
Adjust the position of the STOP sensor so that the
board touches the stopper at approximate this speed.
l1 = = 26 mm
400 · 0.13
2,
P1 = ≒103 pulse
26
0.252
l2 = 56 · 0.43≒24 mm , P2 = ≒96 pulse
24
0.252
(1)

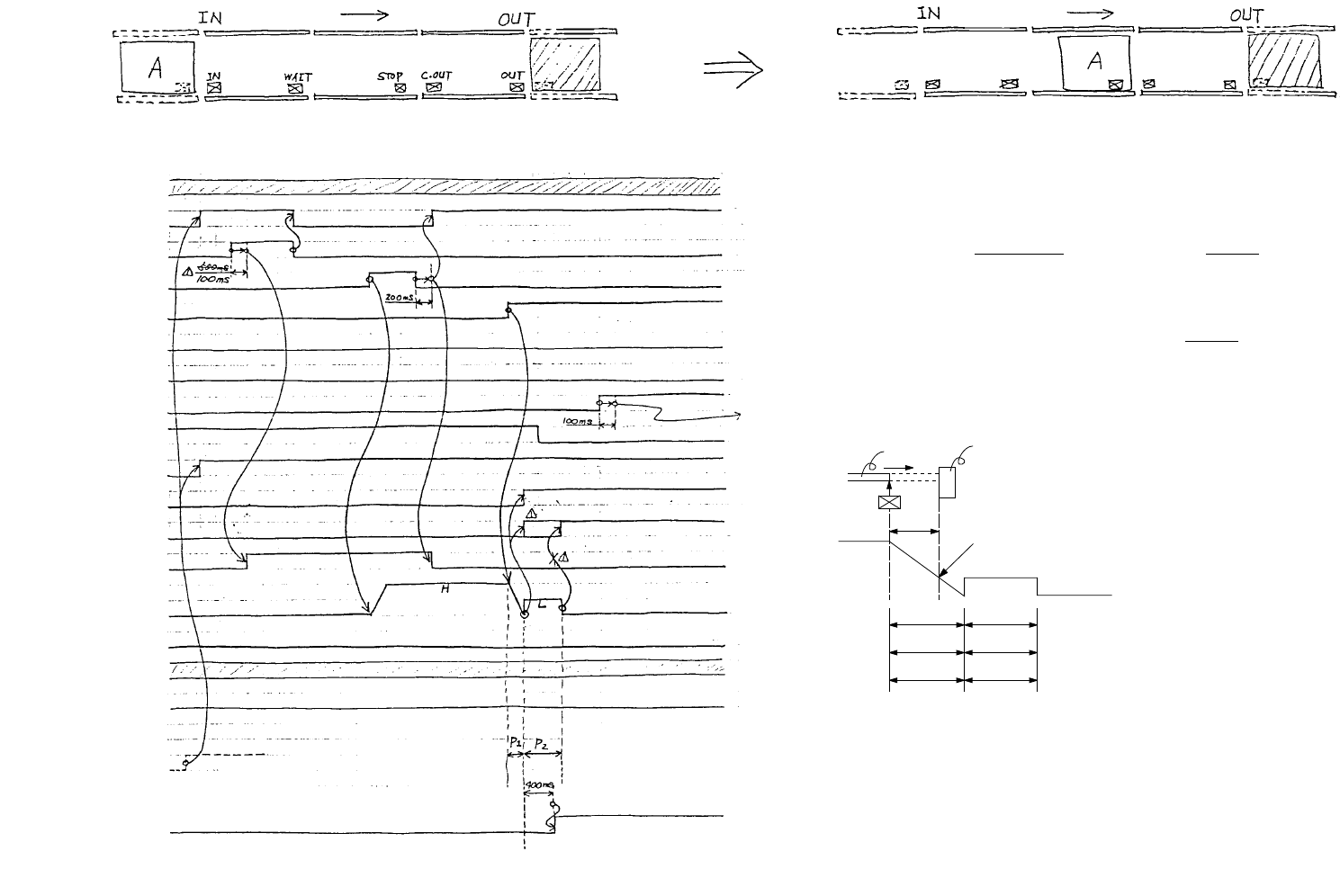

Carrying in the first board for continuous production
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production (Carriage
start)
External shape
cramp 2 (Y)
Carriage, completed
CENT motor speed
- 54 -
B.A.IN
Ready OUT
IN sensor
WAIT sensor
STOP sensor
C.OUT sensor
OUT sensor
BU UP sensor
BU DN sensor
Stopper
Backup
External shape
cramp 1 (X)
IN motor
CENT motor
OUT motor
Ready IN
B.A.OUT
Continuous
production
(Carriage start)
External shape
cramp 2 (Y)

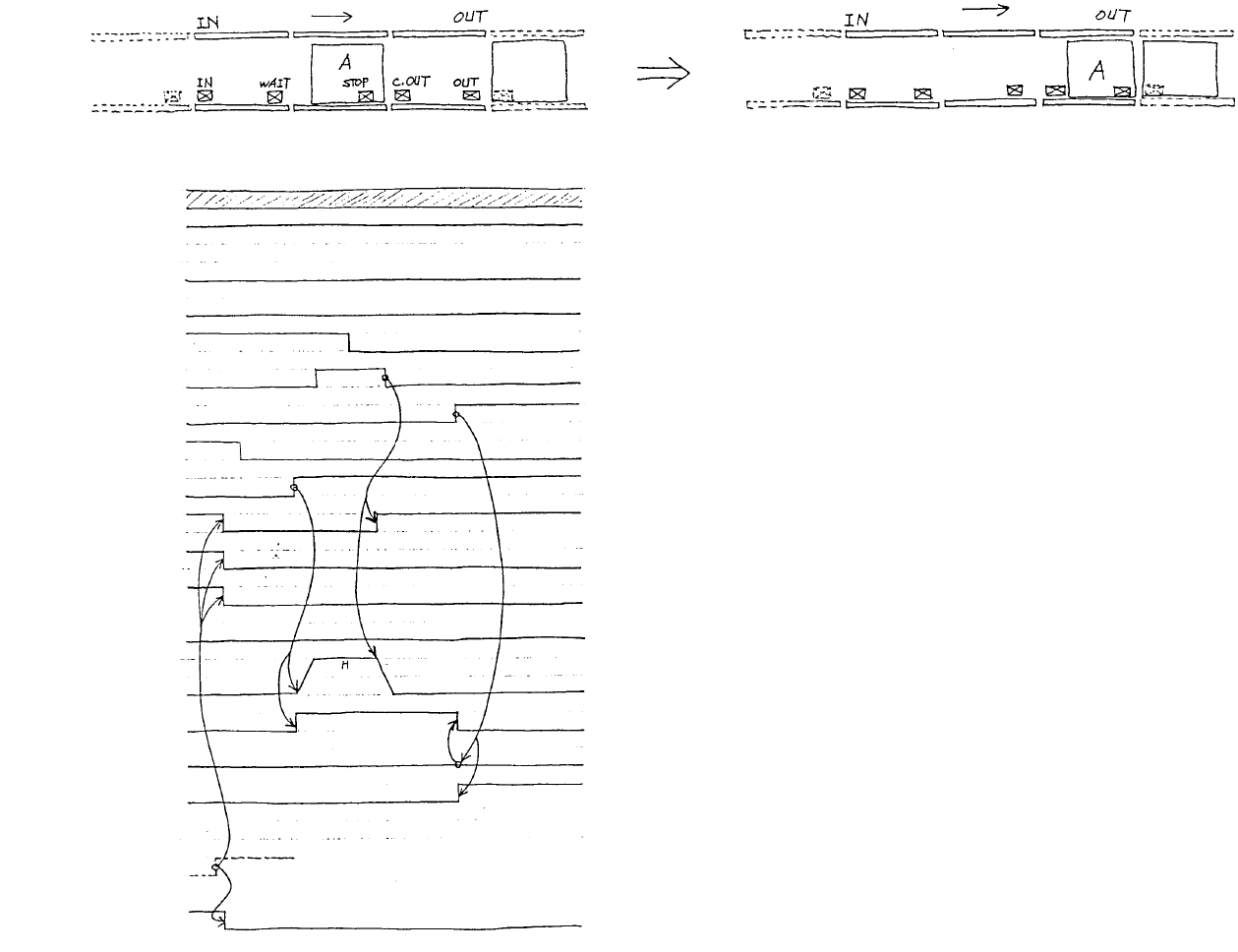

This chart shows that board A whose production has been completed is carried out when the next stage is set busy.
