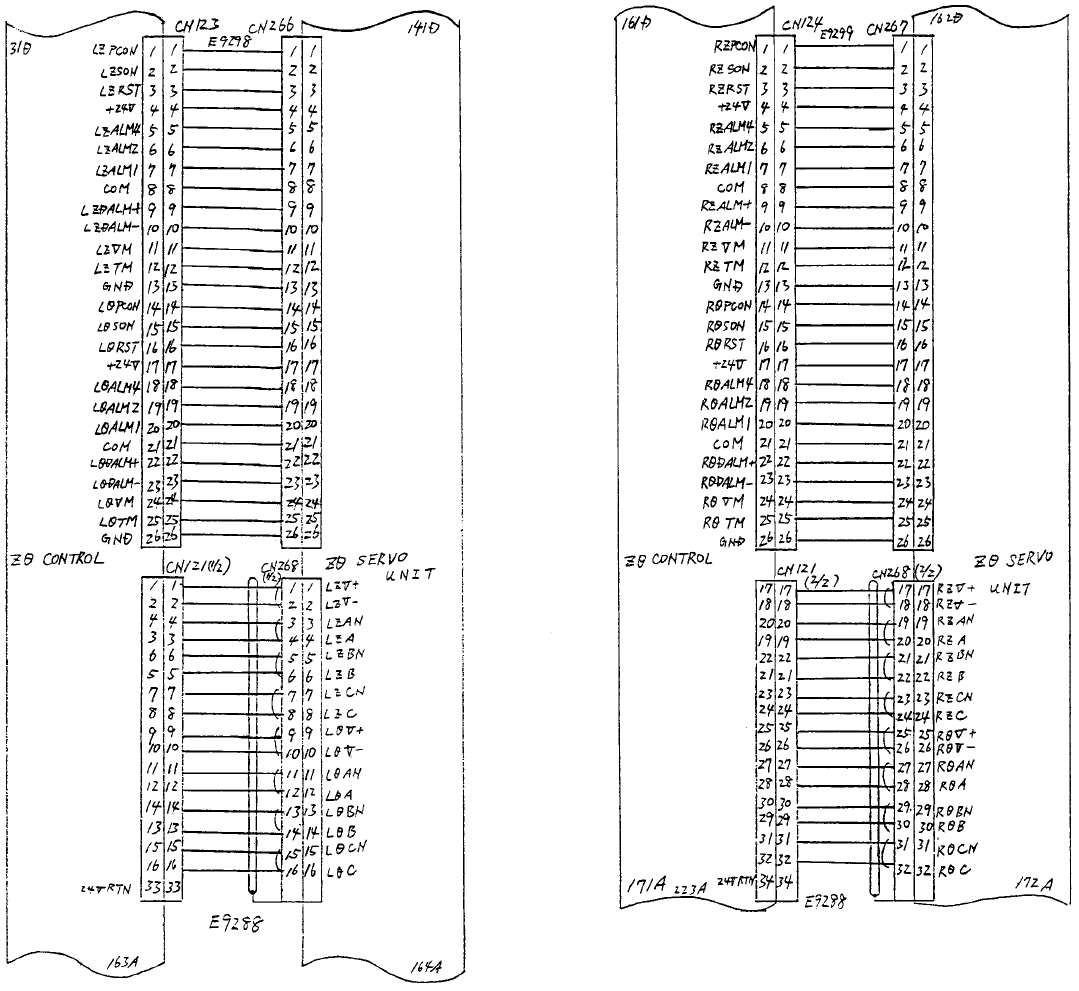

- 3 3 - KE-750,760 E9102725010 Main frame connection d i agram Twisted pair Twisted pair
- 32 -
(KE-760 ONLY)
KE-750,760
E9102725010
Main frame connection diagram
BLUE/BLACK
BLUE
GREEN
GREEN/BLACK
YELLOW/BLACK
YELLOW
RED
BLACK
SHIELD
SHIELD
SHIELD
Twisted pair
Twisted pair
Twisted pair
Twisted pair
- 33 -

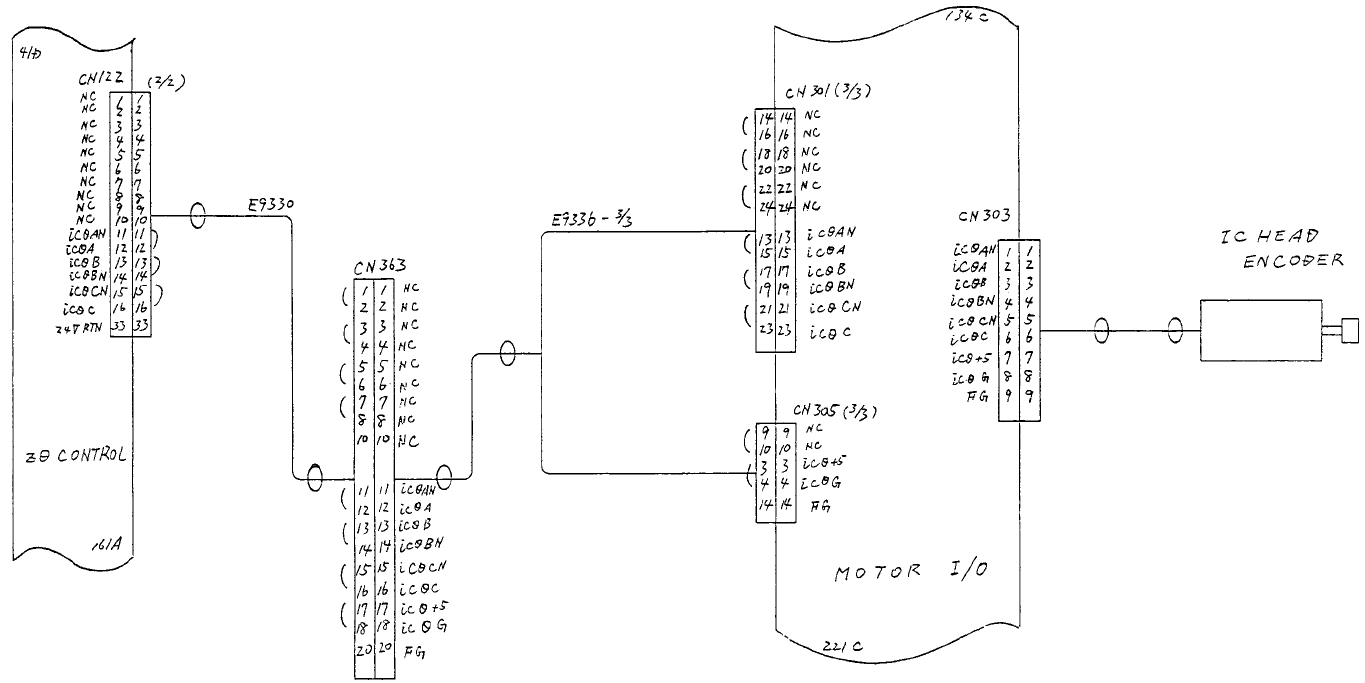

KE-750,760
E9102725010
Main frame connection diagram
Twisted
pair
Twisted
pair
- 34 -
(KE-750 ONLY)
KE-750,760
E9102725010
Main frame connection diagram
Twisted pair
