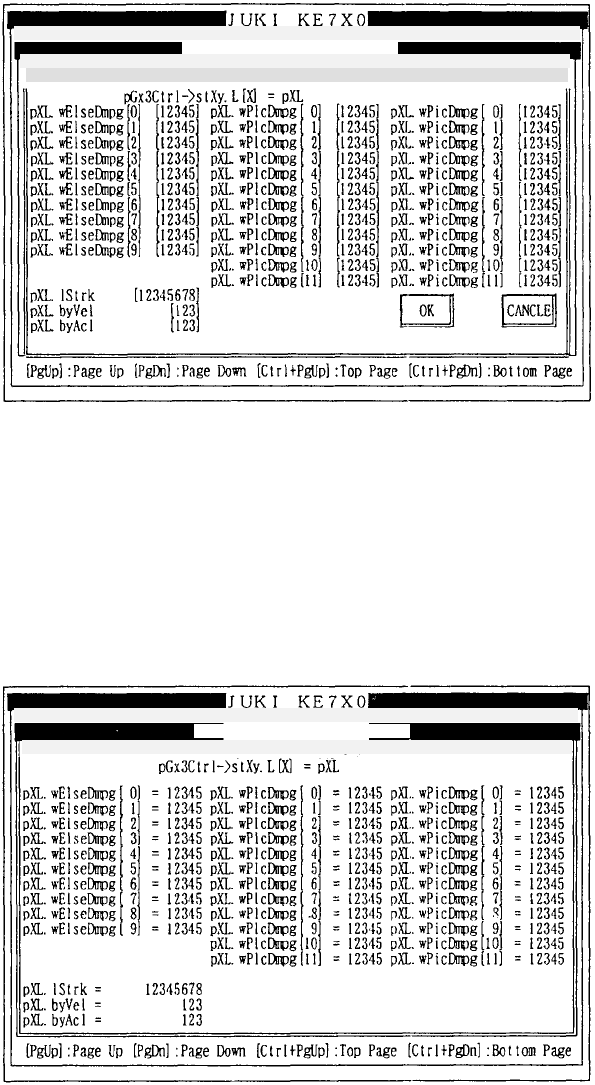

4.2.3 XY (Low speed)
(1) INPUT
Selecting [3/Low speed] of [7/XY] from [1/Input] on the menu bar displays
the input screen of mechanism control parameters.
X = 0 – 9
How to set
Enter the desired value in decimal notation.
Refer to 3.3 (1) for operation on the screen.
(2) DISPLAY
Selecting [3/Low speed] of [7/XY] from [2/Display] on the menu bar displays
the display screen of mechanism control parameters.
Refer to 3.3 (2) for operation on the screen.
Mechanical control
p
arameter
Mechanical control
p
arameter
1/File 2/Data in
p
ut 3/Prod. 4/Setu
p
5/Mainte. 6/Print 7/Others
1/File 2/Data in
p
ut 3/Prod. 4/Setu
p
5/Mainte. 6/Print 7/Others 9/
E
1/In
p
ut 2/Dis
p
la
y
3/Print 9/Exit
1/In
p
ut 2/Dis
p
la
y
3/Print 9/Exit XY
(
low s
p
eed
)
Pa
g
e
(
1
/
XY
(
low s
p
eed
)
- 17 -
4.2.4 Others of XY
(1) INPUT
Selecting [4/Others] of [7/XY] from [1/Input] on the menu bar displays the
input screen of mechanism control parameters.
x = 0 – 14
How to set
Enter the desired value in decimal notation.
Refer to 3.3 (1) for operation on the screen.
(2) DISPLAY
Selecting [4/Others] of [7/XY] from [2/Display] on the menu bar displays the
display screen of mechanism control parameters.
Refer to 3.3 (2) for operation on the screen.
Mechanical control parameter
Mechanical control parameter
1/File 2/Data in
p
ut 3/Prod. 4/Setu
p
5/Mainte. 6/Print 7/Others
1/File 2/Data in
p
ut 3/Prod. 4/Setu
p
5/Mainte. 6/Print 7/Others
1/In
p
ut 2/Dis
p
la
y
3/Print 9/Exit
1/Input 2/Display 3/Print 9/Exit XY (Others) Page
XY
(
Others
)
- 18 -

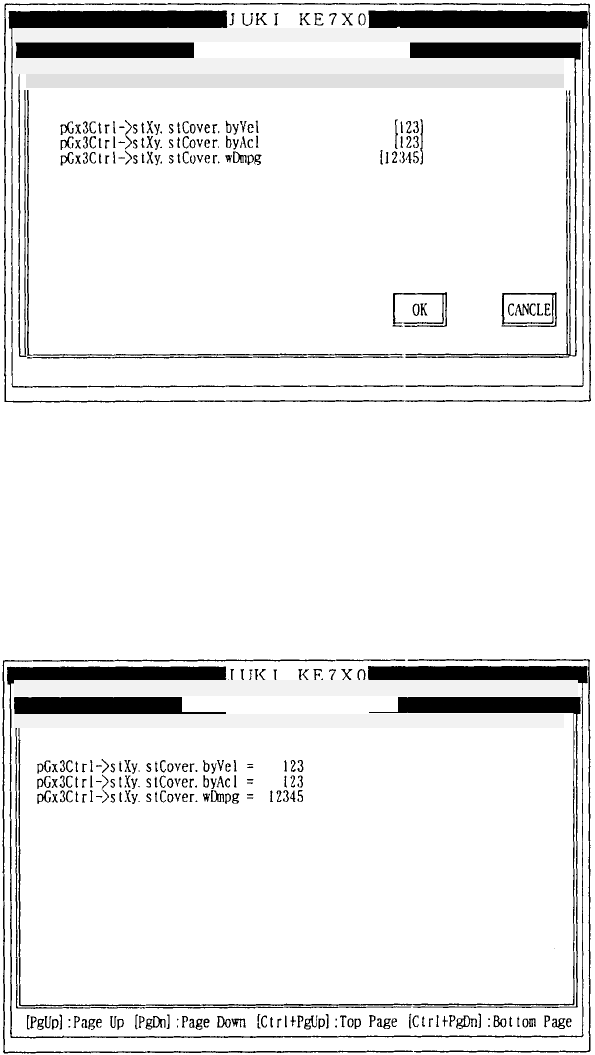

4.2.5 XY (Cover open)
(1) INPUT
Selecting [5/Cover open] of [7/XY] from [1/Input] on the menu bar displays
the input screen of mechanism control parameters.
How to set
Enter the desired value in decimal notation.
Refer to 3.3 (1) for operation on the screen.
(2) DISPLAY
Selecting [5/Cover open] of [7/XY] from [2/Display] on the menu bar
displays the display screen of mechanism control parameters.
Refer to 3.3 (2) for operation on the screen.
Mechanical control parameter
Mechanical control parameter
1/File 2/Data in
p
ut 3/Prod. 4/Setu
p
5/Mainte. 6/Print 7/Others
1/File 2/Data input 3/Prod. 4/Setup 5/Mainte. 6/Print 7/Others
1/In
p
ut 2/Dis
p
la
y
3/Print 9/Exit
1/In
p
ut 2/Dis
p
la
y
3/Print 9/Exit XY
(
Cover o
p
en
)
P
a
XY
(
Cover o
p
en
)
