No. of digits No. of arrays Item Setting range Minimum value Maximum value Limit value of laser stain check - 32 -

100%1 / 228

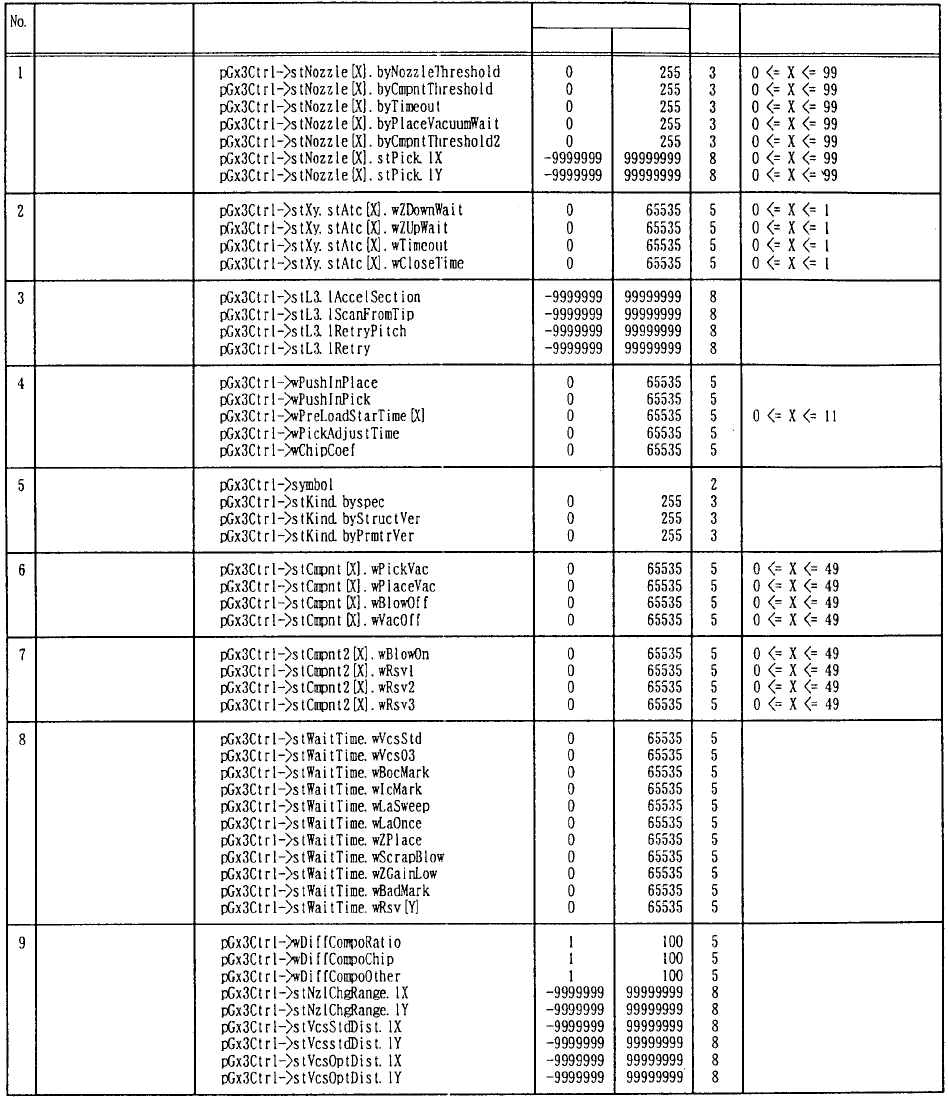

(3) Others
No.
of
digits
Item
No. of arrays
Setting range
Maximum
value
Minimum
value
Nozzle information
A
TC
Laser read locator
Others
Version information
Vacuum waiting time
(ms) per part type
Vacuum waiting time
2 (ms) per part type
Other waiting times
(ms)
Others 2
- 31 -
No.
of
digits
No. of arrays
Item
Setting range
Minimum
value
Maximum
value

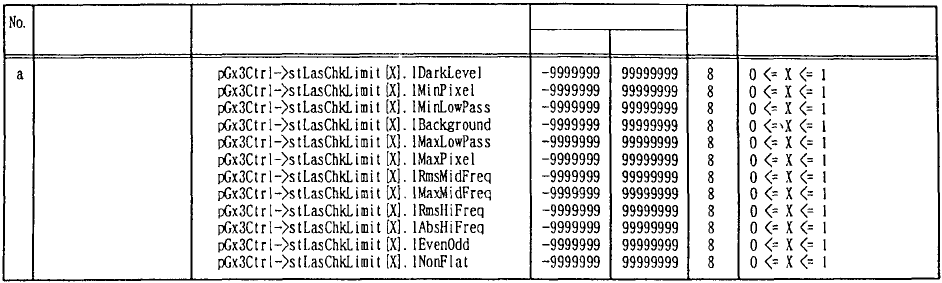

Limit value of laser
stain check
- 32 -
- 33 -
6. MEANING OF SET VALUES OF MECHANISM
CONTROL PARAMETERS (TABLE 2)
(1) Head N
No. Item Abbreviation Meaning
Meaning of
N, X, and Y
1 Head (Z axis)
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. dwVel
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. dwAcl
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. wDmpg
pHZM [X] [Y].dwVel or
[X] [Y]. dwVel, [X] [Y]
pHZM [X] [Y]. dwAcl or
[X] [Y]. dwAcl, [X] [Y]
pHZM [X] [Y] wDmpg or
[X] [Y]. wDmpg, [X] [Y]
Maximum speed of Z axis movement
Acceleration of Z axis movement
Damping waiting time of Z axis movement
N is head
number.
X is operation
type.
(*NOTE 1)
Y is part type.
(*NOTE 2)
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. dwVel
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. dwAcl
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. wDmpg
pGx3Ctrl->stHead [N]. stZ. stCoverOpen. dwVel
pGx3Ctrl->stHead [N]. stZ. stCoverOpen. dwAcl
pGx3Ctrl->stHead [N]. stZ. stCoverOpen. wDmpg
pGx3Ctrl->stHead [N]. stZ lOnePls
pGx3Ctrl->stHead [N]. stZ lMdlSp
pGx3Ctrl->stHead [N]. stZ lLowSp
pGx3Ctrl->stHead [N]. lZDownEnbY
Maximum speed for operation other than Z axis
PTP
Acceleration for operation other than Z axis PTP
Damping waiting time for operation other than Z
axis PTP
Maximum speed when cover open
Acceleration when cover open
Damping waiting time when cover open
Internal data increase of Z axis per pulse of Z axis
Ratio of medium speed of Z axis to high speed
(%)
Ratio of low speed of Z axis to high speed (%)
Y coordinate to which Z axis can go down
N is head
number.
X is operation
type.
(*NOTE 3)
2 Head (θ axis)
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. dwVel
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. dwAcl
pGx3Ctrl->stHead [N]. stZ. stMove [X] [Y]. wDmpg
pHTM [X] [Y].dwVel or
[X] [Y].dwVel,[X] [Y]
pHTM [X] [Y].dwAcl or
[X] [Y].dwAcl,[X] [Y]
pHTM [X] [Y] wDmpg or
[X] [Y].wDmpg,[X] [Y]
Maximum speed of θ axis movement
Acceleration of θ axis movement
Damping waiting time of θ axis movement
N is head
number.
X is operation
type.
(*NOTE 4)
Y is part type.
(*NOTE 5)
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. dwVel
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. dwAcl
pGx3Ctrl->stHead [N]. stZ. stEtcMove [X]. wDmpg
pGx3Ctrl->stHead [N]. stZ. stNoCompo. dwVel
pGx3Ctrl->stHead [N]. stZ. stNoCompo. dwAcl
pGx3Ctrl->stHead [N]. stZ. stNoCompo. wDmpg
pGx3Ctrl->stHead [N]. stZ lOnePls
pHTEM [X]. dwVel
pHTEM [X]. dwAcl
pHTEM [X]. wDmpg
Maximum speed for operation other than θ axis
PTP
Acceleration for operation other than θ axis PTP
Damping waiting time for operation other than θ
axis PTP
Maximum speed of θ axis without parts
Acceleration of θ axis without parts
Damping waiting time of θ axis without parts
Internal data increase of θ axis per pulse of θ axis
N is head
number.
X is operation
type.
(*NOTE 6)
3 Head (Laser)
pGx3Ctrl->stHead [N]. stLas. lHoldoffCnt [X]
Laser hold off count
N is head
number.
X: (*NOTE 7)
pGx3Ctrl->stHead [N]. stLas. wWaitCalcT [X] Laser computation waiting time X: (*NOTE 8)
pGx3Ctrl->stHead [N]. stLas. lPreLoadAngle [X]
pGx3Ctrl->stHead [N]. stLas. lAlgoThresh [X]
Laser pre-load angle
Laser algorithm change threshold
X: (*NOTE 9)
